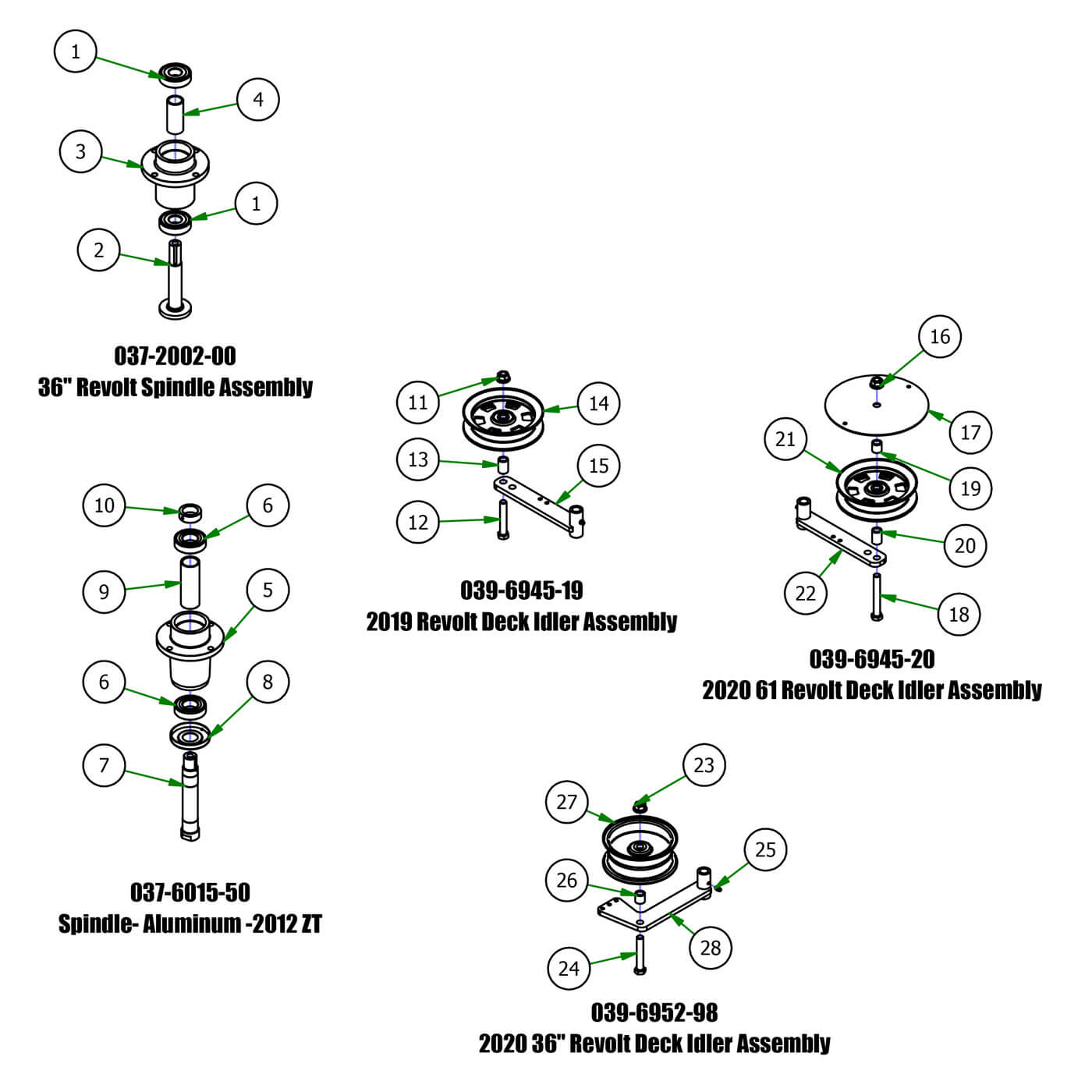

Spindle & Idler Assembly
Parts Index
- 1 MZ Spindle Bearing (Qty 2)
- 2 36" Revolt Spindle Shaft (Qty 1)
- 3 MZ Spindle Housing (Qty 1)
- 4 MZ Spindle Spacer-Component (Qty 1)
- 5 Aluminum Spindle Housing-2010 (Qty 1)
- 6 OBSOLETE USE 037-6029-00 (Qty 2)
- 7 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 8 Dust Cover for 037-8000-00 - (Qty 1)
- 9 Tube Spacer for Spindle Shaft (Qty 1)
- 10 Collar Spacer - Top of Spindle (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 12 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 13 .502x.750x1.130 Length Spacer (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 15 Idler Bracket (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 61" Revolt Idler Pulley Cover--Black (Qty 1)
- 18 1/2-13 X 3.75 Hex Bolt-Grade 5 (Qty 1)
- 19 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 20 .502x.750x1.130 Length Spacer (Qty 1)
- 21 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 22 Idler Bracket (Qty 1)
- 23 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 24 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 25 1/4-28 Threaded Grease Fitting (Qty 1)
- 26 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 27 Double Bearing Flat Idler (Qty 1)
- 28 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
-
1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-

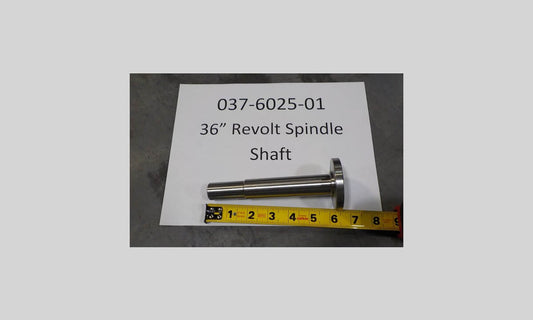

2#037-6025-01
36" Revolt Spindle Shaft
Qty Used: 1Regular price $59.00 USDRegular priceUnit price per
-

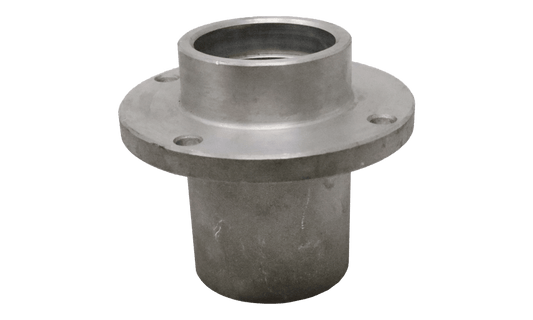

3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-

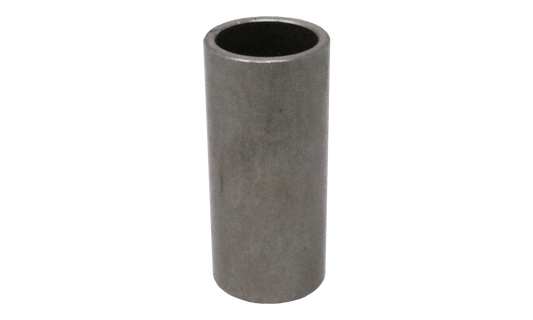

4#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
5#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
6#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
7#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
8#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
9#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
10#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
111623#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1224#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1320#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
1421#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
1522#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
17#014-4005-00
61" Revolt Idler Pulley Cover--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
18#018-0051-00
1/2-13 X 3.75 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
1926#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
25#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-

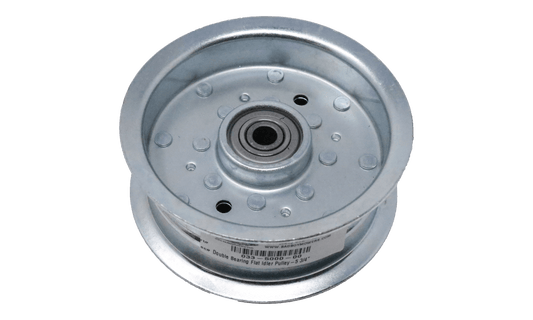

27#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
28#039-6952-00
2020 SD/36" Deck Idler Weldment--Plated
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
