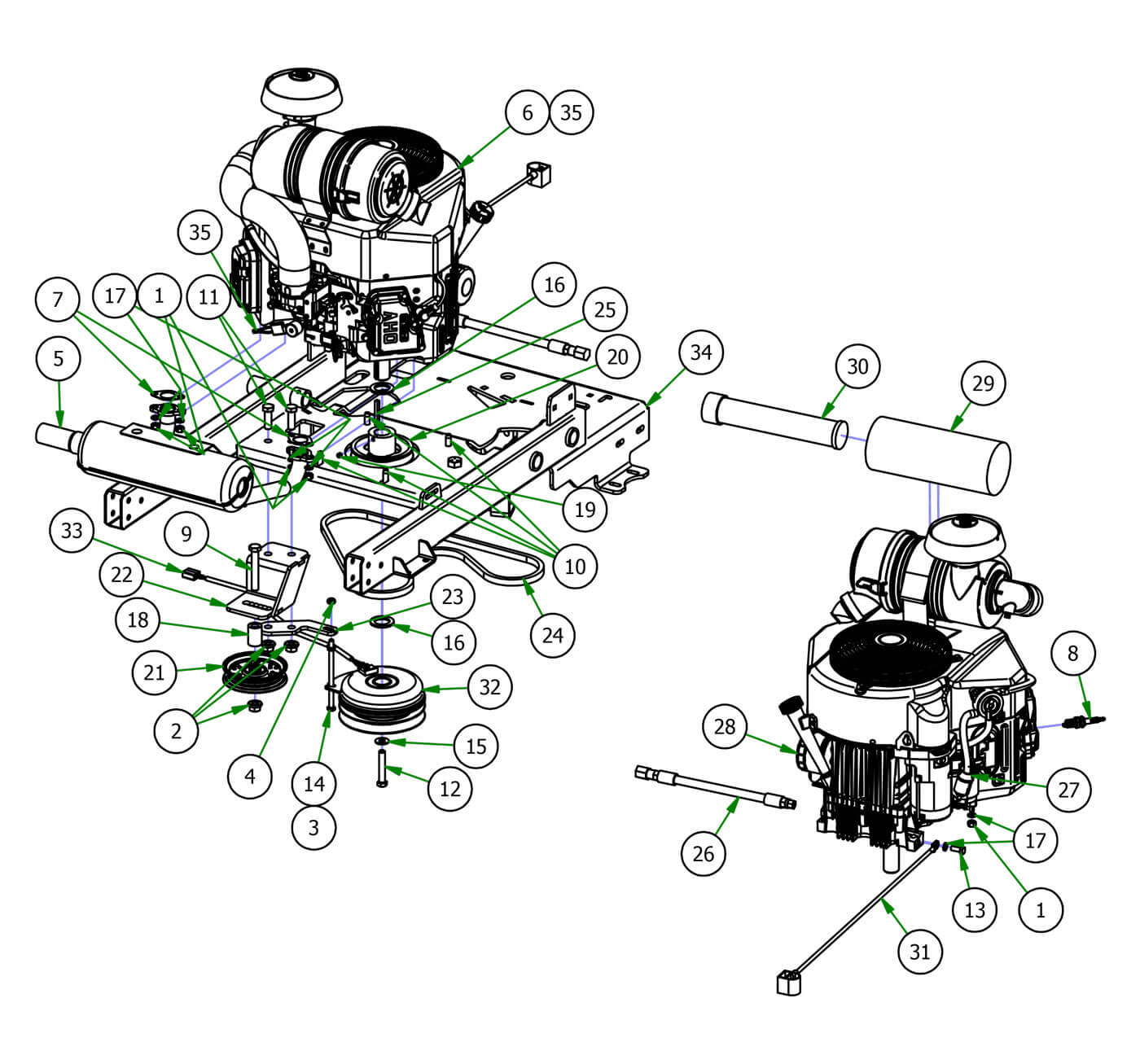

Kawasaki FX-730
Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 5)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 4 5/16-18 Nylock Jam Nut (Qty 1)
- 5 Exhaust-Stand On-FX691V Kawasaki (Qty 1)
- 6 FX730 Kawasaki (Qty 1)
- 7 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 8 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 9 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 12 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 13 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 14 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 1.140x1.750x .132 Flat Washer (Qty 2)
- 17 5/16 Lock washer Zinc (Qty 6)
- 18 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 19 5/16-24 x 1/4 Set Screw (Qty 1)
- 20 4 3/4 Motor Pulley (Qty 1)
- 21 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 22 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 23 Clutch Stop Bracket--Plated Rev B (Qty 1)
- 24 2019 & up Stand On Drive Belt (Qty 1)
- 25 1/4 X 2 Square Key Stock (Qty 1)
- 26 12" Kawasaki Oil Drain (Qty 1)
- 27 Universal Inline Fuel Filter (Qty 1)
- 28 Kawasaki Oil Filter (Qty 1)
- 29 Canister Air Fil Outer2010&Old (Qty 1)
- 30 Canister Air Filter - Inner (Qty 1)
- 31 24 inch Black Cable - MZ/ZT (Qty 1)
- 32 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 33 Clutch Pigtail (Qty 1)
- 35 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 5Regular price $2.99 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
5#015-0692-00
Exhaust-Stand On-FX691V Kawasaki
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
6#015-0730-00
FX730 Kawasaki-2015 Outlaw Base
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
7#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
8#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
12#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
13#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
14#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
15#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
17#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
18#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
19#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
20#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
21#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
22#039-0089-00
Idler Pulley Bracket Weldment--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
23#039-0119-00
Clutch Stop Bracket--Plated
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
24#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
25#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
26#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
27#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
28#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
29#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
30#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
31#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
33#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
35#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
