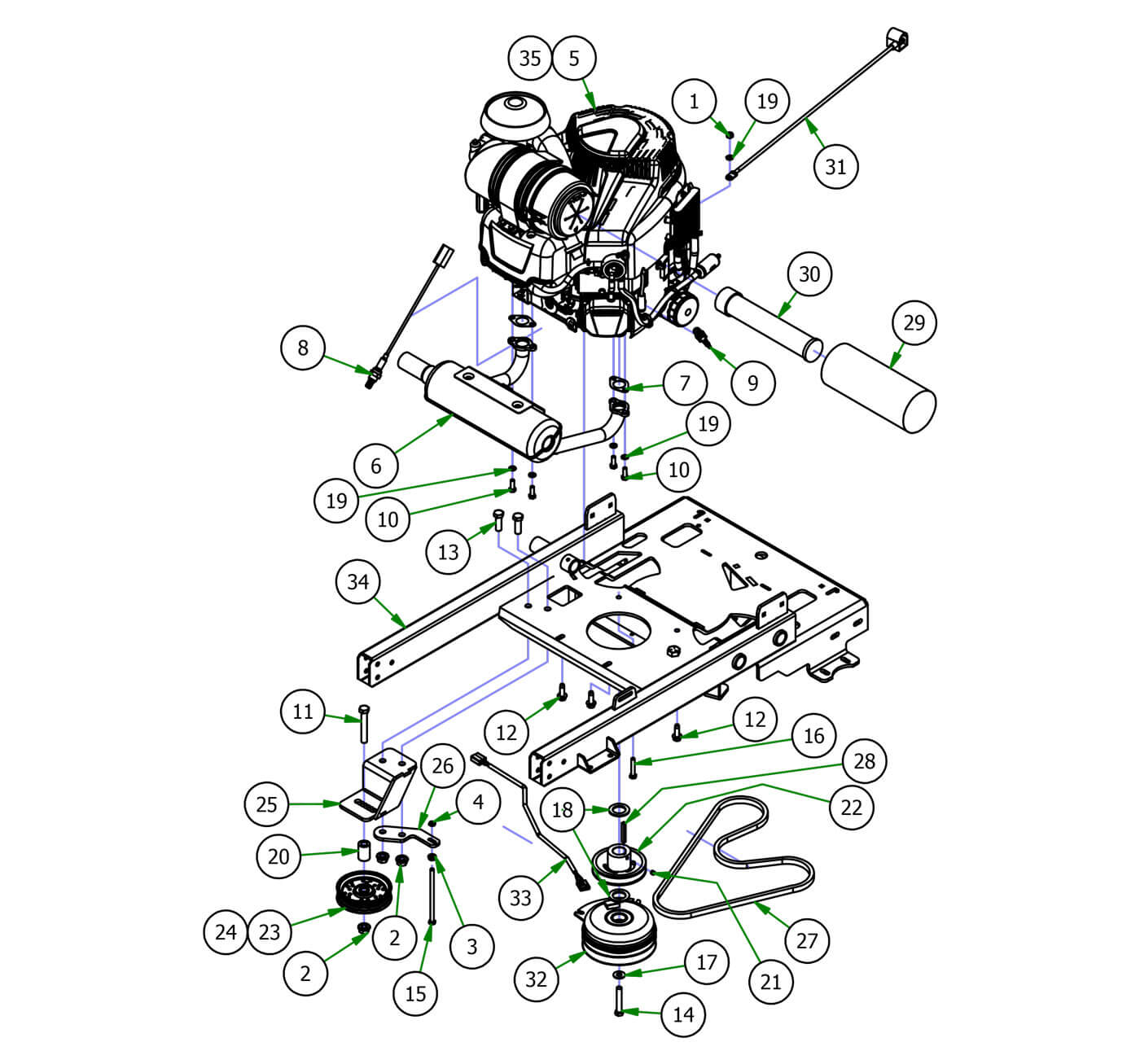

Briggs 28HP Vanguard
Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 1)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 4 5/16-18 Nylock Jam Nut (Qty 1)
- 5 28HP Briggs Vanguard 810cc (Qty 1)
- 6 Briggs 28 EFI Exhaust Revolt (Qty 1)
- 7 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 8 O2 Sensor for 824EFI Kohler (Qty 1)
- 9 Spark Plug-Kohler/Briggs (Qty 2)
- 10 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 11 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 12 3/8 x 1 1/8 Engine Mounting Bolt (Qty 2)
- 13 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 14 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 15 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 16 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 17 3/8 USS Flat Washer Zinc (Qty 1)
- 18 1.140x1.750x .132 Flat Washer (Qty 2)
- 19 5/16 Lock washer Zinc (Qty 5)
- 20 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 21 5/16-24 x 1/4 Set Screw (Qty 1)
- 22 4 3/4 Motor Pulley (Qty 1)
- 23 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 24 5 3/4 Idler Pulley-Don Dye (Qty 1)
- 25 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 26 Clutch Stop Bracket--Plated Rev B (Qty 1)
- 27 2019 & up Stand On Drive Belt (Qty 1)
- 28 1/4 X 2 Square Key Stock (Qty 1)
- 29 Canister Air Fil Outer2010&Old (Qty 1)
- 30 Canister Air Filter - Inner (Qty 1)
- 31 24 inch Black Cable - MZ/ZT (Qty 1)
- 32 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 33 Clutch Pigtail (Qty 1)
- 34 2019 Stand On Frame--Orange (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
5#015-0092-00
28HP Briggs Vanguard 810cc
Qty Used: 1Regular price $2,399.99 USDRegular priceUnit price per
-
6#015-1021-00
Briggs 28 EFI Exhaust Revolt
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
7#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
8#015-4100-00
O2 Sensor for 824EFI Kohler
Qty Used: 1Regular price $199.03 USDRegular priceUnit price per
-
9#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
10#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
11#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
12#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
13#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
14#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
15#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
16#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
17#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
19#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
20#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
21#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
22#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
23#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
24#033-7201-00
5 3/4 Idler Pulley-Don Dye
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
25#039-0089-00
Idler Pulley Bracket Weldment--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
26#039-0119-00
Clutch Stop Bracket--Plated
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
27#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
28#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
29#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
30#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
31#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
33#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
34#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
