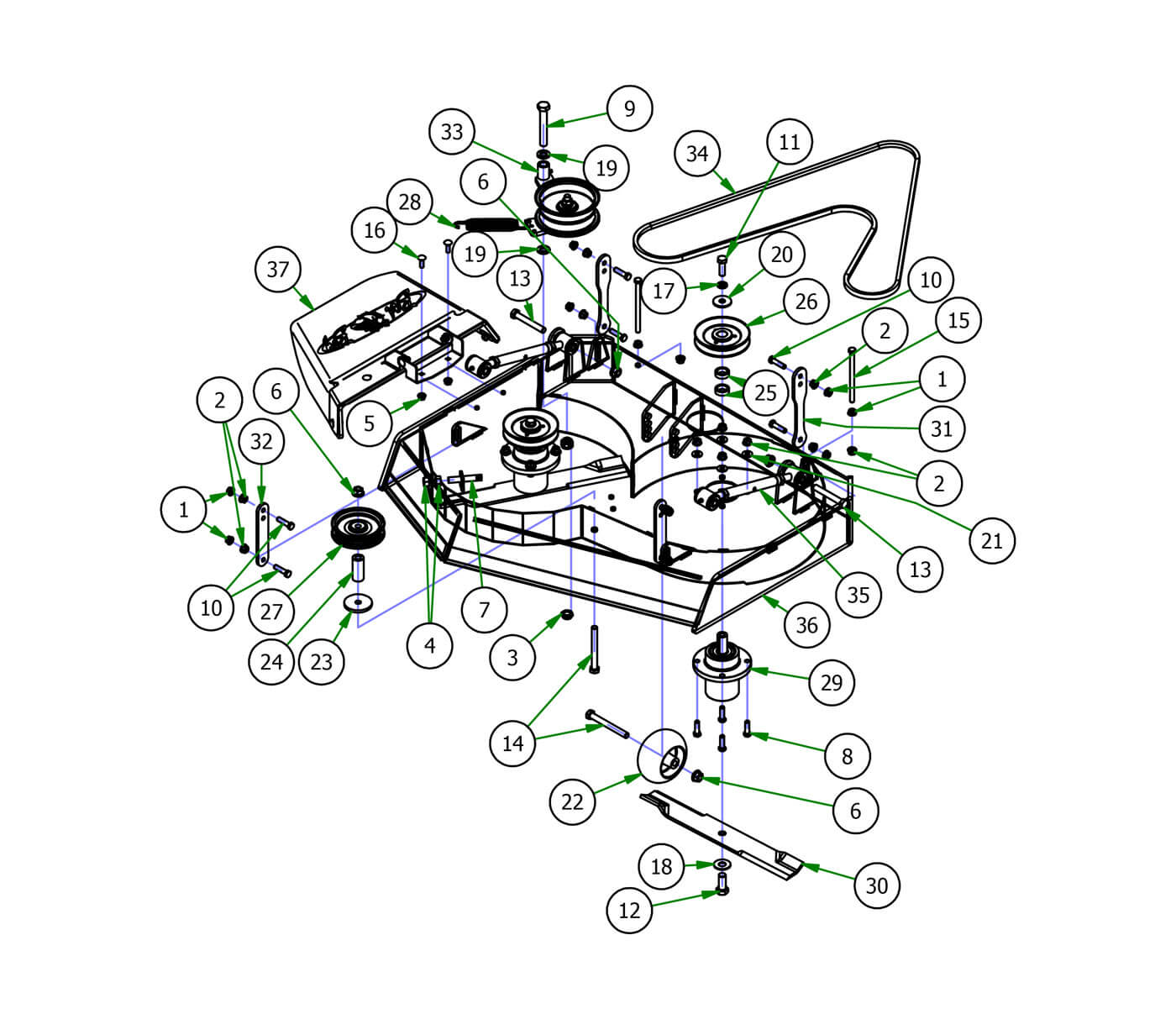

36" Deck Assembly
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 10)
- 2 3/8 Nylock Flange Nut (Qty 18)
- 3 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/16-18 Nylon Flange Nut (Qty 2)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 7 All Thread (Qty 1)
- 8 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 9 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 10 3/8 x 1 1/2 Bolt (Qty 8)
- 12 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 13 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 14 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 2)
- 15 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 16 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 17 1/2 Lockwasher Zinc (Qty 2)
- 18 5/8 Flat Washer (Qty 2)
- 19 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 20 1/2 Belleville Washer #K2000-G (Qty 2)
- 21 5/16 USS Flat Washer Zinc (Qty 8)
- 22 Deck Wheel (Qty 1)
- 23 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 24 2019 Stand On Stationary Idler Spacer (Qty 1)
- 25 36" Stand On Deck Spacer (Qty 4)
- 26 Deck Pulley - 48" Magnum/MZ (Qty 2)
- 27 5 V Idler Pulley w/1/2" Bore- (Qty 1)
- 28 2009 Deck/Pump Idler Spring (Qty 1)
- 29 Revolt 36" Spindle (Qty 2)
- 30 52 High Lift Blade (Qty 2)
- 31 2019 Stand On Deck Hanger Rear--Black (Qty 2)
- 32 2019 Stand On Deck Hanger Front--Black (Qty 2)
- 33 2020 36" Revolt Deck Idler Assembly (Qty 1)
- 34 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 35 Toplink (Qty 2)
- 36 2020 Stand On 36" Sloped Deck (Qty 1)
- 37 2020 36" Stand On Chute Assembly (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 18Regular price $1.49 USDRegular priceUnit price per
-
3#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
9#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
10#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
12#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
13#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
14#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $2.39 USDRegular priceUnit price per
-
15#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
16#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
18#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
19#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
21#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
22#022-1001-00
Deck Wheel
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
23#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
24#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-
25#025-0060-00
36" Stand On Deck Spacer
Qty Used: 4Regular price $5.99 USDRegular priceUnit price per
-
26#033-4820-00
Deck Pulley - 48\" Magnum/MZ
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
27#033-7026-00
5 V Idler Pulley w/1/2\" Bore-
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
28#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
29#037-2002-00
Revolt 36" Spindle
Qty Used: 2Regular price $212.29 USDRegular priceUnit price per
-
30#038-3010-00
52 High Lift Fusion Blade
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
31#039-2128-00
2019 Stand On Deck Hanger Rear--Black
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
32#039-2129-00
2019 Stand On Deck Hanger Front--Black
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
33#039-6952-98
2020 36" Revolt Deck Idler Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
34#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
36#060-1136-20
2020 Stand On 36" Sloped Deck
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
37#210-6016-98
2020 36" Stand On Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
