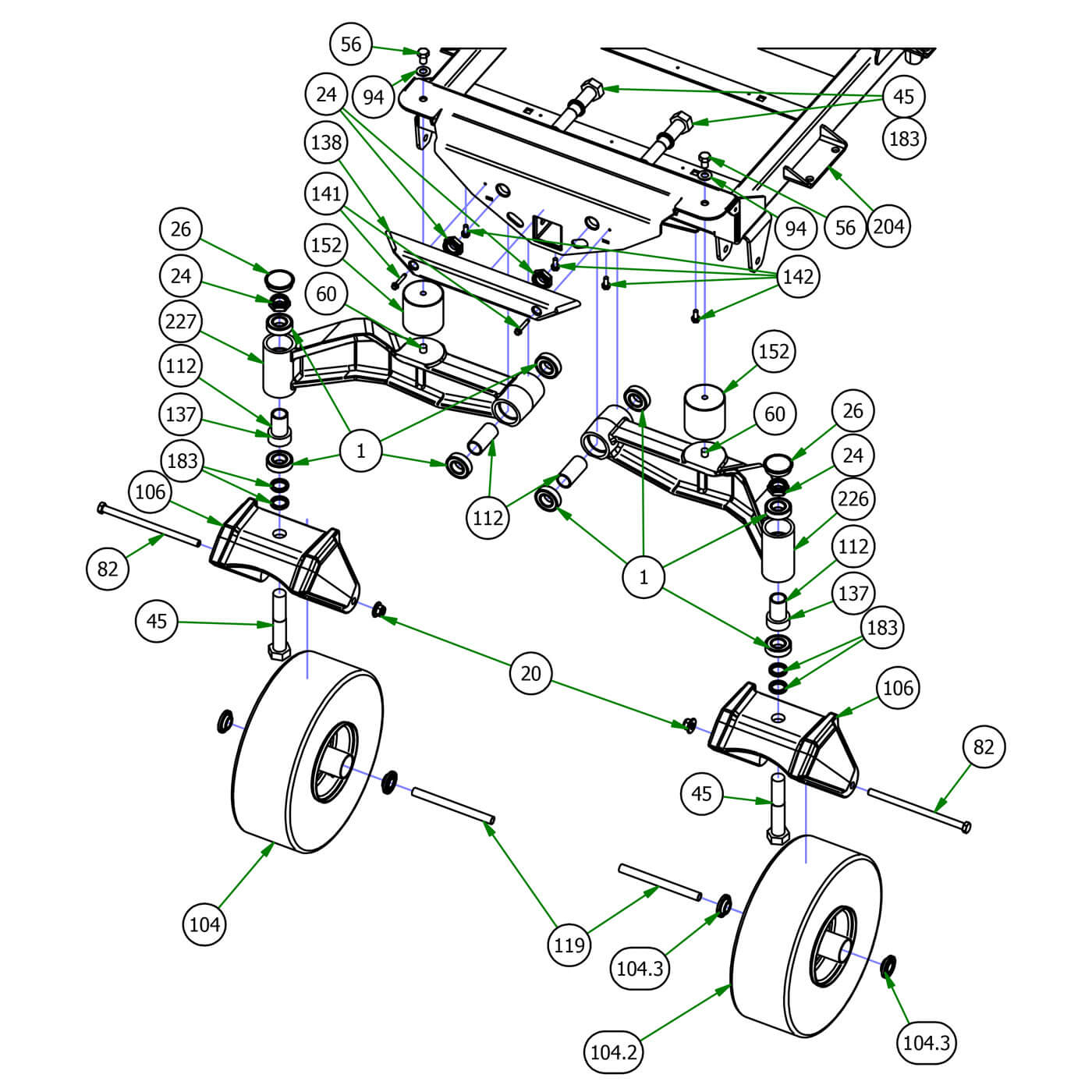

Front End
Parts Index
- 1 Caster Bearing (Qty 8)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 24 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 26 Bearing Retainer Cap (Qty 2)
- 45 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 56 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 60 1/2-13 x 1" Stud (Qty 2)
- 82 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 94 1/2 SAE Flat Washer GR 8 (Qty 2)
- 104 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 104.2 15x6-6 Tire Only (Qty 1)
- 104.3 1 3/4" Bearing-Large Bore (Qty 1)
- 106 2020 R Series Cast Front Fork (Qty 2)
- 112 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 119 Front Wheel Spanner-All Models (Qty 2)
- 137 Rubber Stabilizer (Front Fork) (Qty 2)
- 138 Bumper (Qty 1)
- 141 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 142 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 152 Isolator (Blue Dot) (Qty 2)
- 183 Spacer ( Front Fork and Suspension ) (Qty 6)
- 204 2019 Horizontal Gas Frame--Orange (Qty 1)
- 226 2019 Front I-Beam Left (Qty 1)
- 227 2019 Front I-Beam Right (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 8Regular price $17.19 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
24#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
26#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
45#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 4Regular price $12.99 USDRegular priceUnit price per
-
56#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
60#018-2009-00
1/2-13 x 1" Stud
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
82#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
94#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
104#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
104.2#022-0004-00
15x6-6 Tire Only
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
104.3#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
106#023-0004-20
2020 R Series Cast Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
112#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
119#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
137#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 2Regular price $7.95 USDRegular priceUnit price per
-
-
141#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
142#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
152#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
183#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
204#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
226#250-0032-00
2019 Front I-Beam Left
Qty Used: 1Regular price $218.90 USDRegular priceUnit price per
-
227#250-0033-00
2019 Front I-Beam Right
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
