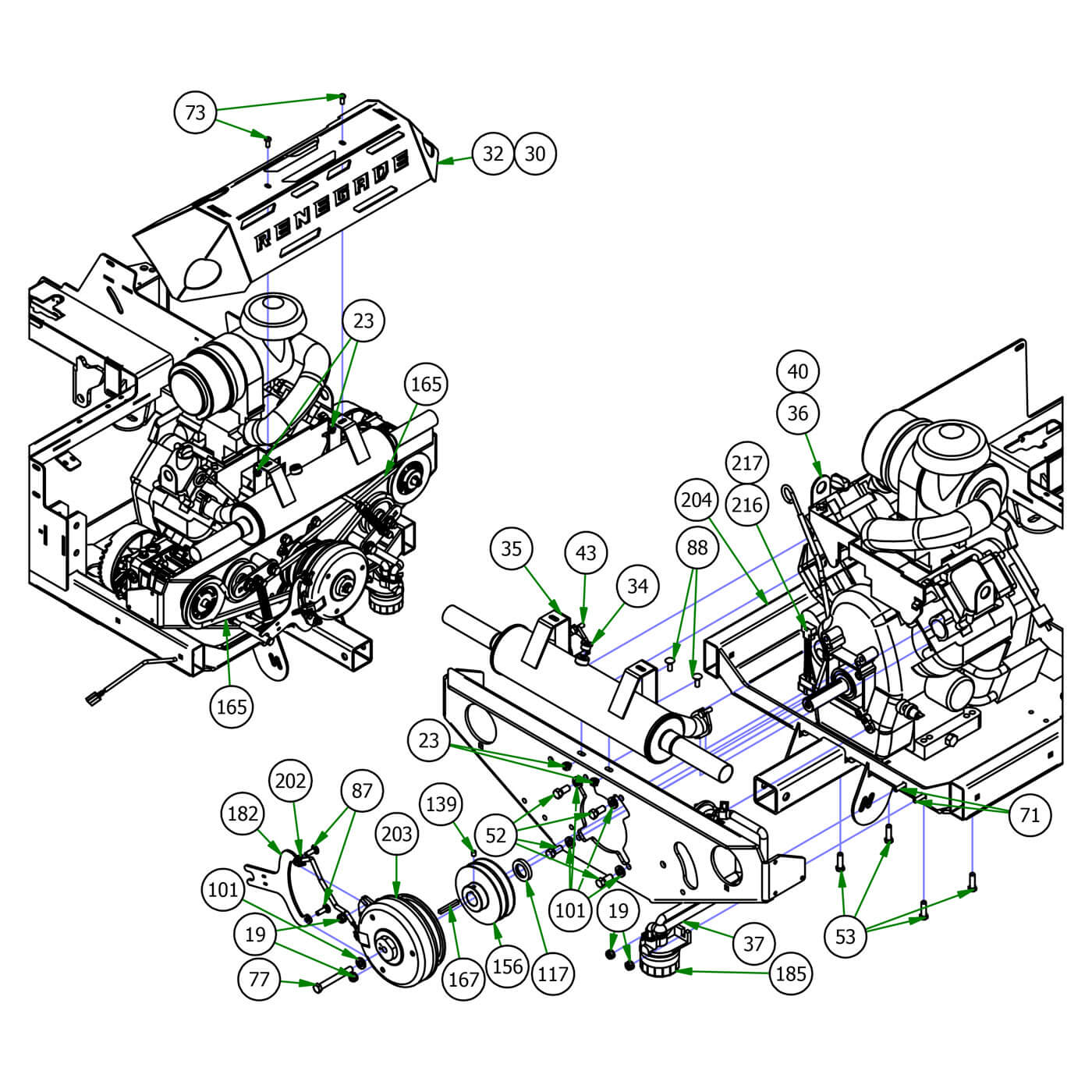

Engine Mounting
Parts Index
- 19 5/16-18 Nylon Flange Nut (Qty 4)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 30 Muffler Cover--Orange (Qty 1)
- 32 Muffler Cover--Orange (Qty 1)
- 34 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 34 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 35 2019 Renegade Vanguard 999cc EFI Exhaust (Qty 1)
- 36 2019 Vanguard EFI 37HP 993cc Horizontal Shaft (Qty 1)
- 37 Remote Oil Filter Kit For 015-3002-00 Engine (Qty 1)
- 40 2018 & Down 35hp Vanguard Engine (Qty 1)
- 43 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 52 7/16-14 x 1 Hex Bolt GR 5 Zinc (Qty 4)
- 53 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 71 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 73 5/16-18 X 3/4 Bolt (Qty 2)
- 77 7/16-20 x 3 1/2" HEX Head GR 8 Bolt (Qty 1)
- 87 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 88 5/16 x 7/8 Carriage Bolt (Qty 2)
- 101 7/16 Lock washer zinc (Qty 5)
- 117 Horizontal Engine Spacer (Qty 1)
- 139 5/16-24 X 3/8 Set Screw (Qty 3)
- 156 Renegade Horizontal Double V Pulley (Qty 1)
- 165 2020 Renegade Pump Belt (Qty 2)
- 167 1/4 X 2 Square Key Stock (Qty 1)
- 182 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 185 Briggs Oil Filter (Qty 1)
- 202 Clutch Pigtail (Qty 1)
- 203 Renegade Clutch (Qty 1)
- 204 2019 Horizontal Gas Frame--Orange (Qty 1)
- 216 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
- 217 2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz (Qty 1)
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
23#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

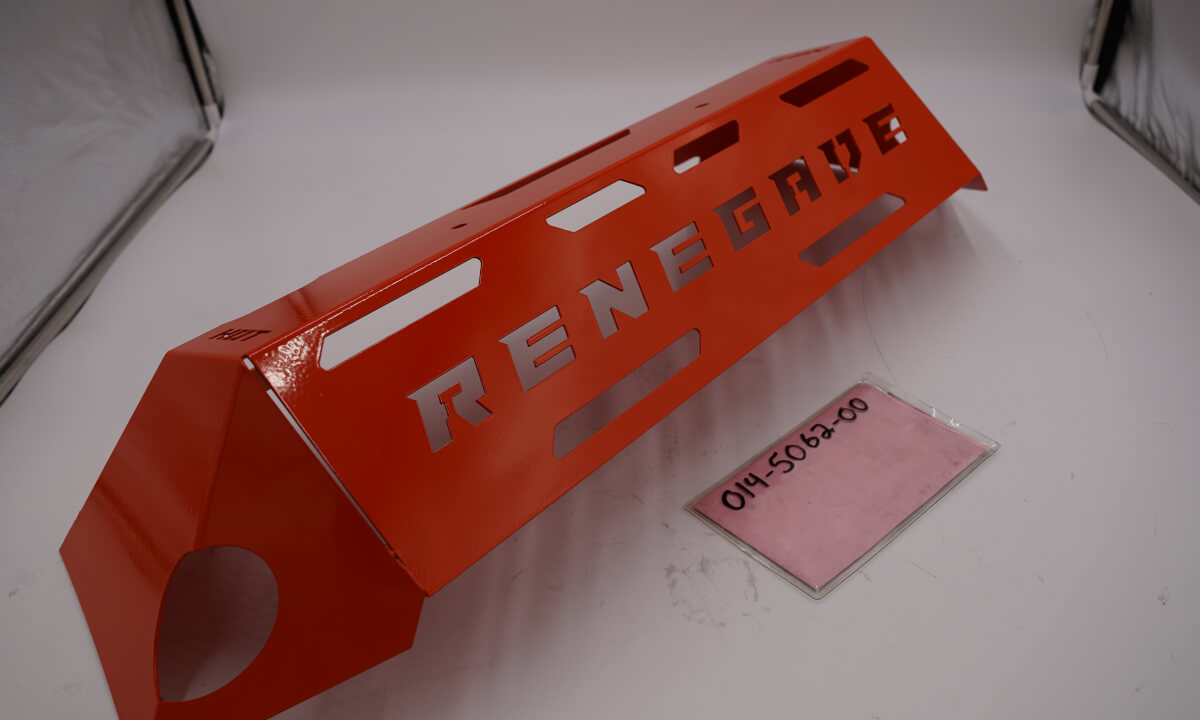

30#014-5062-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
32#014-5064-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-

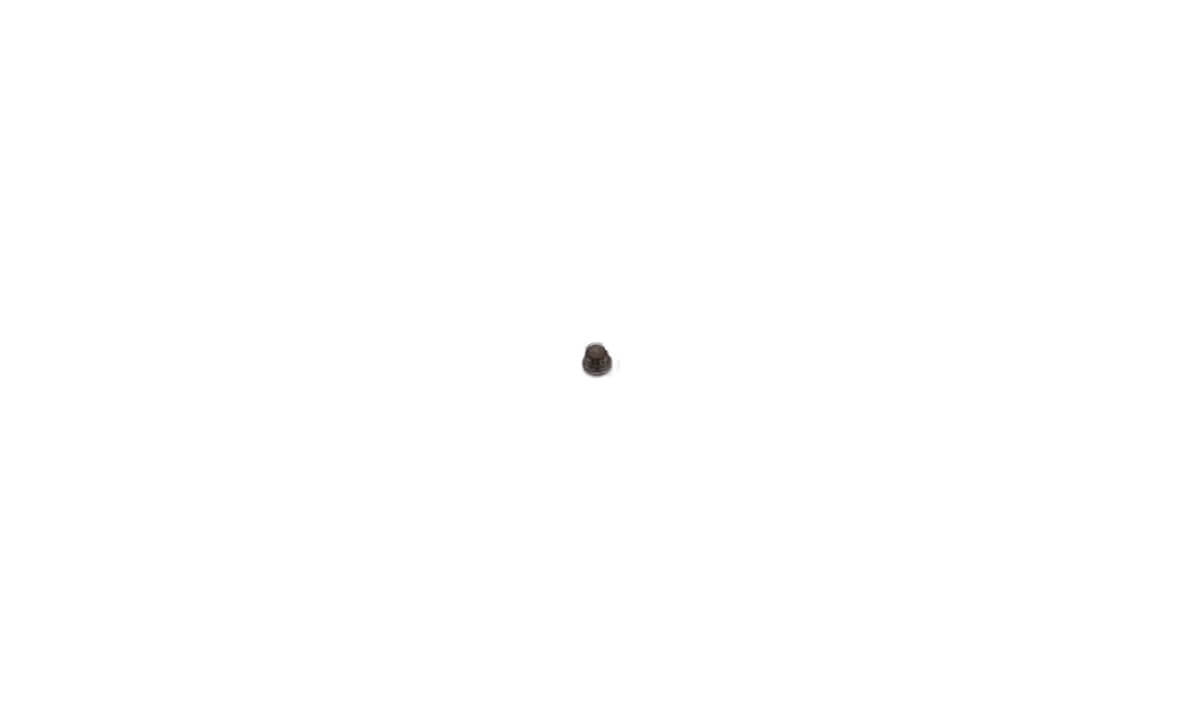

3434#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
35#015-1018-00
2019 Renegade Vanguard 999cc EFI Exhaust
Qty Used: 1Regular price $233.53 USDRegular priceUnit price per
-
36#015-3002-00
2019 Vanguard EFI 37HP 993cc Horizontal Shaft
Qty Used: 1Regular price $3,299.00 USDRegular priceUnit price per
-
37#015-3002-01
Remote Oil Filter Kit For 015-3002-00 Engine
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
-
40#015-5405-00
2018 & Down 35hp Vanguard Engine
Qty Used: 1Regular price $3,495.00 USDRegular priceUnit price per
-
43#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
52#018-0053-00
7/16-14 x 1 Hex Bolt GR 5 Zinc
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
53#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
71#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
73#018-5007-00
5/16-18 X 3/4 Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
77#018-5052-00
7/16-20 x 3 1/2" HEX Head GR 8 Bolt
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
87#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
88#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
101#019-8053-00
7/16 Lock washer zinc
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
117#025-0076-00
Horizontal Engine Spacer
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
139#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
156#033-8001-00
2019 Outlaw Renegade Horizontal Double V Pulley
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
165#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
167#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
182#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
185#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
202#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
203#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
204#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
216#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
217#086-9013-00
2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
