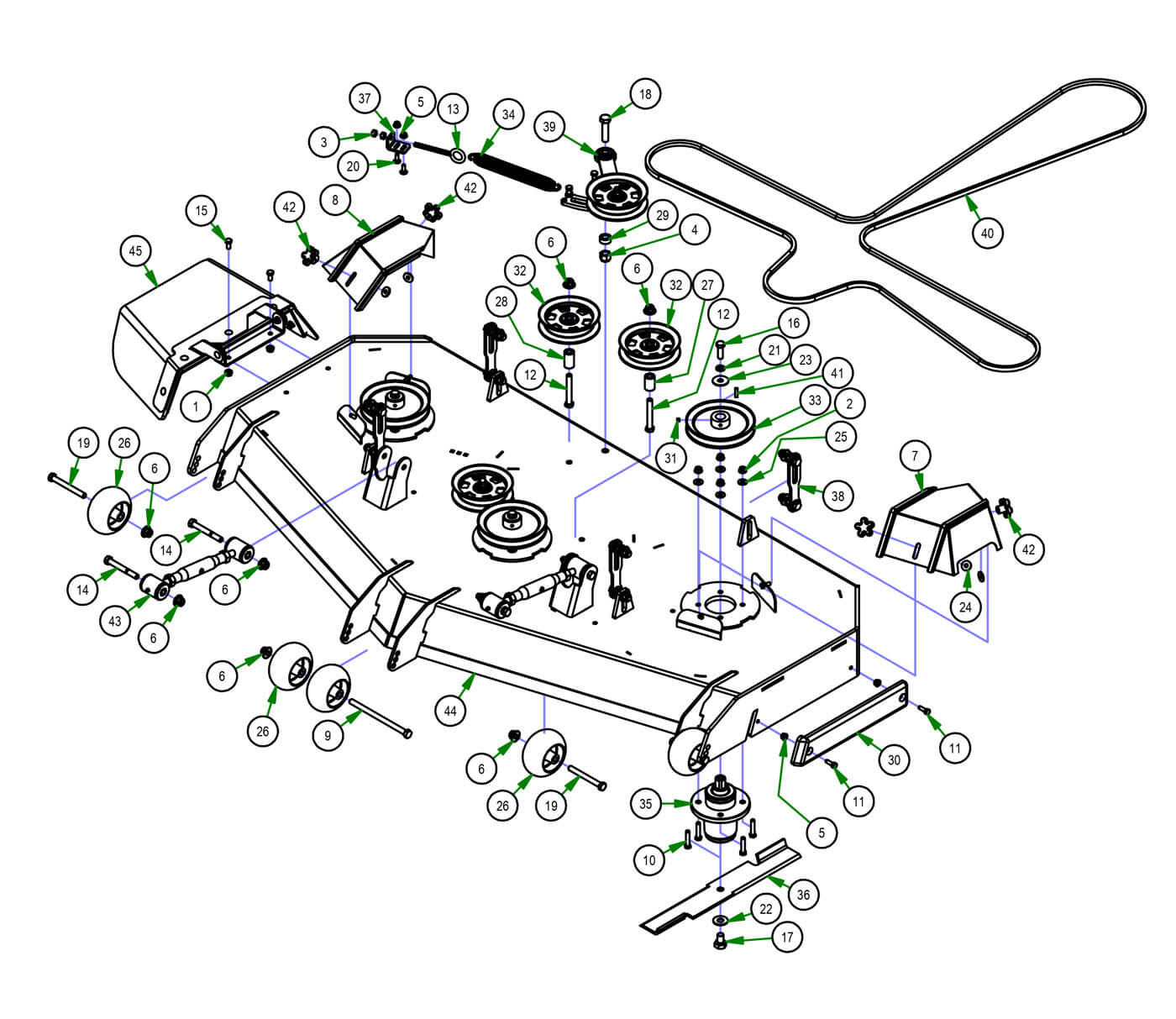

72" Deck Assembly
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 2 3/8 Nylock Flange Nut (Qty 12)
- 3 3/8-16 Hex Nuts Zinc (Qty 2)
- 4 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 5 5/16-18 Nylon Flange Nut (Qty 4)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 12)
- 7 Pulley Cover LH Rebel, Rogue, Renegade 72" (Qty 1)
- 8 Pulley Cover RH Rogue, Rebel, Renegade 72" (Qty 1)
- 9 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 10 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 11 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 12)
- 12 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 3)
- 13 4" 3/8-16 Eye Bolt (Qty 1)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 15 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 16 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 17 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 18 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 1)
- 19 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 20 5/16 x 7/8 Carriage Bolt (Qty 2)
- 21 1/2 Lockwasher Zinc (Qty 3)
- 22 5/8 Flat Washer (Qty 3)
- 23 1/2 Belleville Washer #K2000-G (Qty 3)
- 24 .360 ID Black Plastic Washer (Qty 4)
- 25 5/16 USS Flat Washer Zinc (Qty 12)
- 26 Deck Wheel (Qty 6)
- 27 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 28 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 29 5/8 Set Collar W/One Set Screw (Qty 1)
- 30 Bumper (Deck) (Qty 1)
- 31 5/16-24 x 1/4 Set Screw (Qty 3)
- 32 5 3/4 Idler Pulley-Capitol (Qty 3)
- 33 7" Spindle Deck Pulley (Qty 3)
- 34 Deck Spring 2019 Models (Qty 1)
- 35 Commercial Cast Iron Spindle (Qty 3)
- 36 72" High Lift Blade (Qty 3)
- 37 2019 Deck Eye Bolt Tab--Plated (Qty 1)
- 38 Outlaw/Extreme/XP Deck Hanger Assy (Qty 4)
- 39 2019 Renegade Deck Idler (Qty 1)
- 40 72 Renegade Gas Deck Belt (Qty 1)
- 41 1/4 x 1 Square Key (Qty 3)
- 42 5/16 Black Plastic Knob (Qty 4)
- 43 Toplink (Qty 2)
- 44 2019 72" Sloped Deck Weldment--Orange (Qty 1)
- 45 R-Series, Revolt Chute Assembly (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
3#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-

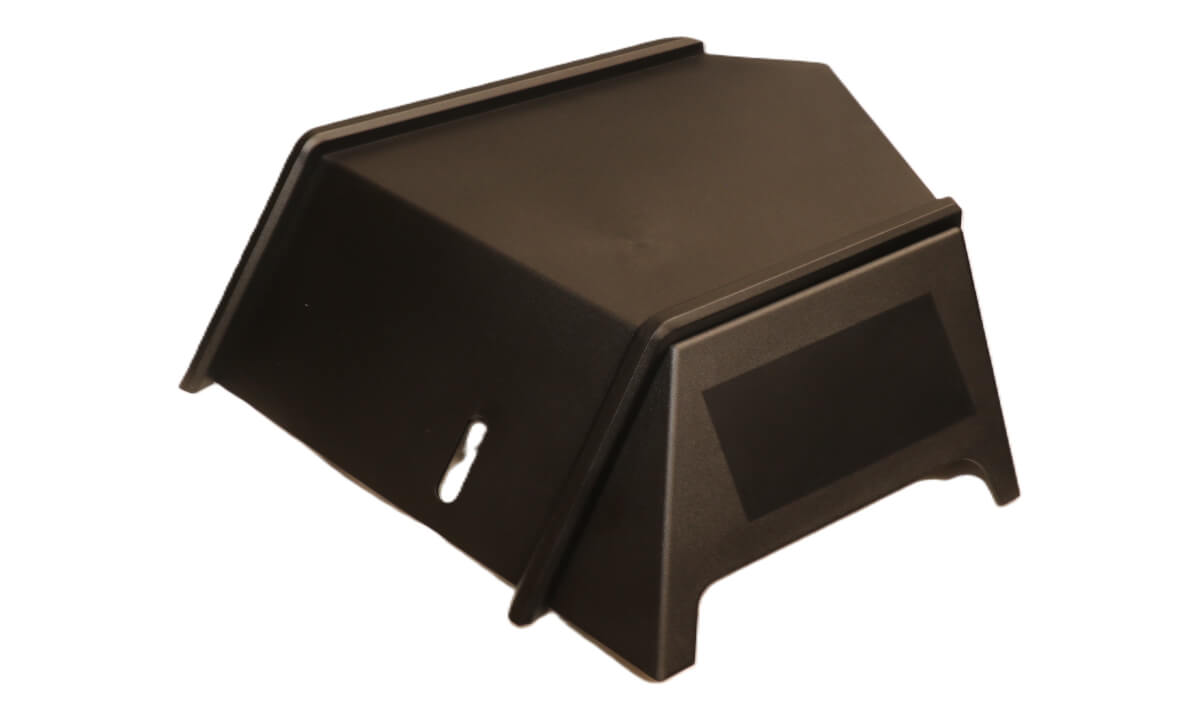

7#014-5054-00
Pulley Cover LH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-

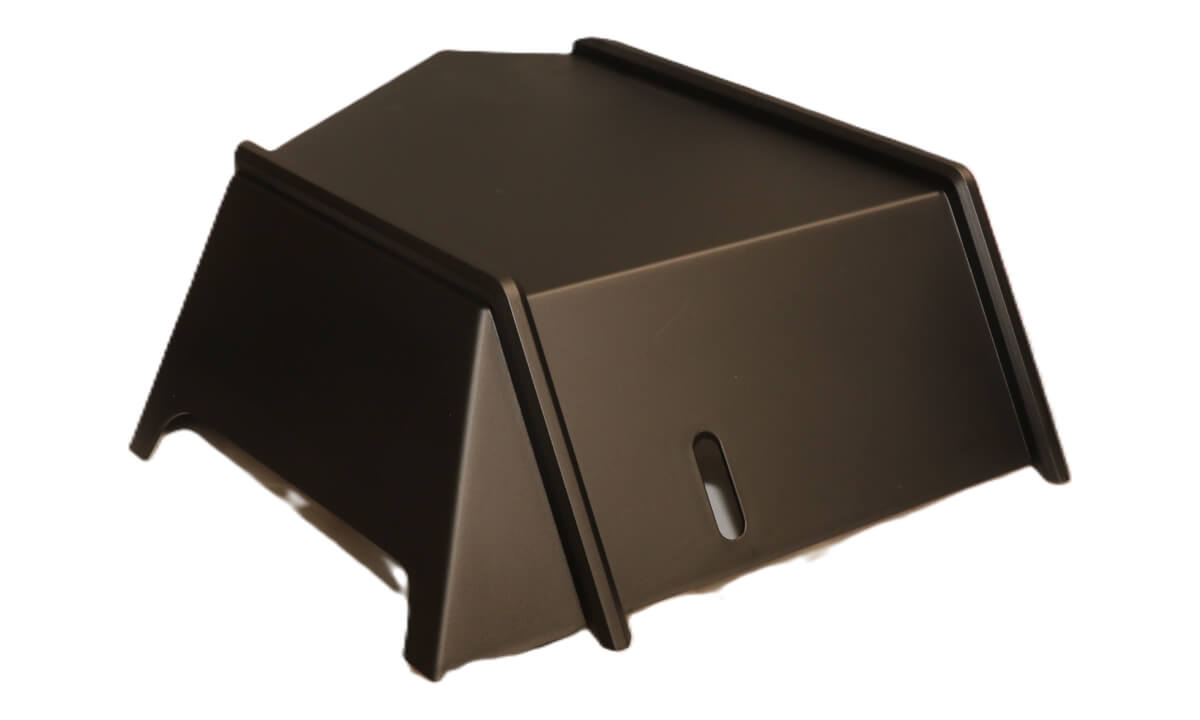

8#014-5055-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
9#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
10#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
11#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
12#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 3Regular price $3.29 USDRegular priceUnit price per
-
13#018-4707-00
4" 3/8-16 Eye Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
15#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
17#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
18#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
19#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
20#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
21#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
22#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
23#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
24#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
25#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
26#022-1001-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
27#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
28#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
29#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
30#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
31#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
32#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
33#033-7203-00
7" Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
34#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
35#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-

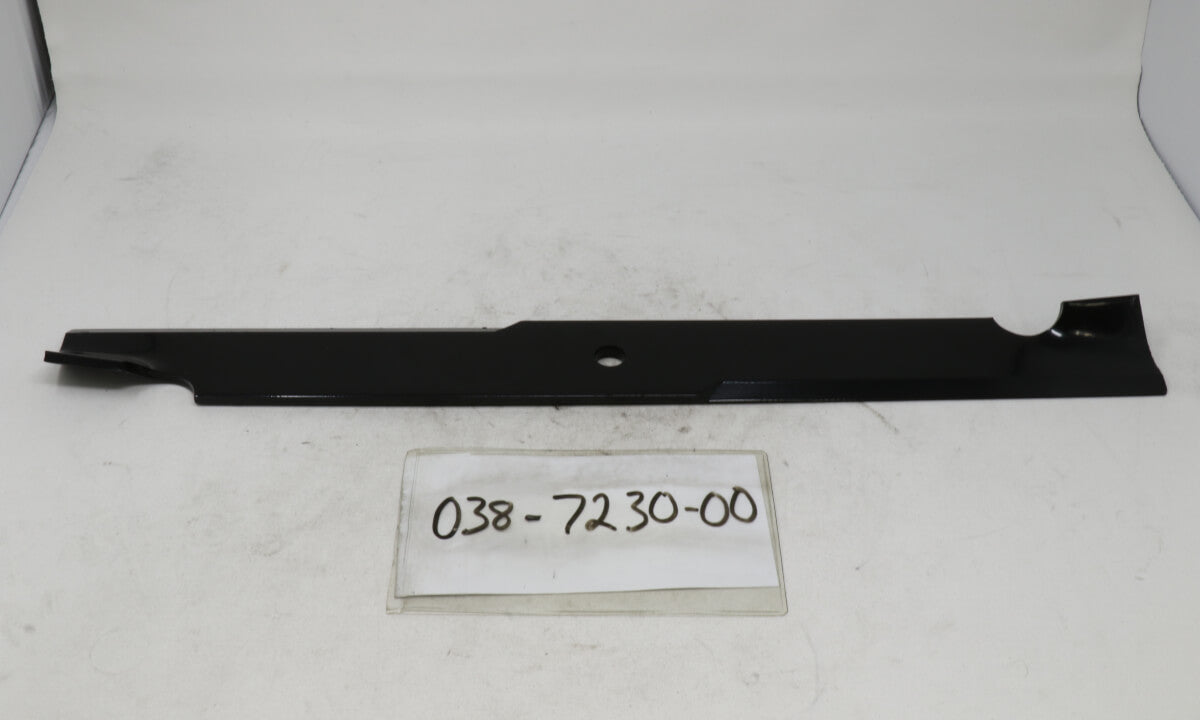

36#038-7230-00
72" High Lift Fusion Blade
Qty Used: 3Regular price $22.49 USDRegular priceUnit price per
-
37#039-0144-00
2019 Deck Eye Bolt Tab--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
39#039-6946-17
2019 Renegade Deck Idler
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-

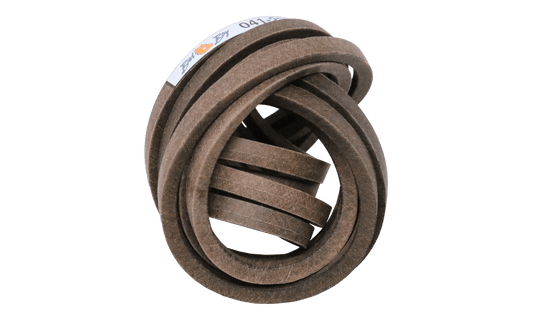

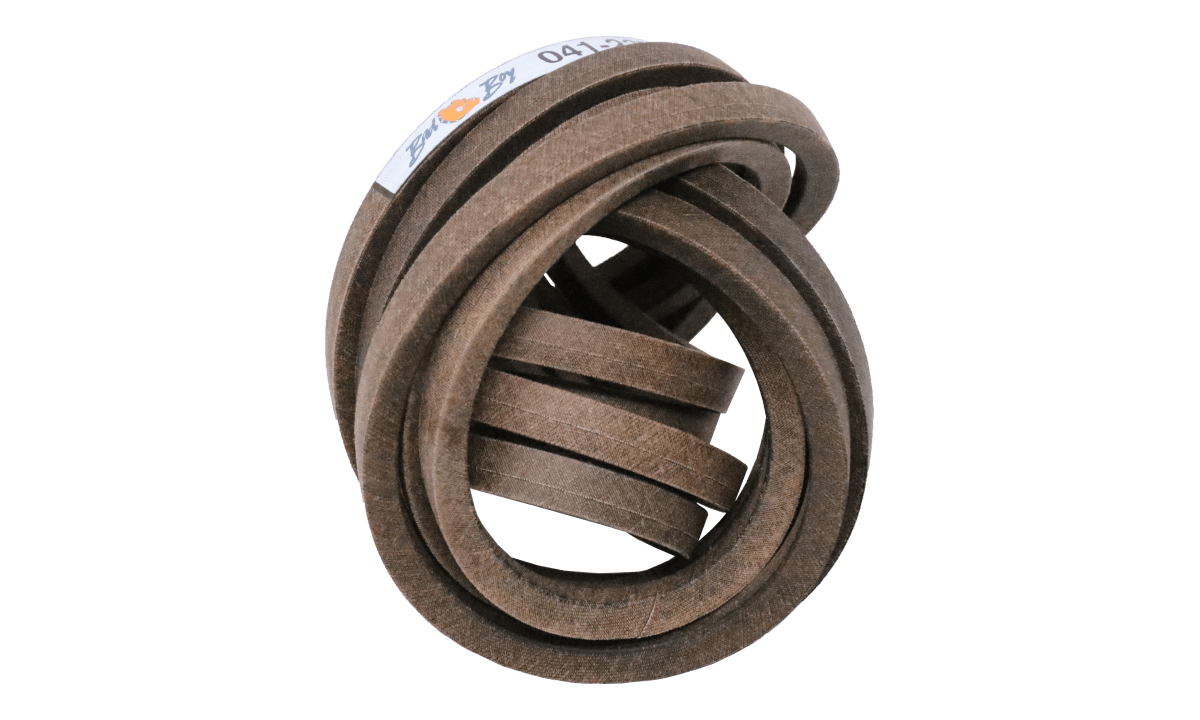

40#041-2375-00
72 Renegade / AOS (GAS) Deck Belt
Qty Used: 1Regular price $131.30 USDRegular priceUnit price per
-
41#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
42#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
-
44#060-7251-19
2019 72" Sloped Deck Weldment--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
45#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
