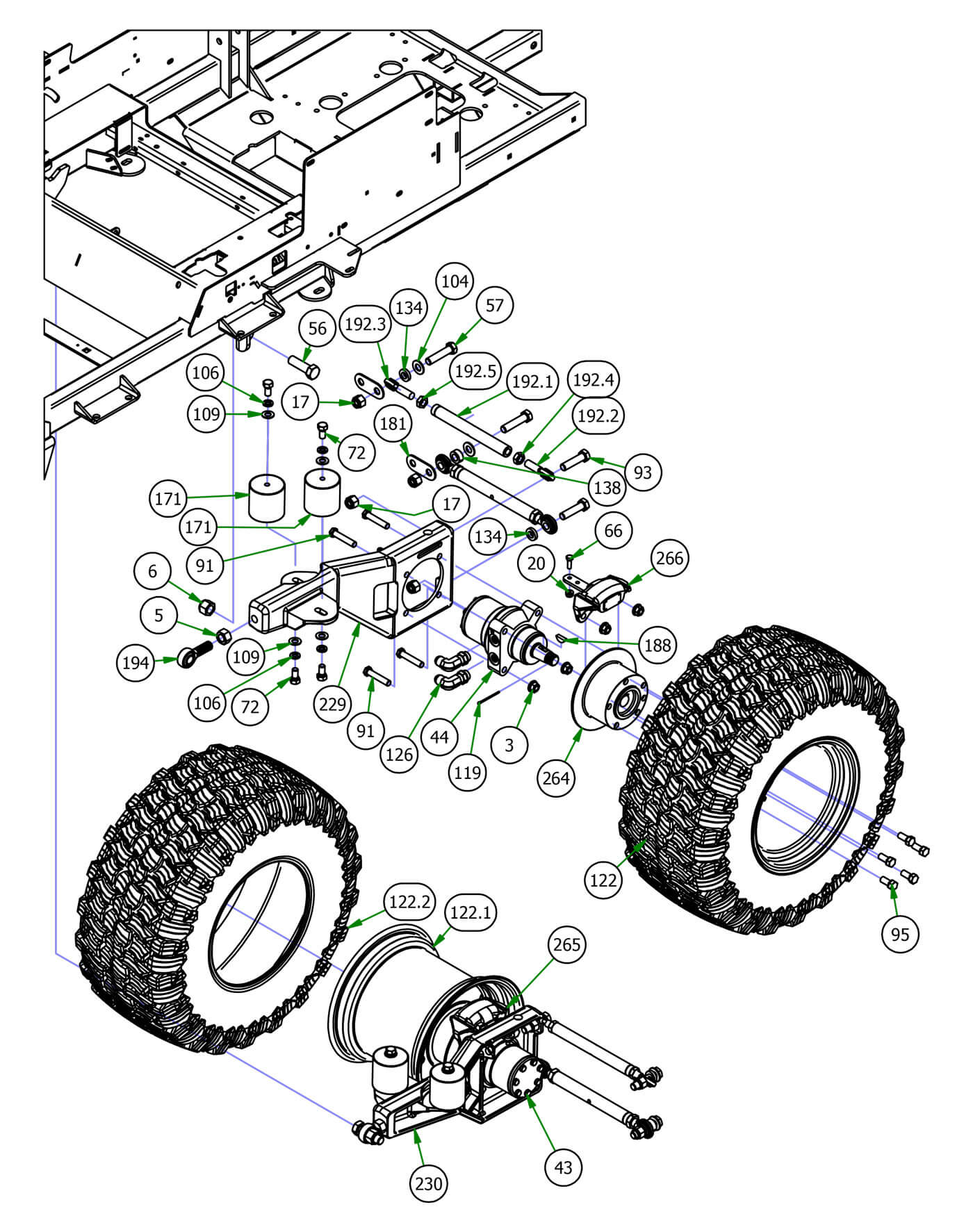

Rear Swing Arms
Parts Index
- 3 1/2-13 Mechanical Lock Nut Grade F (Qty 8)
- 5 3/4"-16 Fine Full Nut (Qty 2)
- 6 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 17 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 20 5/16-18 Nylon Flange Nut (Qty 2)
- 43 18ci Parker Wheel Motor-Right (Qty 1)
- 44 18ci Parker Wheel Motor - Left (Qty 1)
- 56 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 57 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 66 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 72 1/2 x 1 Bolt (Qty 8)
- 91 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 8)
- 93 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 95 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 104 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 106 1/2 Lockwasher Zinc (Qty 8)
- 109 1/2 SAE Flat Washer GR 8 (Qty 8)
- 119 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 122 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 122.1 2019 10.5" Wheel Fits 022-4090-00 (Qty 1)
- 122.2 2019 26x12-12 Reaper Turf Tire (Qty 1)
- 126 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 4)
- 134 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 138 5/8 Set Collar W/One Set Screw (Qty 2)
- 171 Isolator (Blue Dot) (Qty 4)
- 181 2019 Suspension Gusset--Plated (Qty 2)
- 188 Woodruff Key-Wheel Motor (Qty 2)
- 192 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 192.1 2019 Suspension Link Body-RH and LH Threads (Qty 1)
- 192.2 Heim 5/8" RH (Qty 1)
- 193.3 Heim 5/8" LH (Qty 1)
- 192.4 Nut, 5/8-18 RH (Qty 1)
- 192.5 Nut, 5/8-18 LH (Qty 1)
- 193 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 193.2 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
- 193.3 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
- 193.5 3/4 - 16 LH Half Nut (Qty 1)
- 194 Heim 3/4" RH (Qty 2)
- 229 2019 Left Trailing Arm (Qty 1)
- 230 2019 Right Trailing Arm (Qty 1)
- 233 2019 Horizontal Diesel Frame (Qty 1)
- 264 Brake Disc (96-37486) (Qty 2)
- 265 Brake Caliper with Bracket RH (Qty 1)
- 266 Brake Caliper with Bracket LH (Qty 1)
-
3#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 8Regular price $1.00 USDRegular priceUnit price per
-
5#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
6#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
17#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
20#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
44#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
56#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
57#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
66#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
72#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-

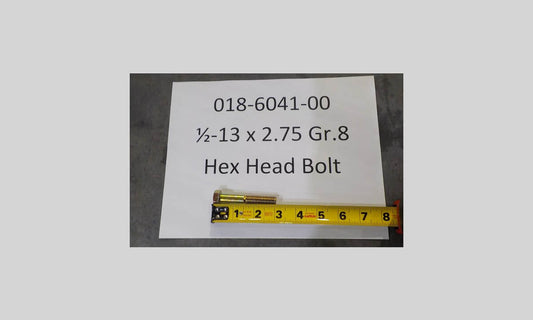

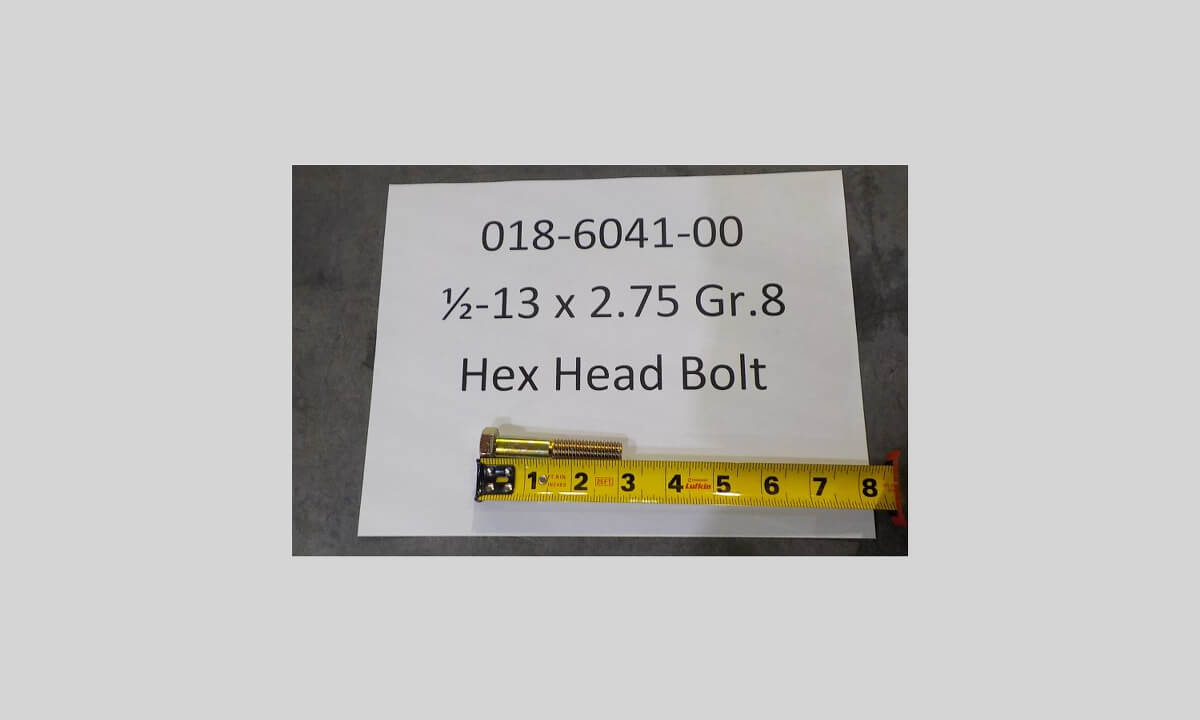

91#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
93#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
95#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
104#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
106#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
109#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
119#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
122#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
122.1#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
122.2#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
126#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 4Regular price $17.45 USDRegular priceUnit price per
-
134#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
138#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
171#032-8999-00
Isolator (Blue Dot)
Qty Used: 4Regular price $60.02 USDRegular priceUnit price per
-
181#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
188#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
192#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
192.1#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
192.2#048-6062-00
Heim 5/8" RH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
193.3#048-6063-00
Heim 5/8" LH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
192.4#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
192.5#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
193#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
193.2193.3#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
193.5#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
194#048-7001-00
Heim 3/4" RH
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
229#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
230#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
264#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
265#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
266#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
