Front End

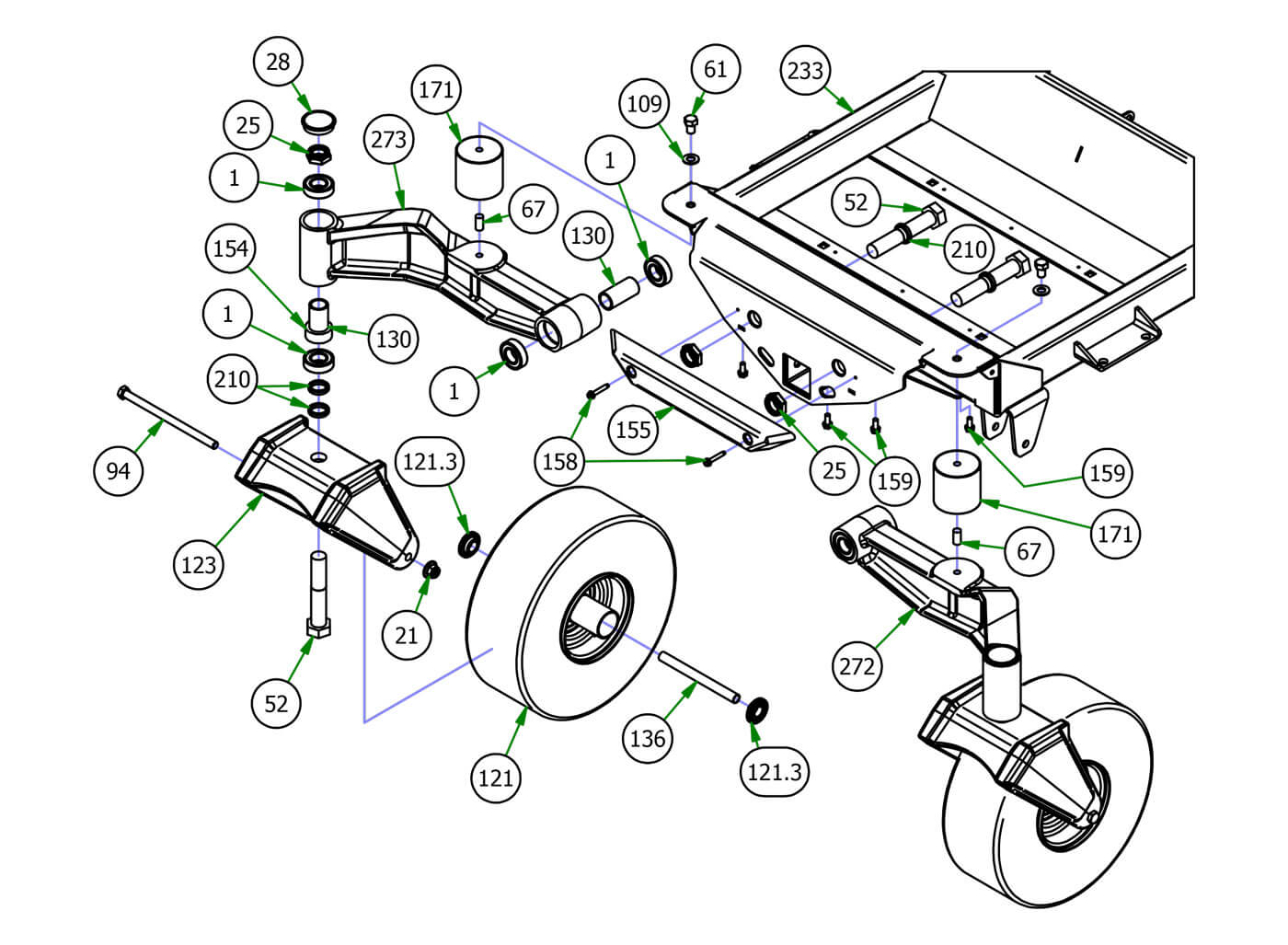

Parts Index
- 1 Caster Bearing (Qty 8)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 25 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 28 Bearing Retainer Cap (Qty 2)
- 52 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 61 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 67 1/2-13 x 1" Stud (Qty 2)
- 94 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 109 1/2 SAE Flat Washer GR 8 (Qty 2)
- 121 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 121.3 1 3/4" Bearing-Large Bore (Qty 1)
- 123 2020 R Series Cast Front Fork (Qty 2)
- 130 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 136 Front Wheel Spanner-All Models (Qty 2)
- 154 Rubber Stabilizer (Front Fork) (Qty 2)
- 155 Bumper (Qty 1)
- 158 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 159 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 171 Isolator (Blue Dot) (Qty 2)
- 210 Spacer ( Front Fork and Suspension ) (Qty 6)
- 233 2019 Horizontal Diesel Frame (Qty 1)
- 272 2019 Front I-Beam Left (Qty 1)
- 272 2019 Front I-Beam Right (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 8Regular price $17.19 USDRegular priceUnit price per
-
21#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
25#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
28#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
52#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 4Regular price $12.99 USDRegular priceUnit price per
-
61#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
67#018-2009-00
1/2-13 x 1" Stud
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
94#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
109#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
121#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
121.3#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
123#023-0004-20
2020 R Series Cast Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
130#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
136#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
154#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 2Regular price $7.95 USDRegular priceUnit price per
-
-
158#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
159#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
171#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
210#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
272#250-0032-00
2019 Front I-Beam Left
Qty Used: 1Regular price $218.90 USDRegular priceUnit price per
-
272#250-0033-00
2019 Front I-Beam Right
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
