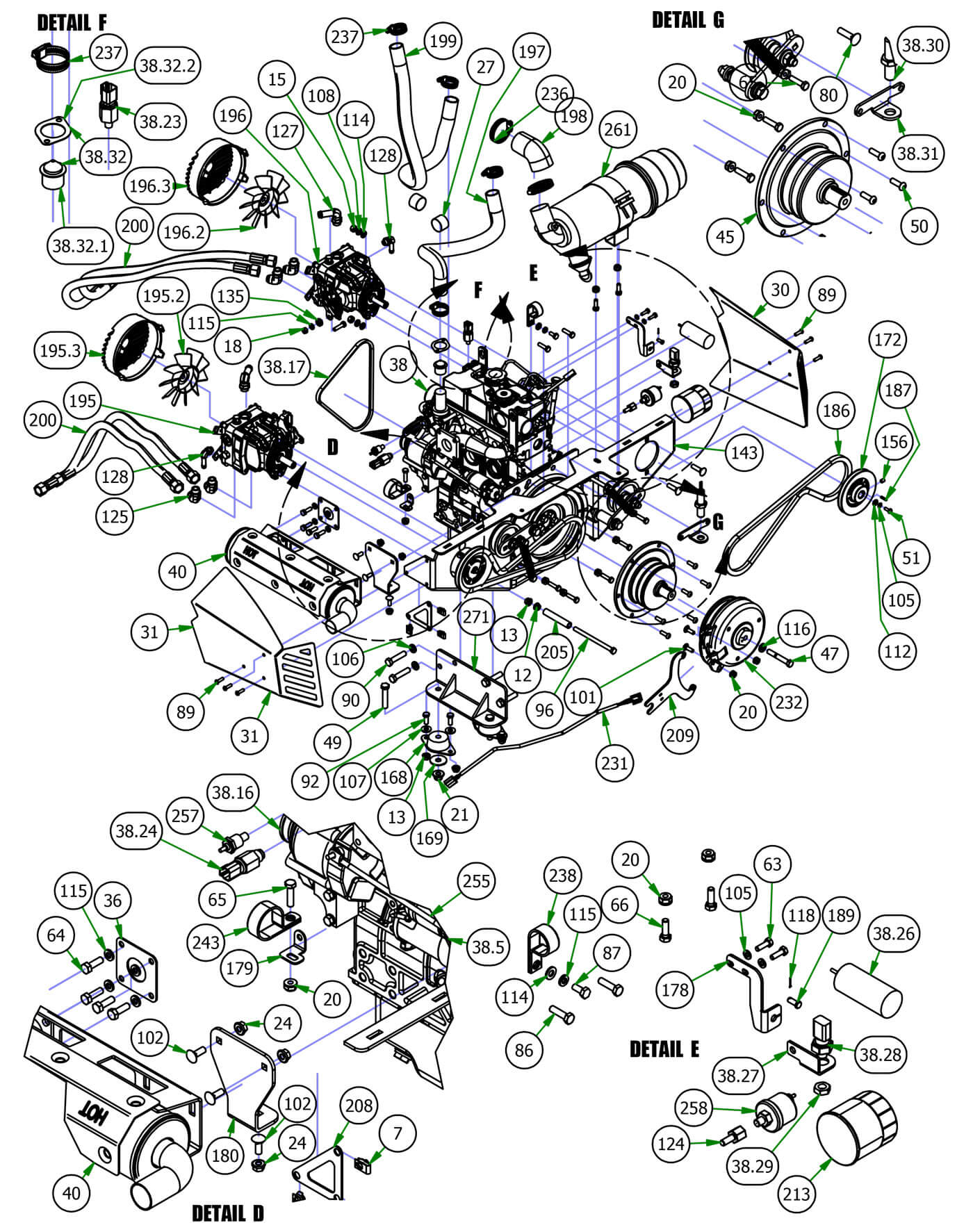

Engine Bay
Parts Index
- 7 1/4-20 Cage Nut (Qty 6)
- 12 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 13 3/8 Nylock Flange Nut (Qty 11)
- 15 3/8-16 Hex Nuts Zinc (Qty 4)
- 18 5/16-18 Hex Nuts Zinc (Qty 2)
- 20 5/16-18 Nylon Flange Nut (Qty 10)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 6)
- 24 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 27 2019 Plastic Mesh Hose Loom (Qty 2)
- 30 Pump Cover--RH-Orange (Qty 1)
- 31 Pump Cover--LH-Orange (Qty 1)
- 36 35/28 CAT Muffler Gasket (Qty 1)
- 38.5 Starter for the Perkins 1100cc Diesel (Qty 1)
- 38.16 Alternator for 015-0096-00 & 015-0097-00 (Qty 1)
- 38.17 Caterpillar Fan Belt (Qty 1)
- 38.23 Oil Pressure Sensor for the 015-0096-00/ 015-0097- (Qty 1)
- 38.24 Coolant Temperature Sensor for 015-0096-00 & (Qty 1)
- 38.26 Fuel Shutdown Solenoid for the Perkins 1100cc (Qty 1)
- 38.27 Barometric Pressure Sensor Bracket for Perkins (Qty 1)
- 38.28 Barometric Pressure Sensor (Qty 1)
- 38.29 Pressure Sensor Nut for 1100cc (Qty 1)
- 38.30 Crank Sensor w/Nut for the Perkins 1100cc Diesel (Qty 1)
- 38.31 Crank Sensor bracket for the Perkins 1100cc Diesel (Qty 1)
- 38.32 Thermostat ONLY for Diesel (Qty 1)
- 38.32.1 Thermostat ONLY for Diesel (Qty 1)
- 38.32.2 Gasket for CAT Thermostat (Qty 1)
- 40 2019 Renegade 1100cc Diesel Muffler (Qty 1)
- 45 2019 Diesel Stub Shaft Double V (Qty 1)
- 47 7/16-20 x 3 Hex C/S GR 8 Yellow (Qty 1)
- 48 Deck Wheel Bolt (Qty 2)
- 49 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 50 5/16-18 x 1 Button Head (Qty 6)
- 51 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 60 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 63 M6x1.0x20MM 8.8 Hex Bolts Zinc (Qty 2)
- 64 M8 X 1.25 X 25MM Class 10.9 (Qty 4)
- 65 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 66 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 80 3/8 x 1 1/2 Carriage Bolt (Qty 4)
- 86 M8 x 1.25 x 30MM Hex Head Bolt (Qty 2)
- 87 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 89 1/4-20 x 1" BS C/S 18-8 SS (Qty 6)
- 90 12mm Bolt - Diesel (Qty 8)
- 92 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 8)
- 96 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 1)
- 101 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 102 5/16 x 7/8 Carriage Bolt (Qty 3)
- 105 1/4 Lockwasher Zinc (Qty 4)
- 106 1/2 Lockwasher Zinc (Qty 8)
- 107 3/8 USS Flat Washer Zinc (Qty 8)
- 108 3/8 Lockwasher Zinc (Qty 4)
- 110 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 112 1/4 USS Flat Washer Zinc (Qty 2)
- 114 5/16 USS Flat Washer Zinc (Qty 5)
- 115 5/16 Lock washer Zinc (Qty 7)
- 116 7/16 Lock washer zinc (Qty 1)
- 118 3/32 X 1/2 Cotter Pins Zinc (Qty 1)
- 124 8mm x 1/8 Adaptor (Qty 1)
- 125 Renegade Pump Fitting 90 Degree (Qty 4)
- 127 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 128 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 135 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 156 5/16-24 X 3/8 Set Screw (Qty 2)
- 168 Rubber Compression Mount (Qty 4)
- 169 Snubbing Washer-032-4050-00 (Qty 4)
- 172 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 175 ZT and ACS Handle Spring (Qty 2)
- 176 2019 Renegade Push Rod Assembly (Qty 2)
- 176.1 2019 Outlaw Gen2 Horizontal Push Rod (Qty 1)
- 176.2 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 176.3 3/8-24 Hex Nut Zinc (Qty 1)
- 176.4 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
- 176.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 176.6 5/16 LH Nut (Qty 1)
- 176.7 5/16 RH Nut (Qty 1)
- 178 Throttle Bracket--Plated (Qty 1)
- 179 Radiator Hose Clamp Bracket--Plated (Qty 1)
- 180 2019 Diesel Muffler Bracket--Plated (Qty 1)
- 183 2019 Renegade Belt Tensioner LH (Qty 1)
- 184 2019 Renegade Pump Belt Tensioner RH (Qty 1)
- 186 2019 Renegade / 2020 Revolt - Pump Belt (Qty 2)
- 187 OBSOLETE USE 042-5013-00 (Qty 2)
- 189 Fan Guard 6" - Fits Wheel (Qty 1)
- 195 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 195.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 195.3 Fan Guard 6" - Fits Wheel (Qty 1)
- 196 Renegade Right Pump 16cc (Qty 1)
- 196.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 196.3 Fan Guard 6" - Fits Wheel (Qty 1)
- 197 2019 Diesel Radiator Hose Upper Dayco#71796 (Qty 1)
- 198 Air Intake Hose (Qty 1)
- 199 2019 Diesel Radiator Hose Lower Dayco# 70808 (Qty 1)
- 200 2019 Renegade Hydro Hose (Qty 4)
- 205 3/8 Fuel Line-Priced per Foot (Qty 1)
- 208 Pump Plate Clip Nut Holder--Plated (Qty 2)
- 209 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 213 Caterpillar Oil Filter (Qty 1)
- 231 Clutch Pigtail (Qty 1)
- 232 Renegade Clutch (Qty 1)
- 236 2-1/2 Hose Clamp (Qty 2)
- 237 1 1/8 Hose Clamp (Qty 4)
- 238 Diesel Hydraulic Hose Clamp (Qty 1)
- 243 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 255 Alternator to Starter Cable (Qty 1)
- 257 Temperature Sender- 2012 Gauge (Qty 1)
- 258 Pressure Sender-2012 Gauge (Qty 1)
- 261 Enginaire Canister VLR-Complet (Qty 1)
- 271 2019 Diesel Motor Mount--Orange (Qty 2)
-
110#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
112#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
114#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
115#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
116#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
118#020-2000-00
3/32 X 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-
124#024-0070-00
8mm x 1/8 Adaptor
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
125#024-2052-00
2019 Outlaw Renegade Pump Fitting 90 Degree
Qty Used: 4Regular price $11.66 USDRegular priceUnit price per
-
127#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
128#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-
135#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
156#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
168#032-4050-00
Rubber Compression Mount
Qty Used: 4Regular price $71.52 USDRegular priceUnit price per
-
169#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 4Regular price $15.91 USDRegular priceUnit price per
-
172#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
175#034-9000-00
ZT and ACS Handle Spring
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
176#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
176.1#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
176.2#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
176.3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
176.4#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
176.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
176.6#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
176.7#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
178#039-1010-00
Throttle Bracket--Plated
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
179#039-1015-00
Radiator Hose Clamp Bracket--Plated
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
180#039-1025-00
2019 Diesel Muffler Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
183#039-6950-98
2019 Renegade Belt Tensioner LH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
184#039-6950-99
2019 Renegade Pump Belt Tensioner RH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
186#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
187#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
189195.3196.3#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
195#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
195.2196.2#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
196#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
-
197#051-3003-00
2019 Diesel Radiator Hose Upper Dayco#71796
Qty Used: 1Regular price $46.38 USDRegular priceUnit price per
-
198#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-
199#051-3005-00
2019 Diesel Radiator Hose Lower Dayco# 70808
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
200#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 4Regular price $51.07 USDRegular priceUnit price per
-
205#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
208#057-5915-00
Pump Plate Clip Nut Holder--Plated
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
209#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
213#063-2010-00
Caterpillar Oil Filter
Qty Used: 1Regular price $28.99 USDRegular priceUnit price per
-
231#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
232#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
236#072-2002-00
2-1/2 Hose Clamp
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
237#072-2003-00
1 1/8 Hose Clamp
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
238#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
243#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
255#086-0003-00
Alternator to Starter Cable
Qty Used: 1Regular price $7.08 USDRegular priceUnit price per
-
257#086-7003-00
Temperature Sender- 2012 Gauge
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
258#086-7004-00
Pressure Sender-2012 Gauge
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
261#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
271#201-8030-00
2019 Diesel Motor Mount--Orange
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
12#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
13#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 11Regular price $1.49 USDRegular priceUnit price per
-
15#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
18#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
21#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
24#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
27#014-1053-00
2019 Plastic Mesh Hose Loom
Qty Used: 2Regular price $8.99 USDRegular priceUnit price per
-
30#014-5060-00
Pump Cover--RH-Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
31#014-5061-00
Pump Cover--LH-Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
36#015-0010-50
35/28 CAT Muffler Gasket
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
38.5#015-0096-08
Starter for the Perkins 1100cc Diesel
Qty Used: 1Regular price $559.99 USDRegular priceUnit price per
-
38.16#015-0096-09
Alternator for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
38.17#041-0010-00
Caterpillar Fan Belt
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
38.23#015-0096-06
Oil Pressure Sensor for the 015-0096-00/ 015-0097-
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
38.24#015-0096-07
Coolant Temperature Sensor for 015-0096-00 &
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
38.26#015-0096-05
Fuel Shutdown Solenoid for the Perkins 1100cc
Qty Used: 1Regular price $1,199.99 USDRegular priceUnit price per
