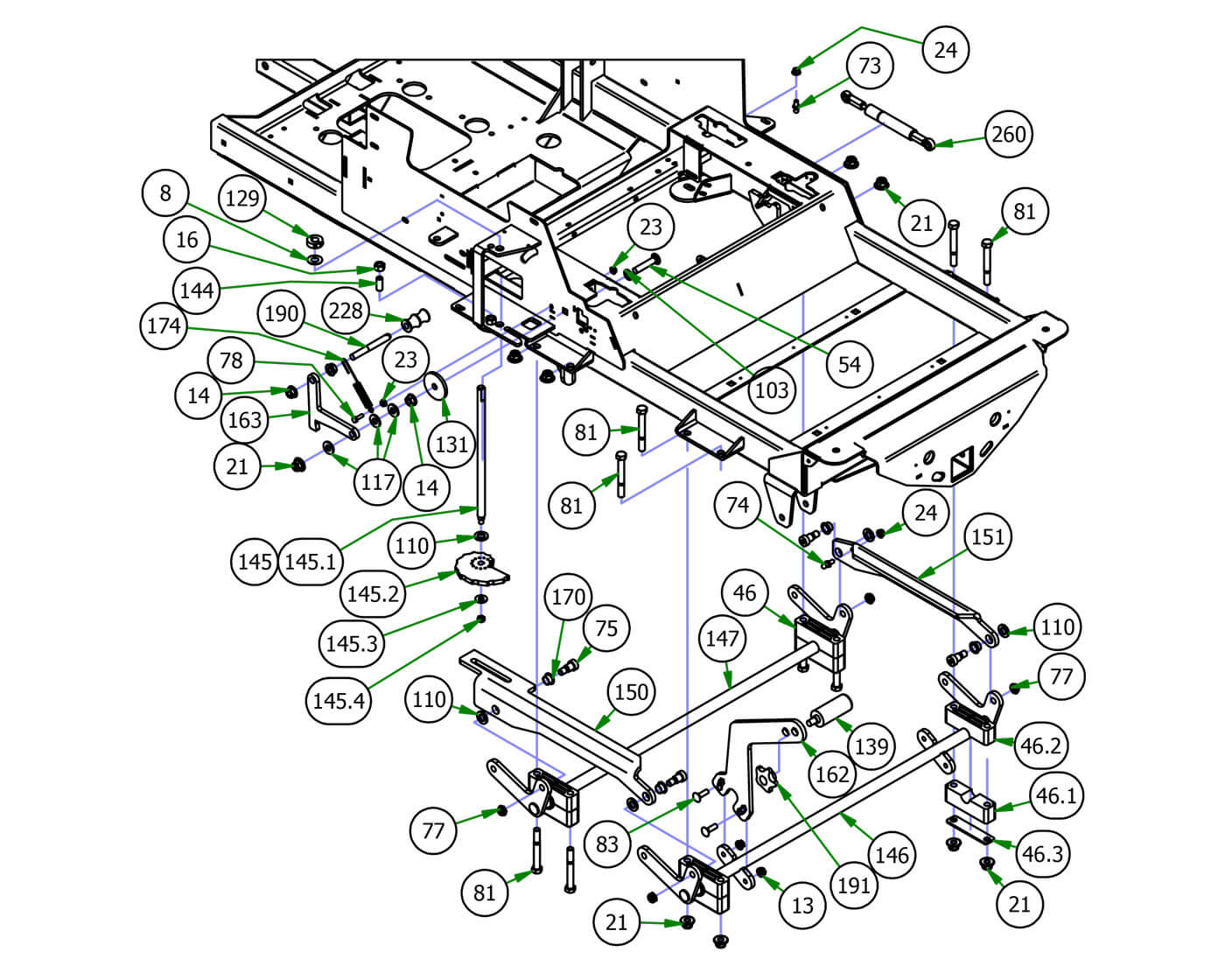

Actuators & Travel Lock
Parts Index
- 8 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 13 3/8 Nylock Flange Nut (Qty 2)
- 14 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 16 1/2-13 Hex Nuts Zinc (Qty 1)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 23 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 24 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 46 2015 Outlaw Pillow Block (Qty 4)
- 46.1 Two Piece Pillow Block-Male (Qty 1)
- 46.2 Two Piece Pillow Block-Female (Qty 1)
- 46.3 Two Piece Pillow Block-Plate (Qty 1)
- 54 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 73 10mm Damper Ball Stud- (Qty 1)
- 74 10mm Ball Stud (Long Thread) (Qty 1)
- 75 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 77 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 78 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 81 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 83 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 103 .517 Square Hole Round Washer (Qty 1)
- 110 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 117 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 129 Split Collar (Qty 1)
- 131 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 139 Knurled Foot Pedal (Qty 1)
- 144 Deck Height Cam Plunger (Qty 1)
- 145 R-Series Deck Height Dial Rod Assy (Qty 1)
- 145.1 2019 "R" Series Dial Rod (Qty 1)
- 145.2 Deck Height Cam Plate (Qty 1)
- 145.3 3/8 USS Flat Washer Zinc (Qty 1)
- 145.4 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 146 Actuator Bar (Front) (Qty 1)
- 147 Actuator Bar (Rear) (Qty 1)
- 150 2019 Actuator Linkage-Right-Orange (Qty 1)
- 151 2019 Actuator Linkage-Left-Orange (Qty 1)
- 162 Foot Lift Upright Lever (Qty 1)
- 163 Deck Travel Lock Lever--Plated (Qty 1)
- 170 Bronze Bushing - SF-2024-8 (Qty 4)
- 174 Brake Spring (Qty 1)
- 190 Seat Bracket Pin - 2008 Models (Qty 1)
- 191 Star Knob 1/2-13 (Qty 1)
- 228 Grip (Travel Lock) (Qty 1)
- 233 2019 Horizontal Diesel Frame (Qty 1)
- 260 Dampener (250lbs) (Qty 1)
-
8#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
13#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
14#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
16#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
21#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
23#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
24#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
46#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
46.1#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
46.2#017-9050-00
Two Piece Pillow Block-Female
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
46.3#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
54#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
73#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
74#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
75#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
77#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
78#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
81#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
83#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
103#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
110#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
117#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
129#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
131#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
139#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
144#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
145#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
145.1#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
145.2#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
145.3#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
145.4#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
146#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
147#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
150#028-6075-00
2019 Actuator Linkage-Right-Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
151#028-6076-00
2019 Actuator Linkage-Left-Orange
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
162#031-0120-00
Foot Lift Upright Lever
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
163#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
170#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
174#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
190#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
191#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
228#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
260#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
