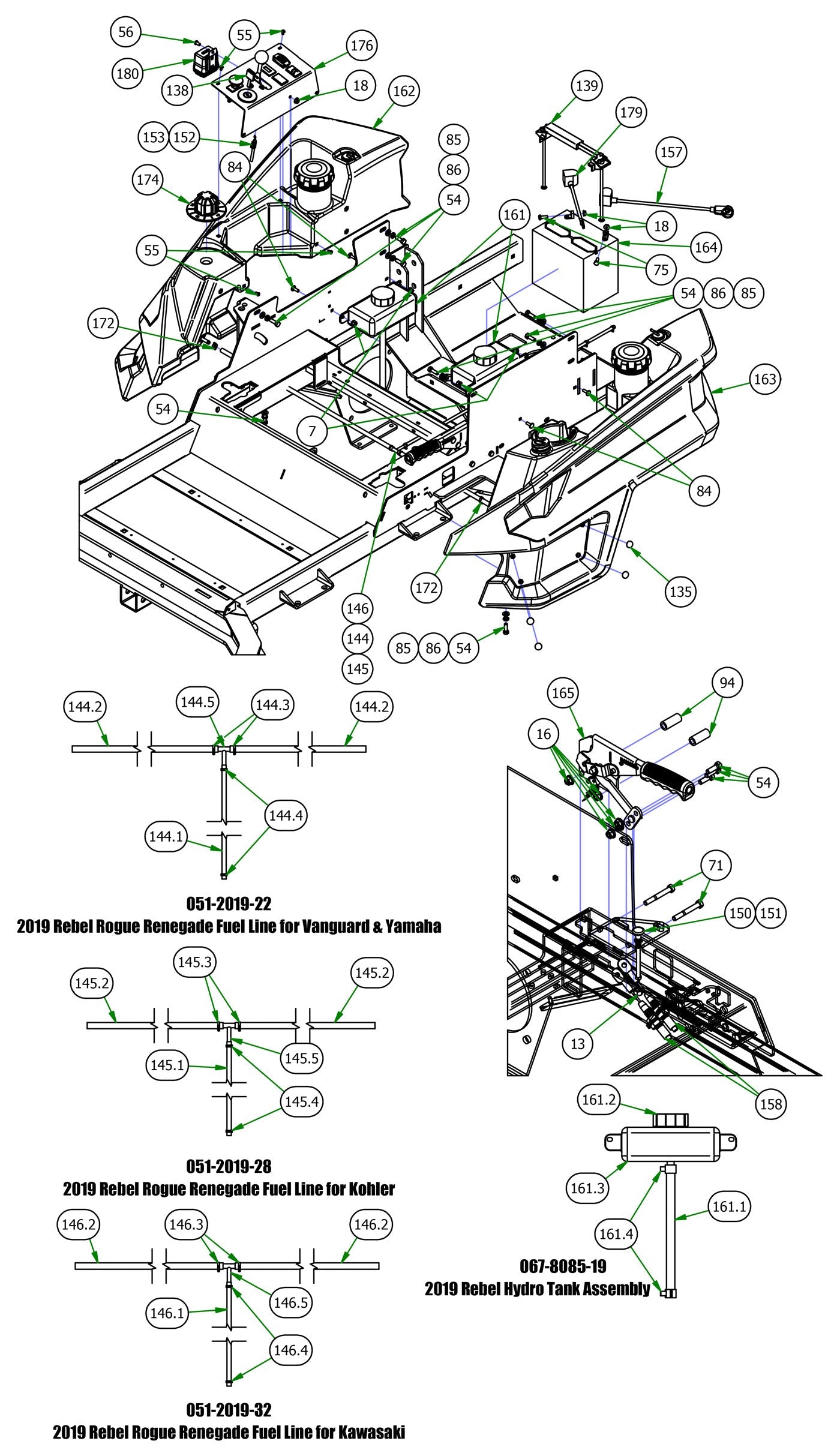

Tanks & Battery
Parts Index
- 7 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 13 3/8-24 Hex Nut Zinc (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 5)
- 18 1/4-20 Hex Flange Nuts Zinc w/ (Qty 4)
- 54 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 11)
- 55 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 56 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 71 5/16 x 2 1/2 Bolt (Qty 2)
- 75 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 84 1/4 x 3/4 Carriage Bolt (Qty 4)
- 85 5/16 USS Flat Washer Zinc (Qty 8)
- 86 5/16 Lock washer Zinc (Qty 8)
- 94 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 135 3/16 x .48 Christmas Tree Nylon Black (Qty 8)
- 138 Ignition Key (Qty 1)
- 139 Battery Hold Down (Plastic) (Qty 1)
- 144 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 144.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 144.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 144.3 5/8 Fuel Line Clamp (Qty 2)
- 144.4 1/4 Fuel Line Clamp (Qty 2)
- 144.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 145 2019 R-Series Fuel Line for Kohler (Qty 1)
- 145.1 28" 1/4 Fuel Line No Clamp (Qty 1)
- 145.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 145.3 5/8 Fuel Line Clamp (Qty 2)
- 145.4 1/4 Fuel Line Clamp (Qty 2)
- 145.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 146 2019 Rebel Rogue Kaw Fuel Line (Qty 1)
- 146.1 32" 1/4" Fuel Line No Clamps (Qty 1)
- 146.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 146.3 5/8 Fuel Line Clamp (Qty 2)
- 146.4 1/4 Fuel Line Clamp (Qty 2)
- 146.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 150 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 151 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 152 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 153 2019 Throttle Cable (Qty 1)
- 157 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 158 Long Brake Cable (Qty 2)
- 161 2019 Rebel Hydro Tank Assembly (Qty 2)
- 161.1 2019 7.5" Outlaw Gen2 Hydro Tank Hose (Qty 1)
- 161.2 ZT Hydraulic Tank Cap (Qty 1)
- 161.3 Expansion Tank for Outlaw (Qty 1)
- 161.4 5/8" Wire Clamp-Outlaw Only (Qty 2)
- 162 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 163 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 164 Battery - All models except Renegade and Revolt (Qty 1)
- 165 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 169 2019 Rigid Frame (Qty 1)
- 172 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 174 Deck Height Dial (1.5 - 5.5) (Qty 1)
- 176 Rebel/Rogue Control Panel Assy (Qty 1)
- 179 Rebel, Rogue Ground Wire (Qty 1)
- 180 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
13#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
18#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
54#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 11Regular price $0.00 USDRegular priceUnit price per
-
55#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
56#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
71#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
75#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
84#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
85#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
86#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
94#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
135#040-6081-00

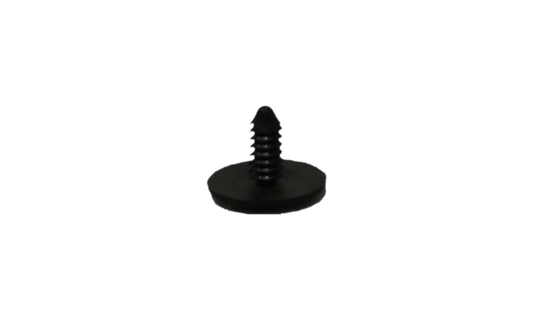

3/16 x .48 Christmas Tree Nylon Black
Qty Used: 8Regular price $2.64 USDRegular priceUnit price per
-
138#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
139#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
144#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
144.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
144.2145.2146.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
144.3145.3146.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
144.4145.4146.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
144.5145.5146.5#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
145#051-2019-28
2019 R-Series Fuel Line for Kohler
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
145.1#051-8067-28
28\" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
146#051-2019-32
2019 Rebel Rogue Kaw Fuel Line
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
146.1#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
150#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
151#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
152#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
153#055-8022-00
2019 Throttle Cable
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
157#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
158#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
161#067-8085-19
2019 Rebel Hydro Tank Assembly
Qty Used: 2Regular price $46.65 USDRegular priceUnit price per
-
161.1#051-0019-00
2019 7.5" Outlaw Gen2 Hydro Tank Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
161.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
161.3#067-8085-00
Expansion Tank for Outlaw
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
161.4#072-8074-00
5/8" Wire Clamp-Outlaw Only
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
162#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
163#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
164#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
165#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
169#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
172#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
174#077-9002-00
Deck Height Dial (1.5 - 5.5)
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
176#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
179#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
180#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
