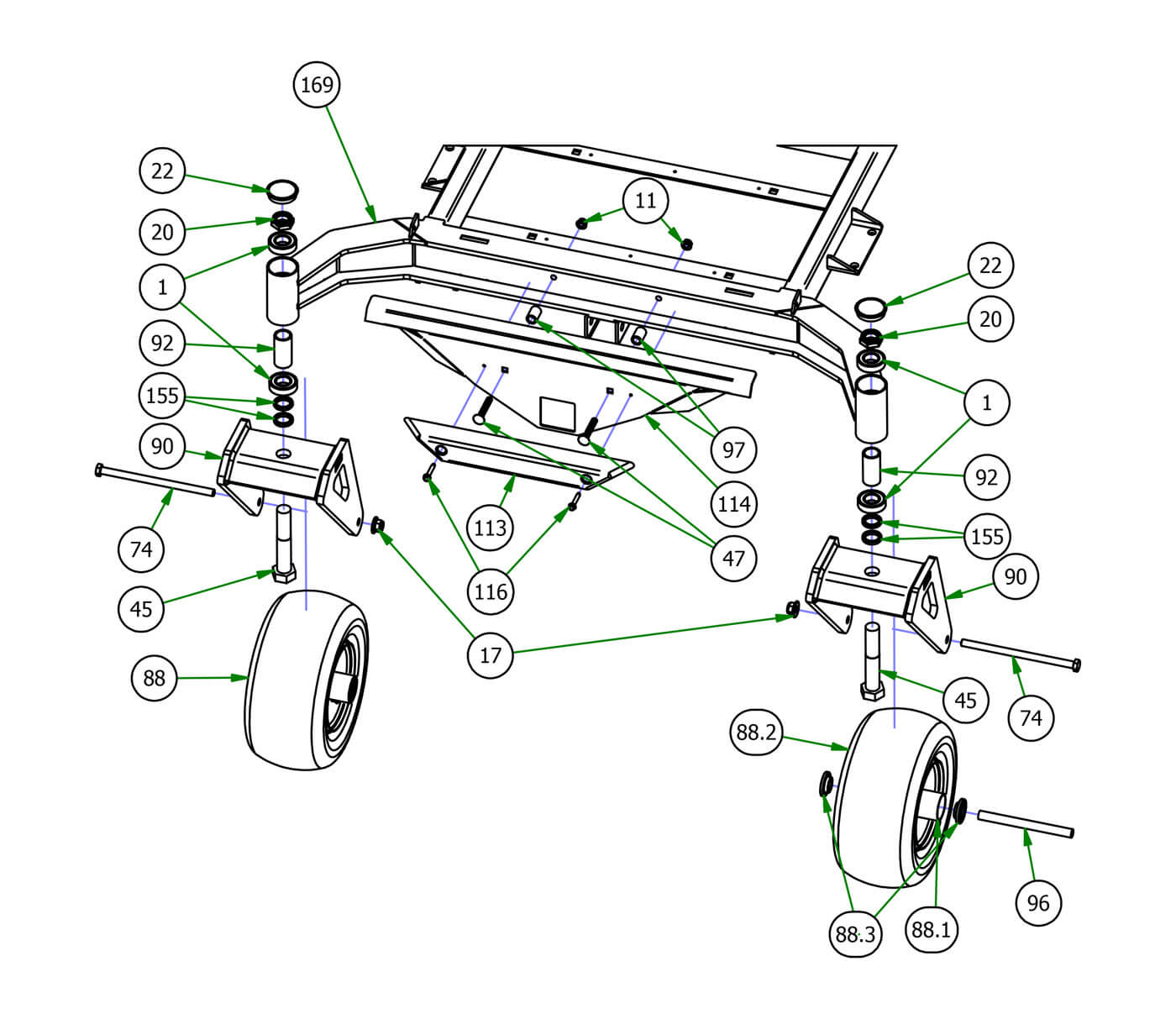

Front Forks
Parts Index
- 1 Caster Bearing (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 20 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 22 Bearing Retainer Cap (Qty 2)
- 45 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 47 3/8 x 2 1/2 Carriage Bolt (Qty 2)
- 74 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 88 13x6.50-6 LARGE BORE-Black (Qty 2)
- 88.1 2015 Outlaw Black Front Wheel (Qty 1)
- 88.2 13 x 6.50 - 6 Tire (Qty 1)
- 88.3 1 3/4" Bearing-Large Bore (Qty 2)
- 90 2019 Rebel Front Fork Weldment (Qty 2)
- 92 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 96 Front Wheel Spanner-All Models (Qty 2)
- 97 .502x.750x1.130 Length Spacer (Qty 1)
- 113 Bumper (Qty 1)
- 114 Rigid Front Bumper Plate--Orange (Qty 1)
- 116 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 155 Spacer ( Front Fork and Suspension ) (Qty 4)
- 169 2019 Rigid Frame (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
20#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
22#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
45#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
47#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
74#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
88#022-3085-00
13x6.50-6 LARGE BORE-Black
Qty Used: 2Regular price $112.99 USDRegular priceUnit price per
-
88.1#022-3090-00
2015 Outlaw Black Front Wheel
Qty Used: 1Regular price $132.99 USDRegular priceUnit price per
-
88.2#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
88.3#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
90#023-0030-00
2019 Rebel Front Fork Weldment
Qty Used: 2Regular price $139.31 USDRegular priceUnit price per
-
92#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
96#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
97#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
-
114#029-8019-00
Rigid Front Bumper Plate--Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
116#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
155#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 4Regular price $5.83 USDRegular priceUnit price per
-
169#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
