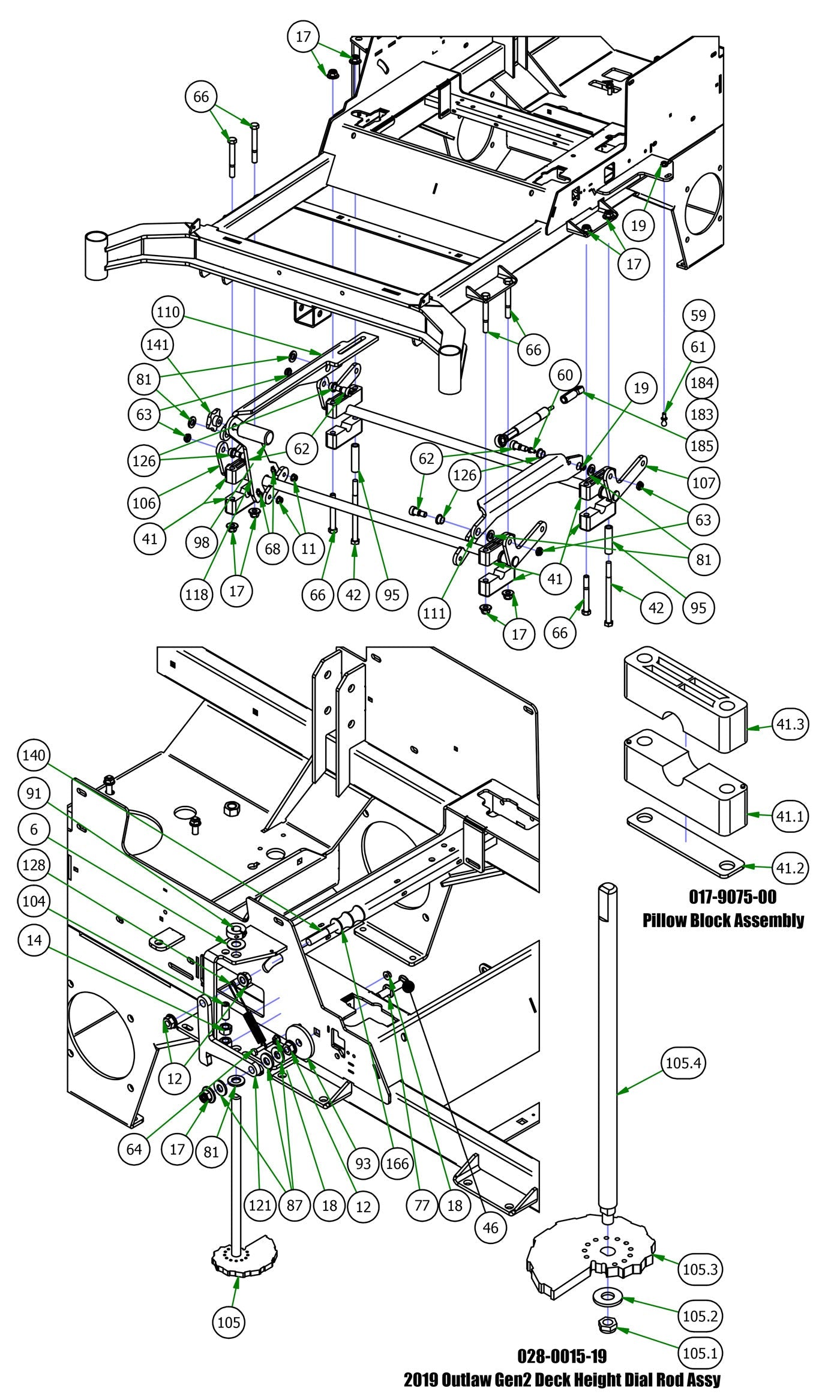

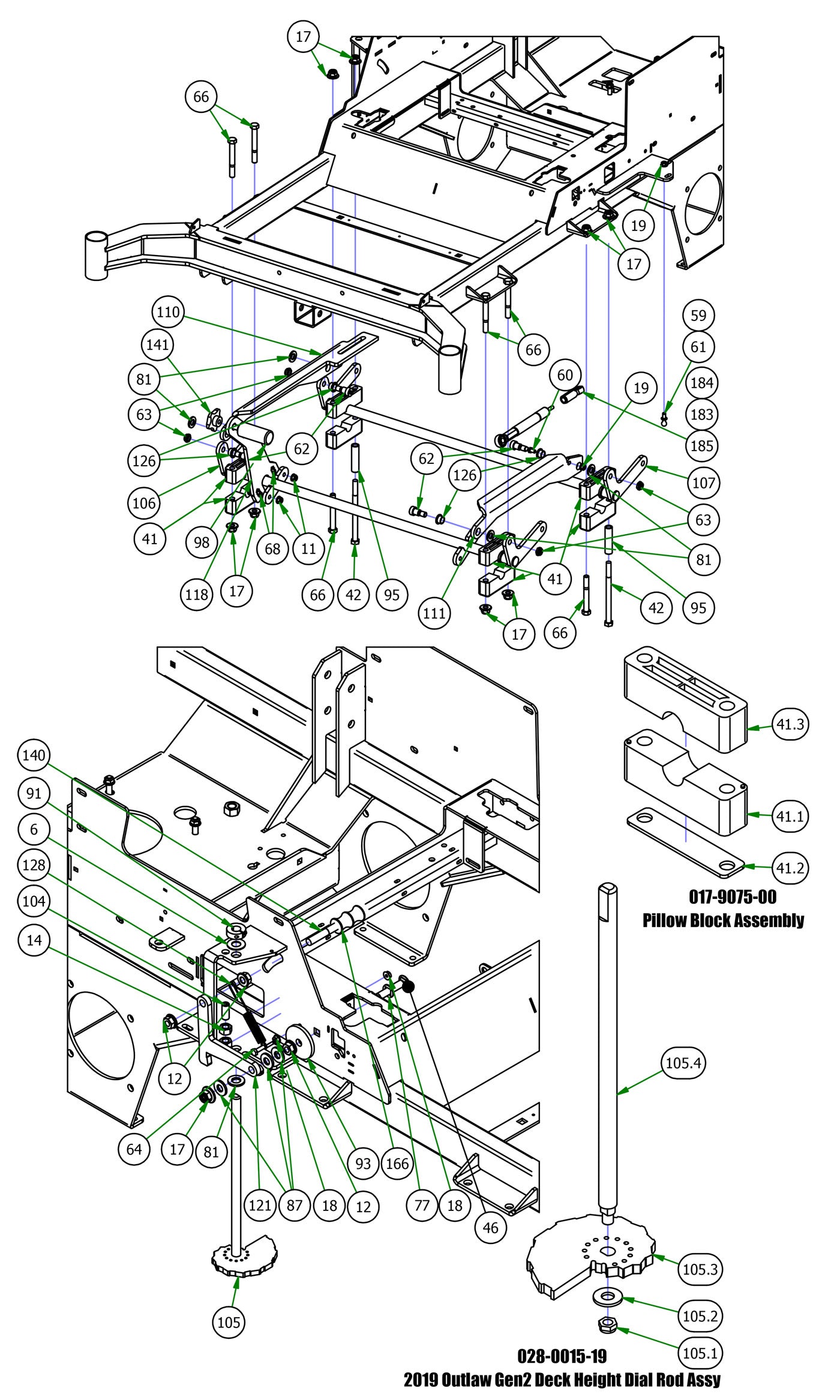

Deck Control Assembly
Parts Index
- 6 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 14 1/2-13 Hex Nuts Zinc (Qty 1)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 18 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 19 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 41 2015 Outlaw Pillow Block (Qty 4)
- 41.1 Two Piece Pillow Block-Male (Qty 1)
- 41.2 Two Piece Pillow Block-Plate (Qty 1)
- 41.3 Two Piece Pillow Block-Female (Qty 1)
- 42 1/2-13 X 7 Hex Bolt - Grade 5 (Qty 2)
- 46 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 59 13mm Ball Stud (Qty 1)
- 60 10mm Damper Ball Stud- (Qty 1)
- 61 10mm Ball Stud (Long Thread) (Qty 1)
- 62 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 63 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 64 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 66 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 6)
- 68 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 77 .517 Square Hole Round Washer (Qty 1)
- 81 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 87 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 91 Split Collar (Qty 1)
- 93 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 95 2019 Deck Stop Spacer (Qty 2)
- 98 Knurled Foot Pedal (Qty 1)
- 104 Deck Height Cam Plunger (Qty 1)
- 105 R-Series Deck Height Dial Rod Assy (Qty 1)
- 105.1 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 105.2 3/8 USS Flat Washer Zinc (Qty 1)
- 105.3 Deck Height Cam Plate (Qty 1)
- 105.4 2019 "R" Series Dial Rod (Qty 1)
- 106 Actuator Bar (Front) (Qty 1)
- 107 Actuator Bar (Rear) (Qty 1)
- 110 2019 Actuator Linkage-Right-Orange (Qty 1)
- 111 2019 Actuator Linkage-Left-Orange (Qty 1)
- 118 Foot Lift Upright Lever--Orange (Qty 1)
- 121 Deck Travel Lock Lever--Plated (Qty 1)
- 126 Bronze Bushing - SF-2024-8 (Qty 4)
- 128 Brake Spring (Qty 1)
- 140 Seat Bracket Pin - 2008 Models (Qty 1)
- 141 Star Knob 1/2-13 (Qty 1)
- 166 Grip (Travel Lock) (Qty 1)
- 169 2019 Rigid Frame (Qty 1)
- 183 Dampener (200lbs) (Qty 1)
- 184 Dampener (250lbs) (Qty 1)
- 185 Dampener (300lbs) (Qty 1)
-
6#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
18#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
41#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
41.1#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
41.2#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
41.3#017-9050-00
Two Piece Pillow Block-Female
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
42#018-0004-00
1/2-13 X 7 Hex Bolt - Grade 5
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
46#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
59#018-2049-00
13mm Ball Stud
Qty Used: 1Regular price $4.39 USDRegular priceUnit price per
-
60#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
61#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
62#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
63#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
64#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
66#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 6Regular price $3.99 USDRegular priceUnit price per
-
68#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
77#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
81#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
87#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
91#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
93#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
95#025-0033-00
2019 Deck Stop Spacer
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
98#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
104#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
105#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
105.1#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
105.2#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
105.3#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
105.4#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
106#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
107#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
110#028-6075-00
2019 Actuator Linkage-Right-Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
111#028-6076-00
2019 Actuator Linkage-Left-Orange
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
118#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
121#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
126#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
128#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
140#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
141#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
166#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
169#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
183#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
184#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
185#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
