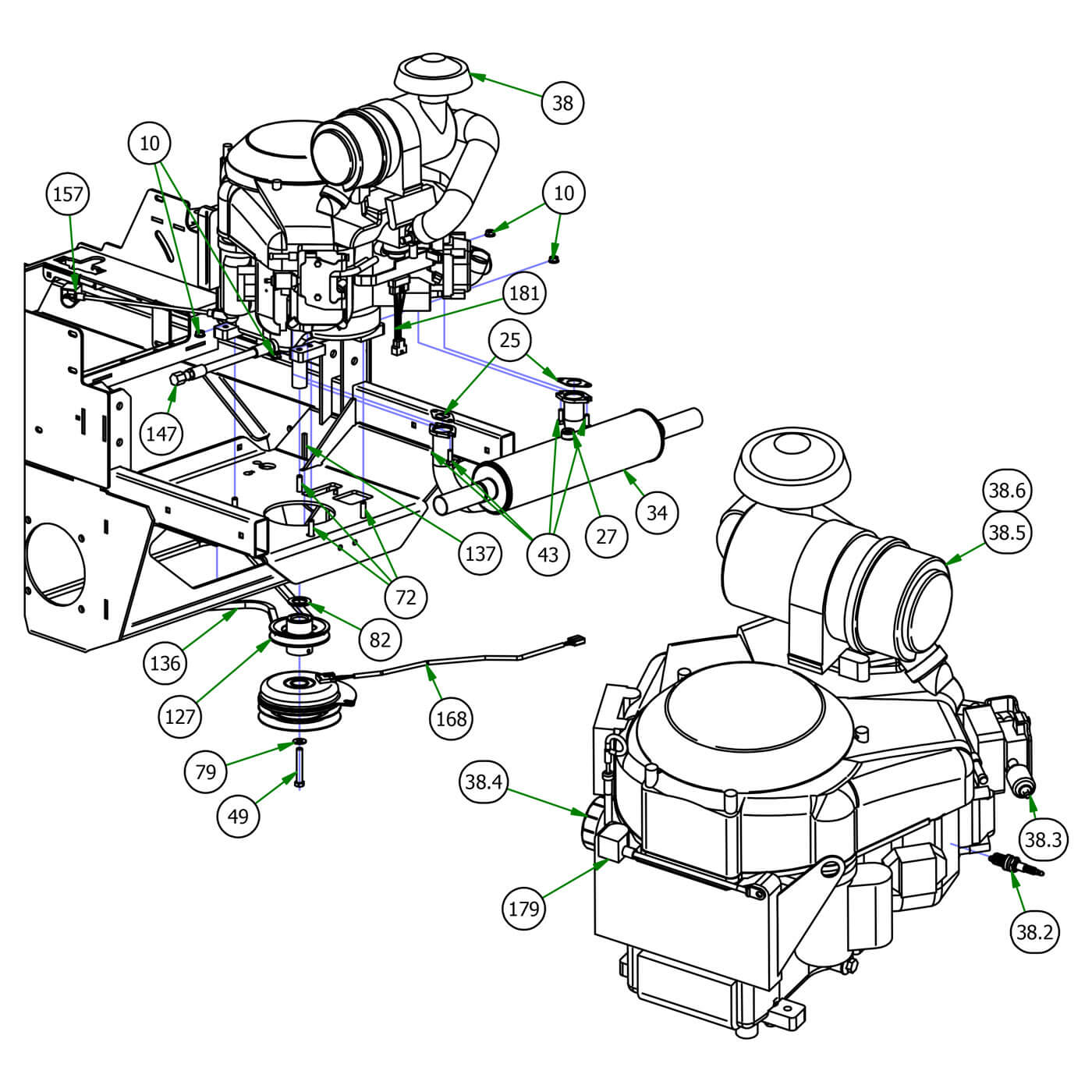

993cc Vanguard
Parts Index
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 25 Exhaust Gasket for 23 (Qty 2)
- 27 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 34 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 38 36hp Briggs Vanguard Engine (Qty 1)
- 38.2 Spark Plug-Kohler/Briggs (Qty 1)
- 38.3 Universal Inline Fuel Filter (Qty 1)
- 38.4 Briggs Oil Filter (Qty 1)
- 38.5 Canister Air Fil Outer2010&Old (Qty 1)
- 38.6 Canister Air Filter - Inner (Qty 1)
- 43 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 49 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 72 3/8 x 1 1/2 Bolt (Qty 4)
- 79 3/8 USS Flat Washer Zinc (Qty 1)
- 82 1.140x1.750x .132 Flat Washer (Qty 1)
- 127 4 3/4 Motor Pulley (Qty 1)
- 136 2019 & up Rebel Pump Belt (Qty 1)
- 137 1/4 X 2 Square Key Stock (Qty 1)
- 147 14mm Drain Hose-36hp Vanguard (Qty 1)
- 157 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 167 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 168 Clutch Pigtail (Qty 1)
- 169 2019 Rigid Frame (Qty 1)
- 179 Rebel, Rogue Ground Wire (Qty 1)
- 181 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
25#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
27#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
34#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
38#015-3600-00
36hp Briggs Vanguard Engine
Qty Used: 1Regular price $3,979.44 USDRegular priceUnit price per
-
38.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
38.3#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38.4#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
38.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
38.6#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
43#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
49#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
72#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
79#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
82#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
127#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
136#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
137#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
147#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
157#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
168#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
169#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
179#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
181#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
