824cc Yamaha

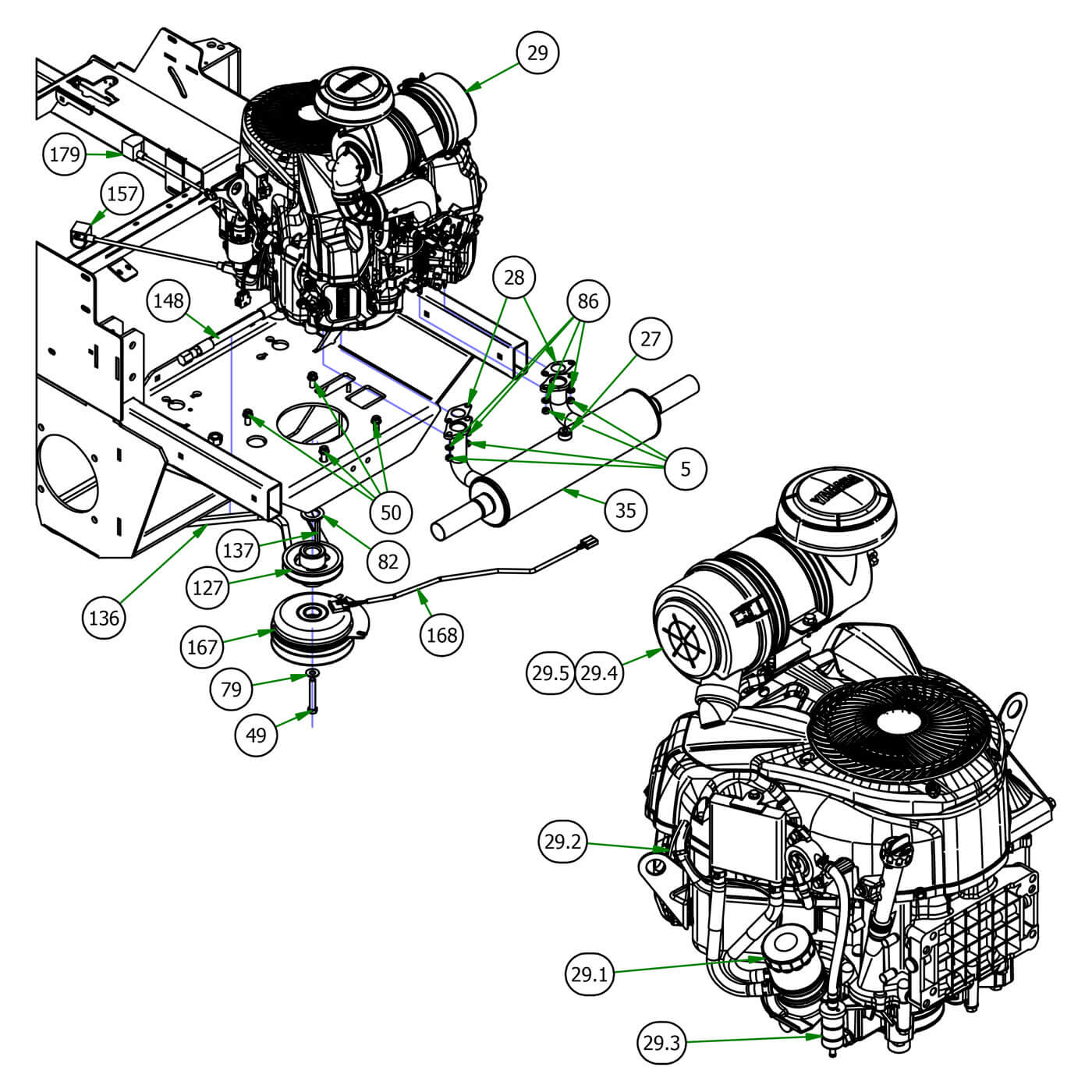

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 27 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 28 2017 Yamaha Exhuast Gasket (Qty 2)
- 29 2018 Yamaha Engine-27.5hp Carbureted (Qty 1)
- 29.1 2017 Yamaha Oil Filter (Qty 1)
- 29.2 2017 Yamaha Spark Plug (Qty 2)
- 29.3 OBSOLETE USE 063-6000-00 (Qty 1)
- 29.4 Canister Air Fil Outer2010&Old (Qty 1)
- 29.5 Canister Air Filter - Inner (Qty 1)
- 35 2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler (Qty 1)
- 49 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 50 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 72 3/8 USS Flat Washer Zinc (Qty 1)
- 79 3/8 USS Flat Washer Zinc (Qty 1)
- 82 1.140x1.750x .132 Flat Washer (Qty 1)
- 86 5/16 Lock washer Zinc (Qty 4)
- 127 4 3/4 Motor Pulley (Qty 1)
- 136 2019 & up Rebel Pump Belt (Qty 1)
- 137 1/4 X 2 Square Key Stock (Qty 1)
- 148 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 157 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 167 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 168 Clutch Pigtail (Qty 1)
- 169 2019 Rigid Frame (Qty 1)
- 143 Rebel, Rogue Ground Wire (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
27#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
28#015-0053-01
2017 Yamaha Exhuast Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
29#015-0076-00
2018 Yamaha Engine-27.5hp Carbureted
Qty Used: 1Regular price $3,581.37 USDRegular priceUnit price per
-
29.1#015-0053-02
2017 Yamaha Oil Filter
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
29.2#015-0053-06
2017 Yamaha Spark Plug
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
29.3#015-0053-21
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
29.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
29.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
35#015-1015-00
2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler
Qty Used: 1Regular price $108.90 USDRegular priceUnit price per
-
49#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
50#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7279#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
82#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
86#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
127#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
136#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
137#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
148#051-5403-00
Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
157#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
168#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
169#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
143#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
