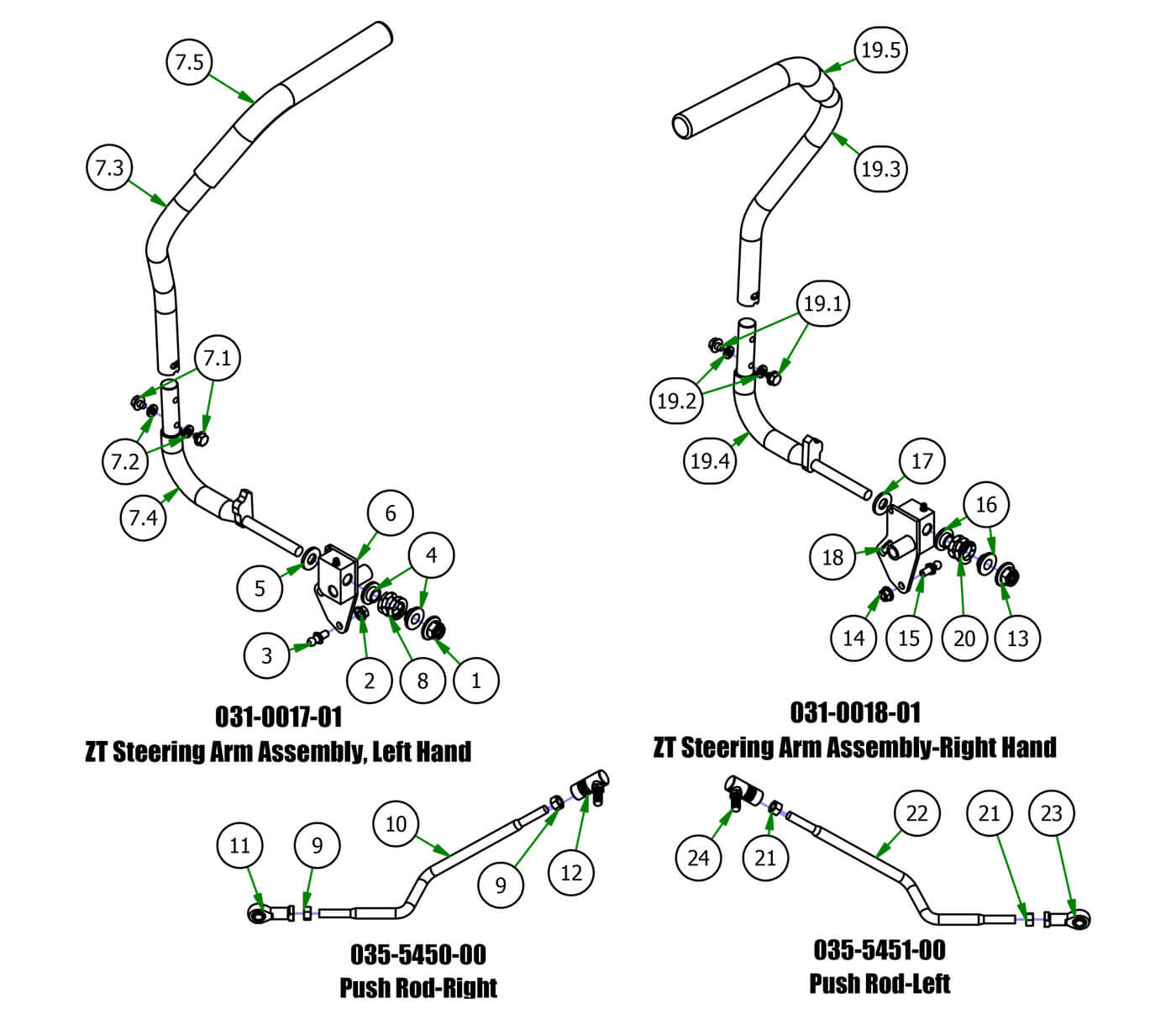

Steering Arm Assembly, Push Rods
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 3 10mm Damper Ball Stud- (Qty 1)
- 4 .515 ID Plastic Shoulder Washer (Qty 2)
- 5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 6 Drive Lever Housing LH (Qty 1)
- 7 Orange ZT Steering Arm Left- (Qty 1)
- 7.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 7.2 5/16 Lock washer Zinc (Qty 2)
- 7.3 Steering Arm Left - 5" Tubing (Qty 1)
- 7.4 Steering Arm Elbow- Left (Qty 1)
- 7.5 Rubber Steering Arm (Qty 1)
- 8 Drive Lever Housing Spring (Qty 1)
- 9 3/8-24 Hex Nut Zinc (Qty 2)
- 10 Push Rod RH (Assembly) (Qty 1)
- 11 Spherical Rod End (Qty 1)
- 12 Quick Release Ball Joint (Qty 1)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 14 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 15 10mm Damper Ball Stud- (Qty 1)
- 16 .515 ID Plastic Shoulder Washer (Qty 2)
- 17 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 18 Drive Lever Housing RH (Qty 1)
- 19 Orange ZT Steering Arm-Right (Qty 1)
- 19.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 19.2 5/16 Lock washer Zinc (Qty 2)
- 19.3 Steering Arm Right - 5" Tubing (Qty 1)
- 19.4 Steering Arm Elbow - Right (Qty 1)
- 19.5 Rubber Steering Arm (Qty 1)
- 20 Drive Lever Housing Spring (Qty 1)
- 21 3/8-24 Hex Nut Zinc (Qty 2)
- 22 Push Rod LH (Assembly) (Qty 1)
- 23 Spherical Rod End (Qty 1)
- 24 Quick Release Ball Joint (Qty 1)
-
113#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
214#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
315#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-

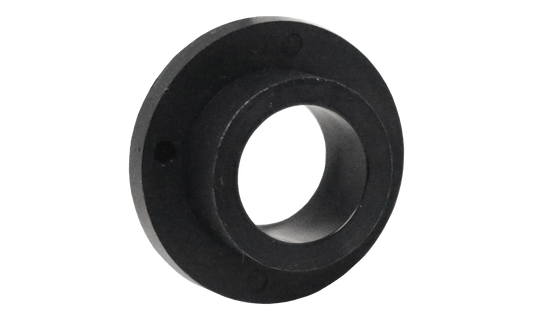

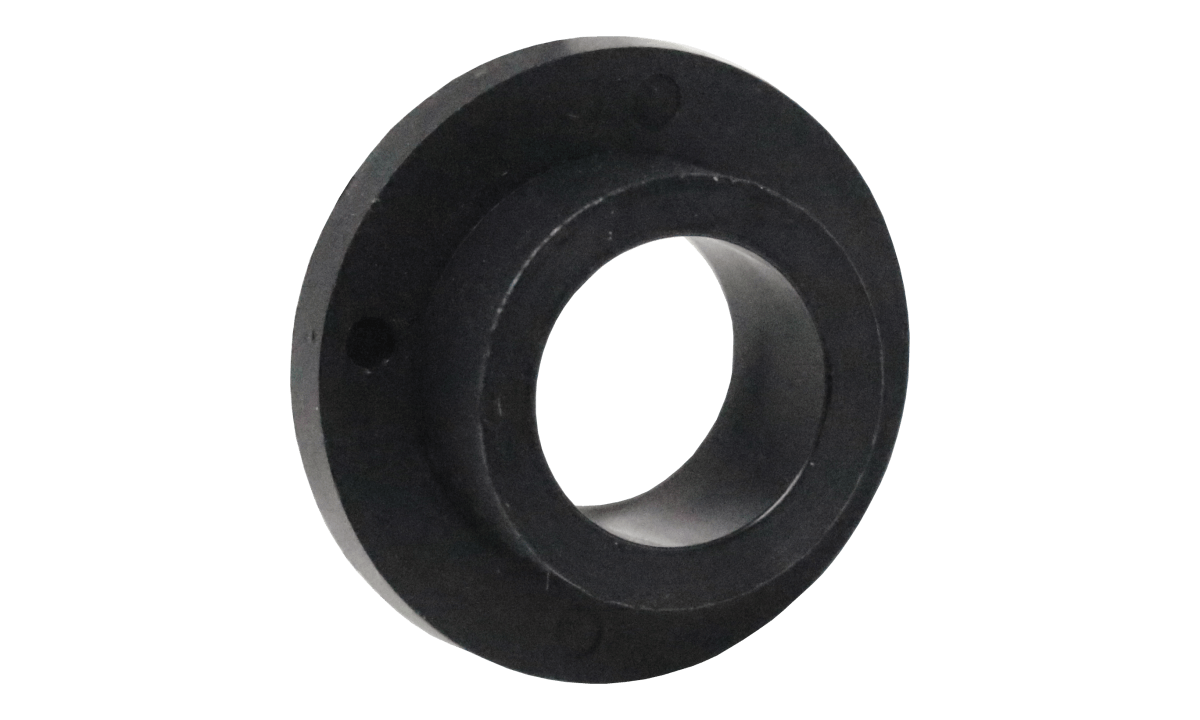

416#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
517#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
6#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
7#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
7.119.1#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
7.219.2#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7.3#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
7.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
7.519.5#069-4007-00
Rubber Steering Arm
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

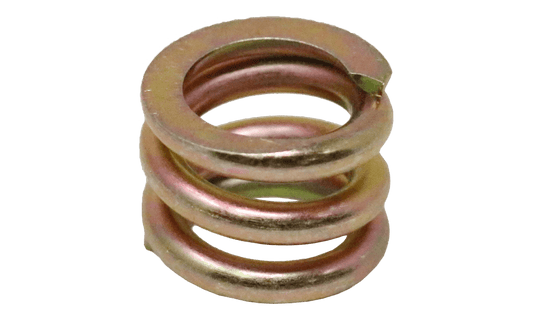

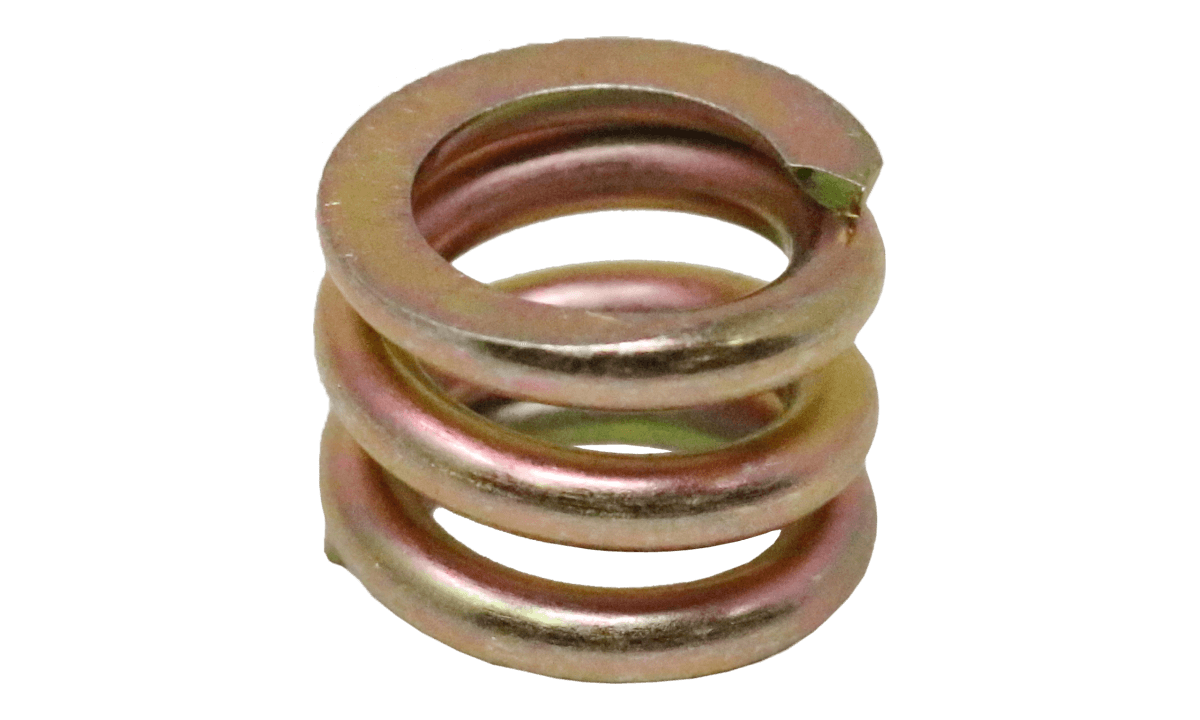

820#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
921#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-

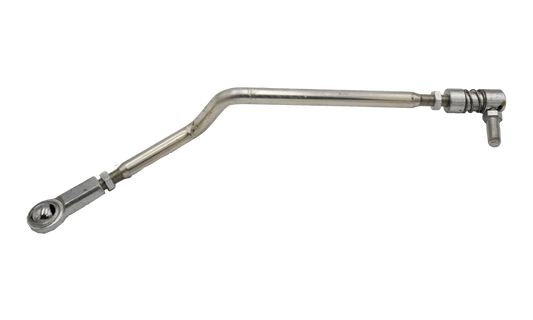

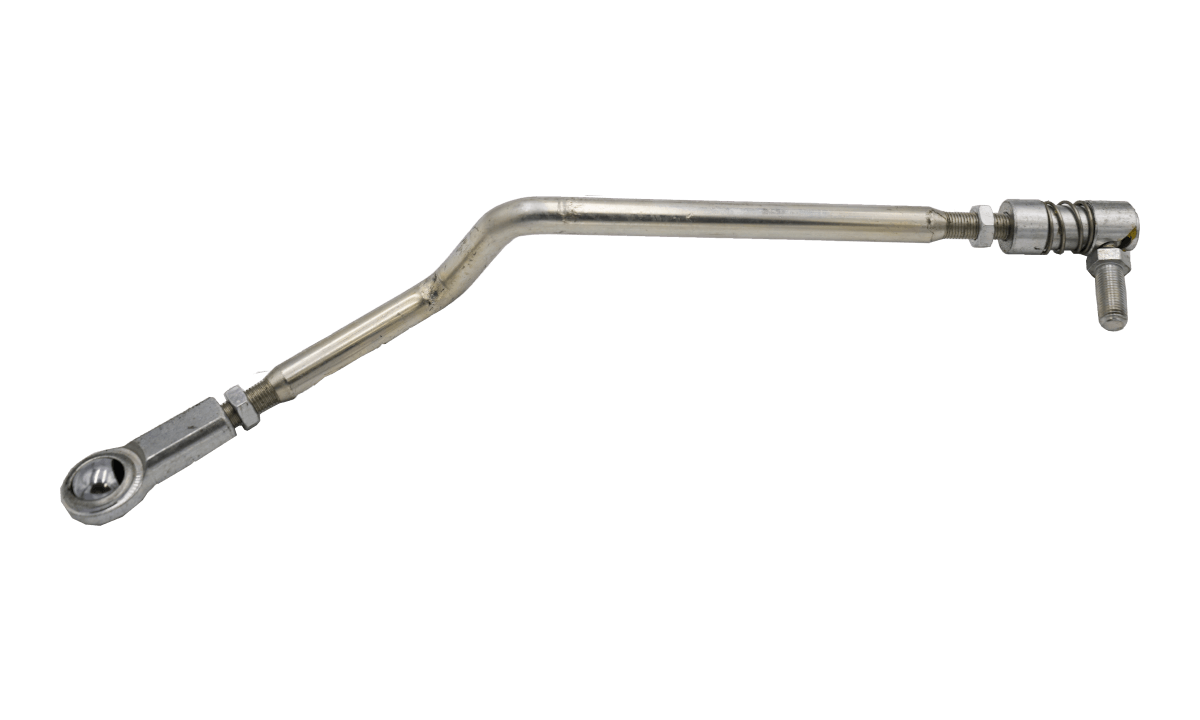

10#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
1123#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
1224#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-

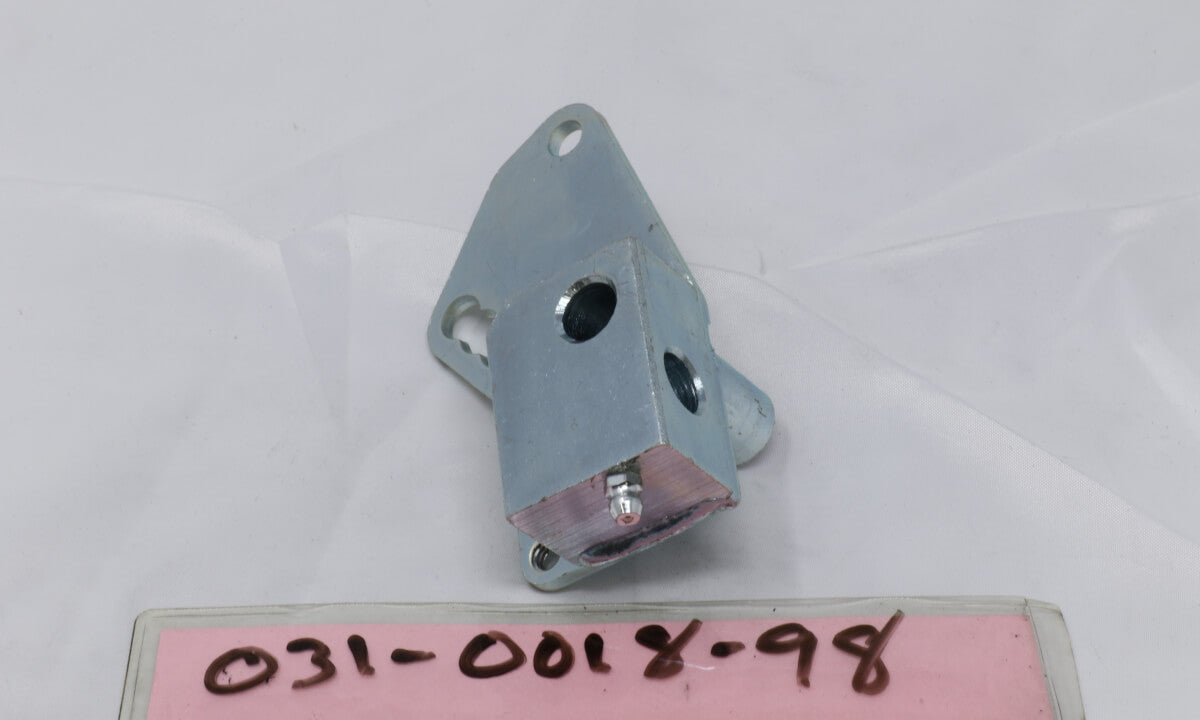

18#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
19#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
19.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
19.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-

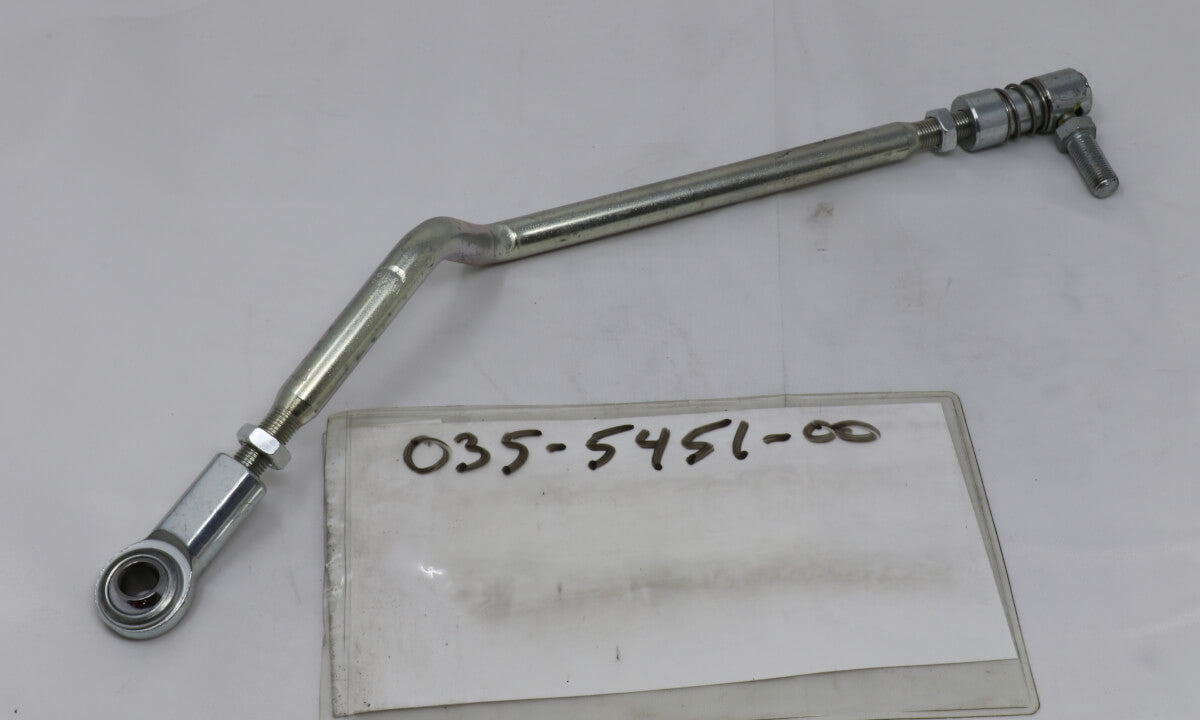

22#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
