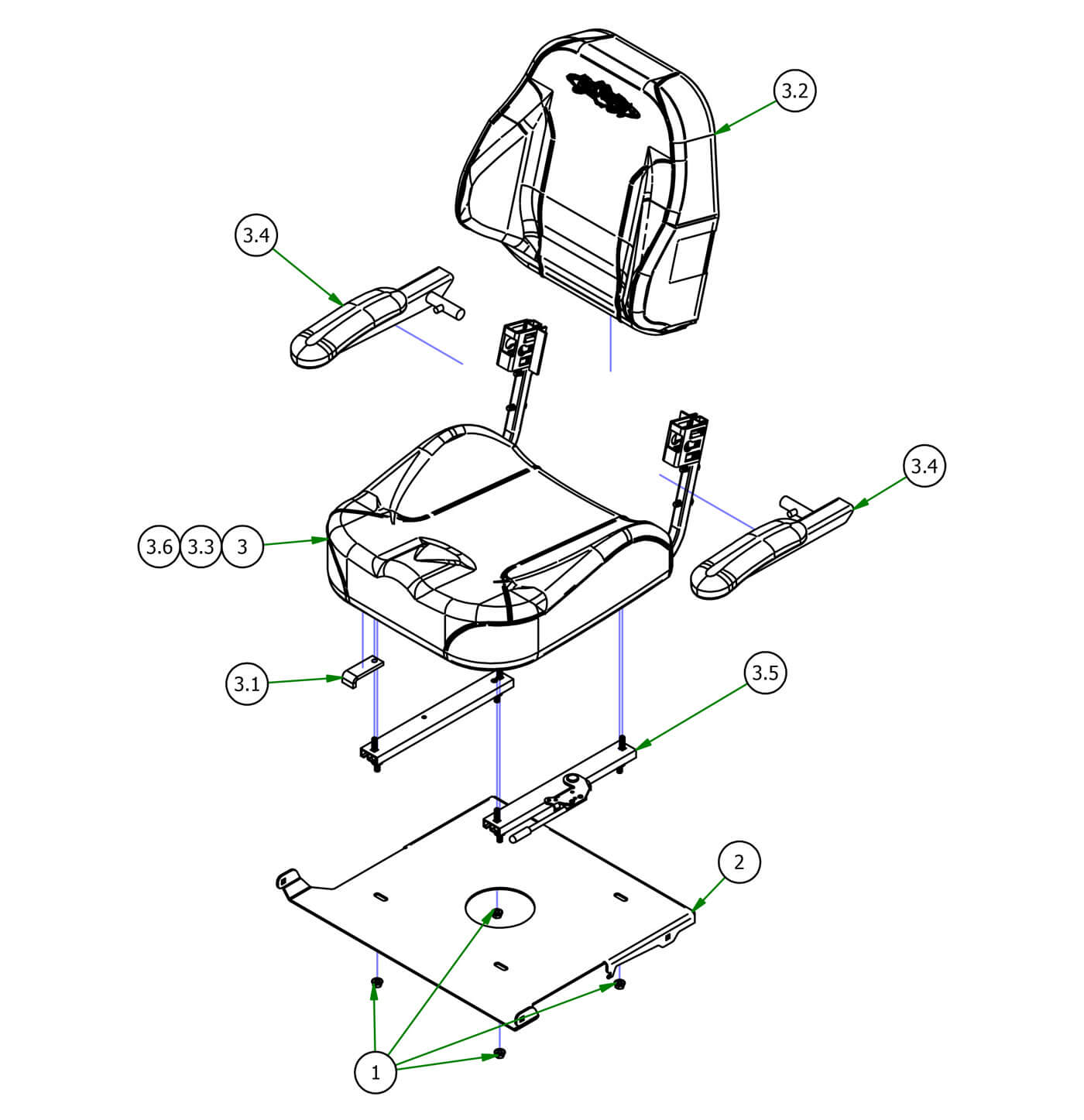

Seat Assembly (Kawasaki Magnum Only)
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 4)
- 2 Seat Plate 2016--Orange (Qty 1)
- 3 2017 ZT Seat/ 2019 Magnum Kaw (Qty 1)
- 3.1 Black Seat stop (Qty 1)
- 3.2 2017 ZT Back Cover For 071-2040-17 (Qty 1)
- 3.3 2017 ZT Seat Cover For 071-2040-17 (Qty 1)
- 3.4 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 3.5 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 3.6 2014 Magnum Seat Switch (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
3#071-2040-17
2017 ZT Seat/ 2019 Magnum Kaw
Qty Used: 1Regular price $529.99 USDRegular priceUnit price per
-
3.1#039-2157-00
Black Seat stop
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-

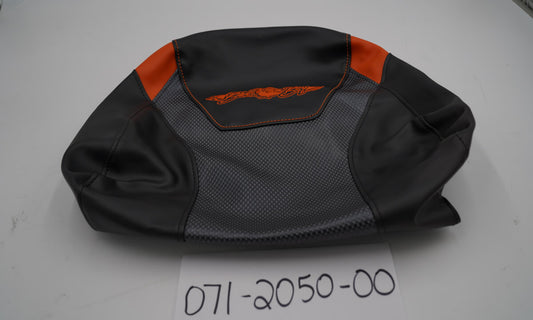

3.2#071-2050-00
2017 ZT Back Cover For 071-2040-17
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
3.3#071-2051-00
2017 ZT Seat Cover For 071-2040-17
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
3.4#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-

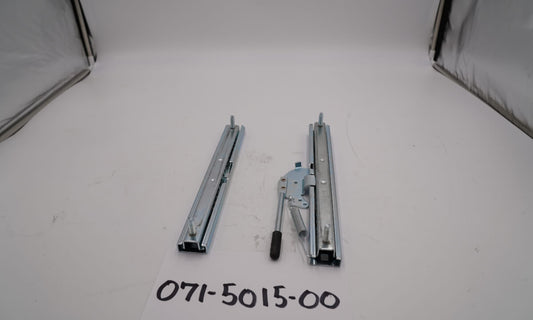

3.5#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
3.6#071-8062-00
2014 Magnum Seat Switch
Qty Used: 1Regular price $19.68 USDRegular priceUnit price per
