Honda GXV-630

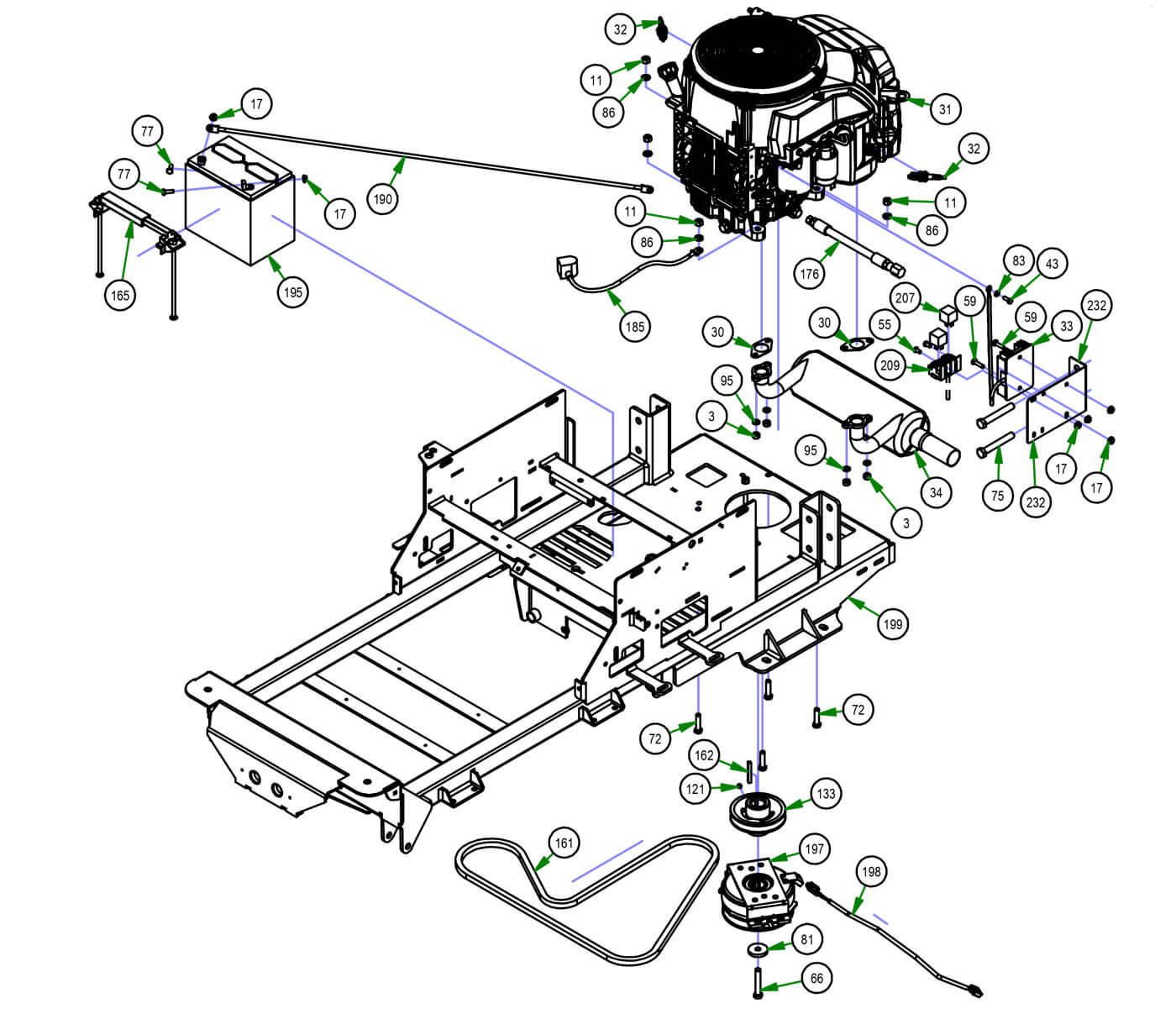

Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 3 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Nuts Zinc (Qty 4)
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 17 1/4-20 Hex Flange Nuts Zinc w/ (Qty 6)
- 30 Exhaust Gasket for 015-0077-00 (Qty 2)
- 31 Honda Engine (GXV630RTAF) (Qty 1)
- 32 Spark Plug for the 015-0091-00 (GXV630) (Qty 2)
- 33 Regulator Rectifier for Honda (015-0091-00) (Qty 1)
- 34 2019 Honda Maverick Exhaust (Qty 1)
- 43 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 1)
- 55 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 2)
- 59 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 66 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 70 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 72 3/8 x 1 1/2 Bolt (Qty 4)
- 75 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 77 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 81 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 83 1/4 Lockwasher Zinc (Qty 1)
- 86 3/8 Lockwasher Zinc (Qty 4)
- 95 5/16 Lock washer Zinc (Qty 5)
- 121 5/16-24 x 1/4 Set Screw (Qty 1)
- 133 4 3/4 Motor Pulley (Qty 1)
- 161 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 165 Battery Hold Down (Plastic) (Qty 1)
- 176 2019 Honda Oil Drain (Qty 1)
- 185 24 inch Black Cable - MZ/ZT (Qty 1)
- 190 36 Red Battery Cable (Qty 1)
- 195 Battery - All models except Renegade and Revolt (Qty 1)
- 197 Clutch For 1-1/8" Shaft (Qty 1)
- 198 Clutch Pigtail (Qty 1)
- 207 5Relay Terminal (Qty 2)
- 209 2019 Harness Adaptor- Honda Engine (Qty 1)
- 213 Patent Decal (Qty 1)
- 232 Honda Rectifier Mount--Orange (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
3#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
30#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
31#015-0091-00
Honda Engine (GXV630RTAF)
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-
32#015-0091-04
Spark Plug for the 015-0091-00
Qty Used: 2Regular price $10.20 USDRegular priceUnit price per
-
33#015-0091-06
Regulator Rectifier for Honda (015-0091-00)
Qty Used: 1Regular price $224.25 USDRegular priceUnit price per
-
34#015-1016-00
2019 Honda Maverick Exhaust
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
43#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
55#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
59#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
66#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
70#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
72#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
75#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
77#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
81#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
83#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
86#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
95#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
121#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
133#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
161#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
165#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
176#051-5405-00
2019 Honda Oil Drain
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
185#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
190#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
195#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
198#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
207#086-1201-00
Relay Terminal
Qty Used: 2Regular price $23.34 USDRegular priceUnit price per
-
209#086-9012-00
2019 Harness Adaptor- Honda Engine
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
-
232#201-0020-00
Honda Rectifier Mount--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
