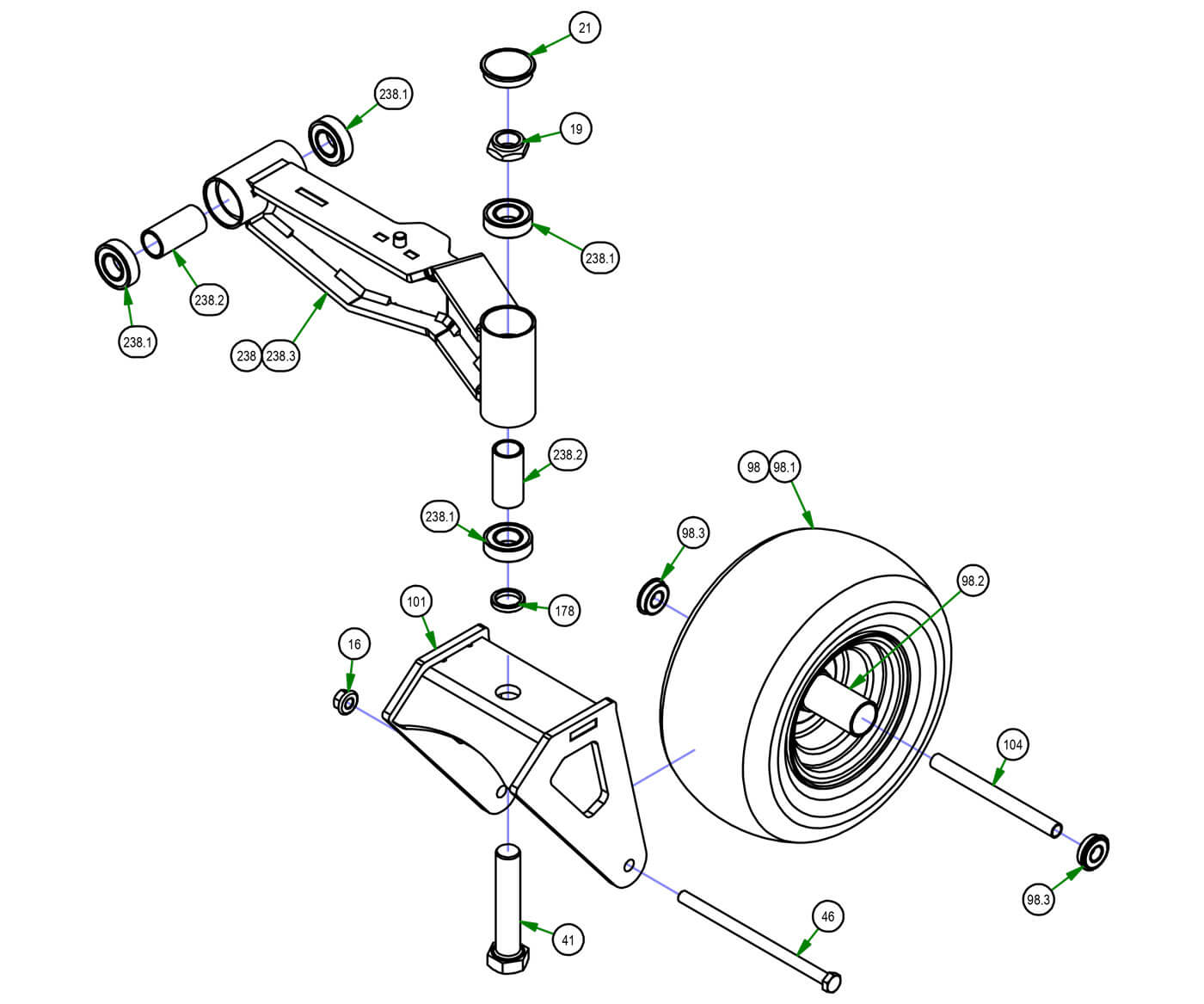

Front Fork
Parts Index
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 19 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 21 Bearing Retainer Cap (Qty 1)
- 41 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 1)
- 46 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 98 13x6.50-6 Caster Front (Qty 1)
- 98.1 13 x 6.50 - 6 Tire (Qty 1)
- 98.2 6 x 4.5 Black Wheel - Small Bore (Qty 1)
- 98.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 101 REV/MAV front fork (Qty 1)
- 104 Front Wheel Spanner-All Models (Qty 1)
- 178 Spacer ( Front Fork and Suspension ) (Qty 1)
- 238 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 238.1 Caster Bearing (Qty 4)
- 238.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 238.3 I-Beam Front Arm-LH--Painted (Qty 1)
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
19#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
21#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
41#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
46#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
98#022-2017-00
13x6.50-6 Caster Front
Qty Used: 1Regular price $87.99 USDRegular priceUnit price per
-
98.1#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
98.2#022-7007-00
6 x 4.5 Black Wheel - Small Bore
Qty Used: 1Regular price $53.09 USDRegular priceUnit price per
-
98.3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 2Regular price $12.49 USDRegular priceUnit price per
-
101#023-1010-00
REV/MAV front fork
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
104#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
178#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
238#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
238.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
238.2#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
238.3#250-2801-00
I-Beam Front Arm-LH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
