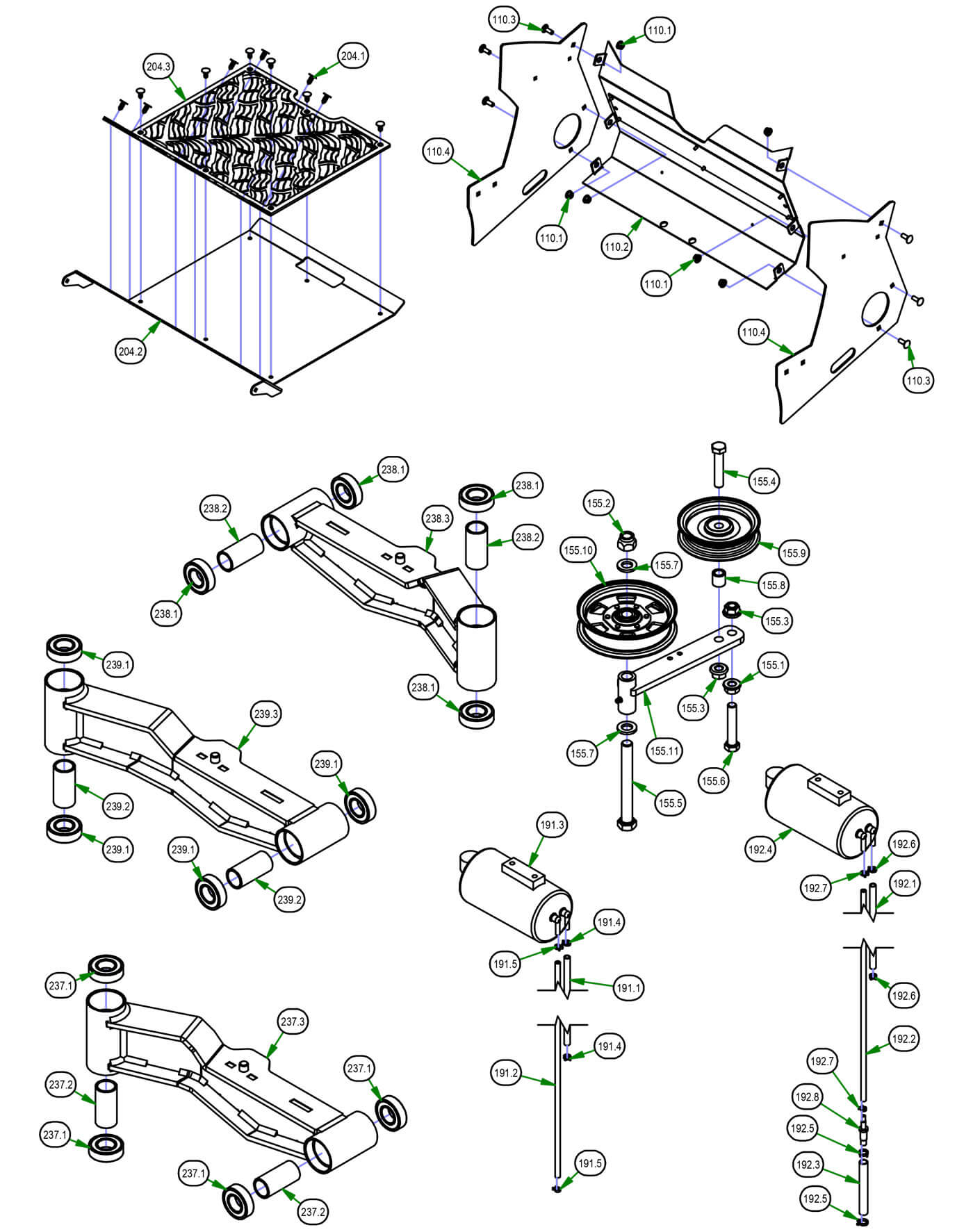

Frame Sub Assemblies - Rear Cover, Pump Idler, EPA Cannister, Floorboard, Suspension Arm
Parts Index
- 110 2021 Maverick Rear Cover Assembly (Qty 1)
- 110.1 5/16-18 Nylon Flange Nut (Qty 6)
- 110.2 2021 Maverick Rear Cover Assembly (Qty 1)
- 110.3 5/16 x 7/8 Carriage Bolt (Qty 6)
- 110.4 Rear Cover Side Plate--Orange (Qty 2)
- 155 Pump Idler Bracket Assy-Maverick (Qty 1)
- 155.1 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 155.2 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 155.3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 155.4 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 155.5 5/8 x 5 1/2 Bolt (Qty 1)
- 155.6 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 155.7 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 155.8 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 155.9 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 155.10 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
- 155.11 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
- 191 ZT/Mav EPA Cannister Assy (Qty 1)
- 191.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 191.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 191.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 191.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 191.5 3/16" Vinyl Hose Clamp (Qty 2)
- 192 2019 Maverick Honda EPA Cannister Assembly (Qty 1)
- 192.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 192.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 192.3 3/8" Black PVC Tubing (Qty 1)
- 192.4 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 192.5 5/8 Fuel Line Clamp (Qty 2)
- 192.6 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 192.7 3/16" Vinyl Hose Clamp (Qty 2)
- 192.8 3/8 - 1/4 Nylon Reducer (Qty 1)
- 204 2021 Maverick Floorboard Assembly (Qty 1)
- 204.1 Ratchet Fastener - Floorboard (Qty 12)
- 204.2 Maverick Floor Panel--Orange (Qty 1)
- 204.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 237 2021 Maverick RH Arm Assembly (Qty 1)
- 237.1 Caster Bearing (Qty 4)
- 237.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 237.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 1)
- 238 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 238.1 Caster Bearing (Qty 4)
- 238.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 238.3 I-Beam Front Arm-LH--Painted (Qty 1)
- 239 2021 Maverick RH Long Front Suspension Arm Assy (Qty 1)
- 239.1 Caster Bearing (Qty 4)
- 239.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 239.3 I-Beam Front Arm Long-RH--Painted (Qty 1)
-
110#026-0205-98
2021 Maverick Rear Cover Assembly
Qty Used: 1Regular price $212.29 USDRegular priceUnit price per
-
110.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
110.2#014-5300-00
2021 Maverick Rear Cover Assembly
Qty Used: 1Regular price $192.39 USDRegular priceUnit price per
-
110.3#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
110.4#026-0198-00
Rear Cover Side Plate--Orange
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
155#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
155.1#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
155.2#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
155.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
155.4#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
155.5#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
155.6#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
155.7#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
155.8#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
155.9#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
155.10155.11#033-8000-00
2016-5 3/4 Idler Pulley-5/8
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
191#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
191.1192.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
191.2192.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
191.3192.4#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
191.4192.6#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
191.5192.7#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
192#067-0020-63
2019 Maverick Honda EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
192.3#051-8065-00
3/8" Black PVC Tubing
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
192.5#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
192.8#073-8071-00
3/8 - 1/4 Nylon Reducer
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
204#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
204.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
204.2#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
204.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
237#250-2751-21
2021 Maverick RH Arm Assembly
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
237.1238.1239.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
237.2237.3238.2239.2#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
238#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
238.3#250-2801-00
I-Beam Front Arm-LH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
239#250-2851-21
2021 Maverick RH Long Front Suspension Arm Assy
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
239.3#250-2851-00
I-Beam Front Arm Long-RH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
