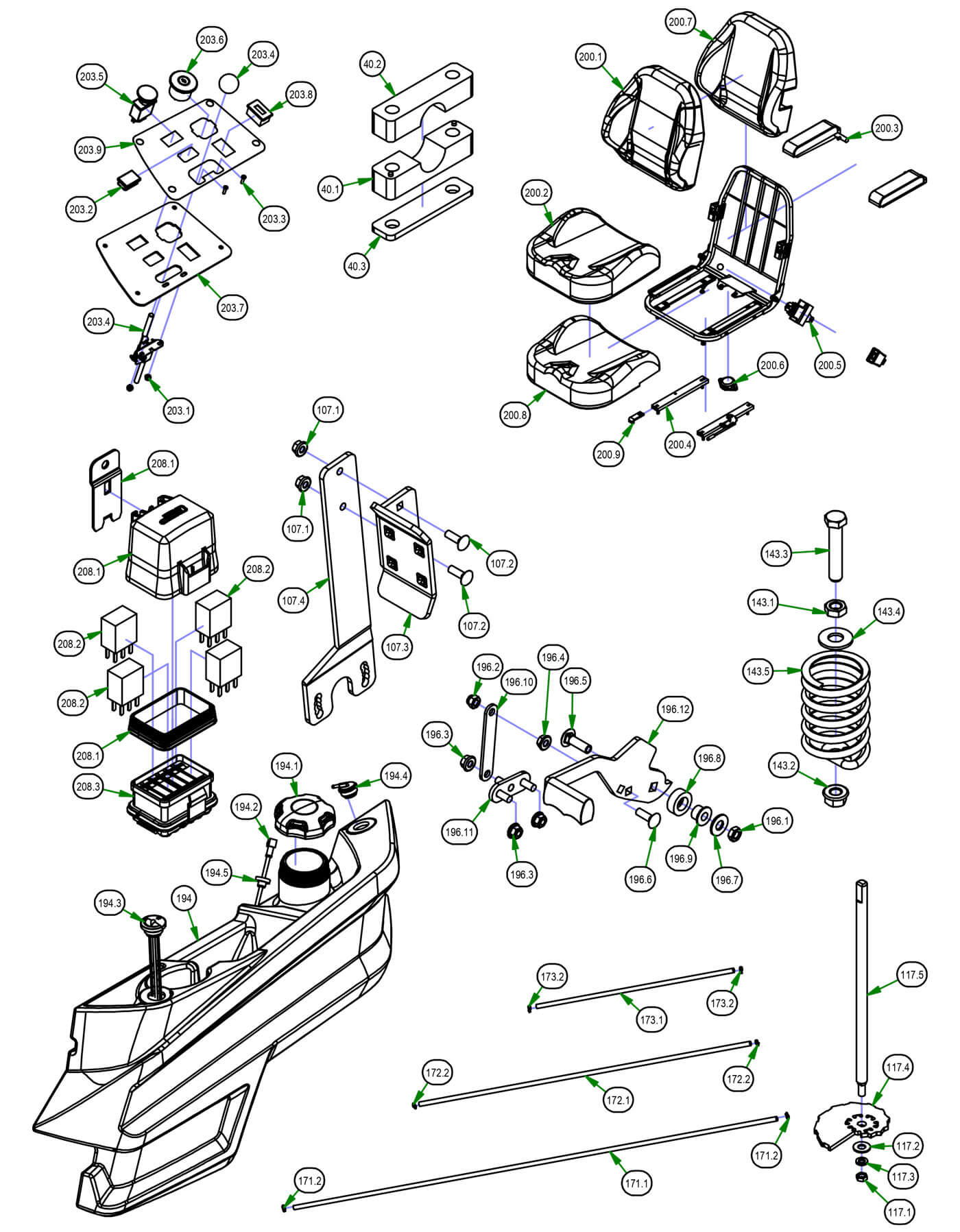

Frame Sub Assemblies - Pillow Block, Foot Pedal, Deck Height Bar, Seat Spring, Fuel Line, Fuel Tank, Brake Handle, Seat, Control Panel, Wiring Harness
Parts Index
- 40 Pillow Block (Qty 4)
- 40.1 2017 Magnum Pillow Block-Male (Qty 1)
- 40.2 2017 Magnum Pillow Block-Female (Qty 1)
- 40.3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 107 2017 MZ Foot Pedal Assembly (Qty 1)
- 107.1 5/16-18 Nylon Flange Nut (Qty 2)
- 107.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 107.3 Foot Pedal--Orange (Qty 1)
- 107.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 117 2017 ZT Deck Height Bar Assy. (Qty 1)
- 117.1 3/8-24 Hex Nut Zinc (Qty 1)
- 117.2 3/8 USS Flat Washer Zinc (Qty 1)
- 117.3 3/8 Lockwasher Zinc (Qty 1)
- 117.4 Deck Height Cam Plate (Qty 1)
- 117.5 2017 Deck Height Dial Rod ZT (Qty 1)
- 143 2017 MZ/ZT Seat Spring Assembly (Qty 2)
- 143.1 3/8-16 Half Jam Nut (Qty 1)
- 143.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 143.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 143.4 3/8 USS Flat Washer Zinc (Qty 1)
- 143.5 Seat Spring (Qty 1)
- 171 2019 Maverick Honda Fuel Line (Qty 1)
- 171.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 171.2 1/4 Fuel Line Clamp (Qty 2)
- 172 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 172.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 172.2 1/4 Fuel Line Clamp (Qty 2)
- 173 2015 ZT KawaFuel Line Assy-22" (Qty 1)
- 173.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 173.2 1/4 Fuel Line Clamp (Qty 2)
- 194 2021 Maverick Left Side Tank (Qty 1)
- 194.1 3.5" Tethered Fuel Cap (Qty 1)
- 194.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 194.3 Fuel Gauge w/ Grommet (Qty 1)
- 194.4 Rollover Valve and Grommet New (Qty 1)
- 194.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 196 Brake Handle Assembly For HD Down (Qty 1)
- 196.1 3/8-16 Centerlock Half Nut (Qty 1)
- 196.2 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 196.3 5/16-18 Nylon Flange Nut (Qty 3)
- 196.4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 196.5 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 196.6 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 196.7 3/8 USS Flat Washer Zinc (Qty 1)
- 196.8 Brake Lever Spacer (Qty 1)
- 196.9 Bronze Bushing SF-1220-8 (Qty 1)
- 196.10 Brake Cable Extension Plate (Qty 1)
- 196.11 Brake Load Balancer Weldment (Qty 1)
- 196.12 Load Balanced Brake Handle With Grip (Qty 1)
- 200 2021 Maverick Seat (Qty 1)
- 200.1 Back Cover for the 071-2102-00 (Qty 1)
- 200.2 Seat Cover 071-2102-00 (Qty 1)
- 200.3 Rubber Pad for 071-2054-00 (Qty 1)
- 200.4 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 200.5 Seat Belt for 071-5080-17 (Qty 1)
- 200.6 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 200.7 Foam Molded Back for 071-2102-00 (Qty 1)
- 200.8 Seat Cover Molded Foam for 071-2040-18/071-5080-18 (Qty 1)
- 200.9 Black Seat stop (Qty 1)
- 203 ZT/MAV Control Panel Assy (Qty 1)
- 203.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 203.2 Light Plug (Qty 1)
- 203.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 203.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 203.5 PTO Engager-Switch for Blades (Qty 1)
- 203.6 Ignition Switch (Qty 1)
- 203.7 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 203.8 Tachometer-N310-0100-1018 (Qty 1)
- 203.9 2018 MZ/Magnum/ZT/Maverick Control Panel Decal (Qty 1)
- 208 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 208.1 2019 Relay Cap Kit (Qty 1)
- 208.2 2019 Relay Terminal (Qty 4)
- 208.3 OBSOLETE USE 086-3050-17 (Qty 1)
-
200.8#071-2042-01
Seat Cover Molded Foam for 071-2040-18/071-5080-18
Qty Used: 1Regular price $92.89 USDRegular priceUnit price per
-
200.9#039-2157-00
Black Seat stop
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
203#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
203.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
203.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
203.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
203.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
203.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
203.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
203.7#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
203.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
203.9#091-0338-18
2018 MZ/Magnum/ZT/Maverick Control Panel Decal
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
208#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
208.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
208.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
208.3#086-3050-00
OBSOLETE USE 086-3050-17
Qty Used: 1Regular price $249.00 USDRegular priceUnit price per
-
40#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
40.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
40.2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
40.3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
107#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
107.1196.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
107.2196.6#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
107.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
107.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
117#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
117.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
117.2143.4196.7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
117.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
117.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
117.5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
143#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
143.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
143.2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
143.3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
143.5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
171#051-0054-00
2019 Maverick Honda Fuel Line
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
171.1173.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
171.2172.2173.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
172#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
172.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
173#051-2015-00
2015 ZT KawaFuel Line Assy-22"
Qty Used: 1Regular price $28.55 USDRegular priceUnit price per
-
194#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
194.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
194.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
194.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
194.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
194.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
196#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
196.1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
196.2#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
196.4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
196.5#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
196.8#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
196.9#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
196.10#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
196.11#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
196.12#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
200#071-2102-00
2021 Maverick Seat
Qty Used: 1Regular price $662.13 USDRegular priceUnit price per
-
200.1#071-2102-03
Back Cover for the 071-2102-00
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
200.2#071-2102-02
Seat Cover 071-2102-00
Qty Used: 1Regular price $131.37 USDRegular priceUnit price per
-

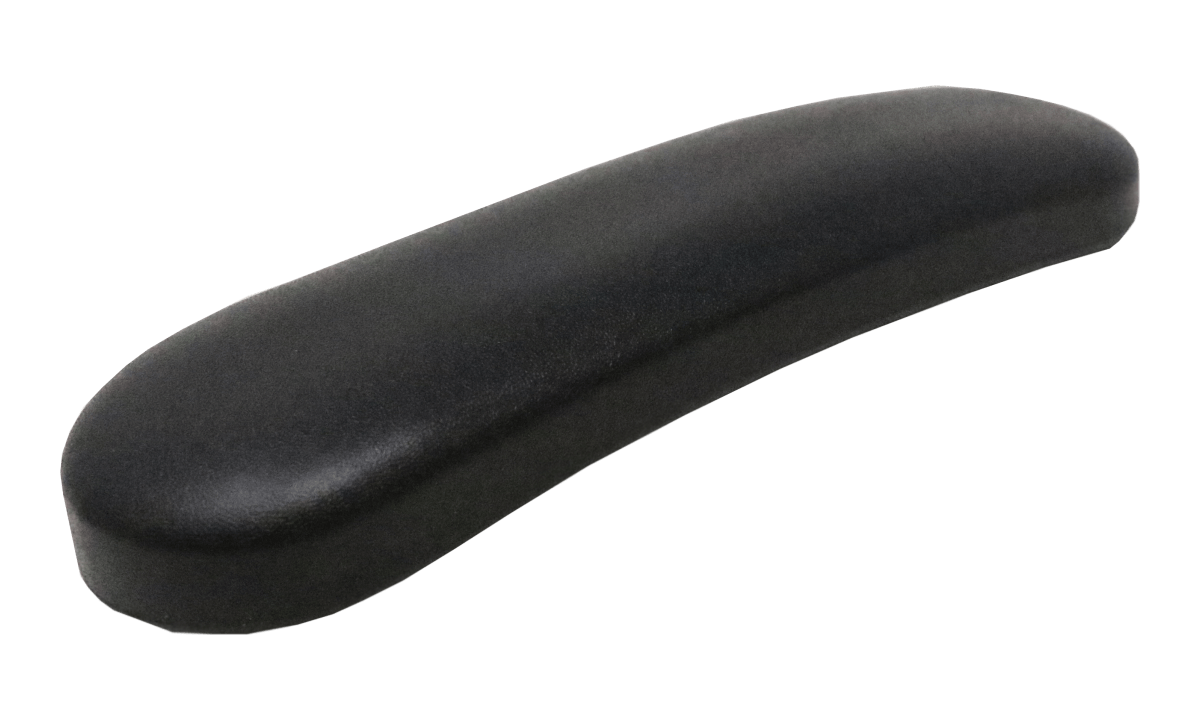

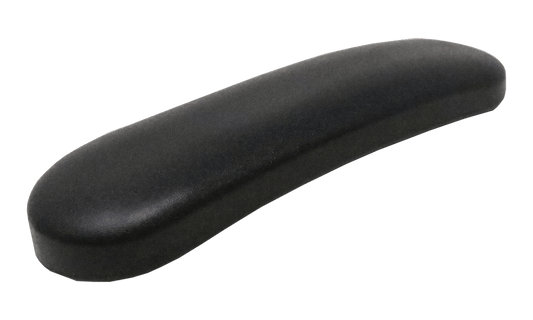

200.3#071-2056-00
Rubber Pad for 071-2054-00
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
200.4#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
200.5#071-5083-00
Seat Belt for 071-5080-17
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
200.6#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
200.7#071-2102-01
Foam Molded Back for 071-2102-00
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
