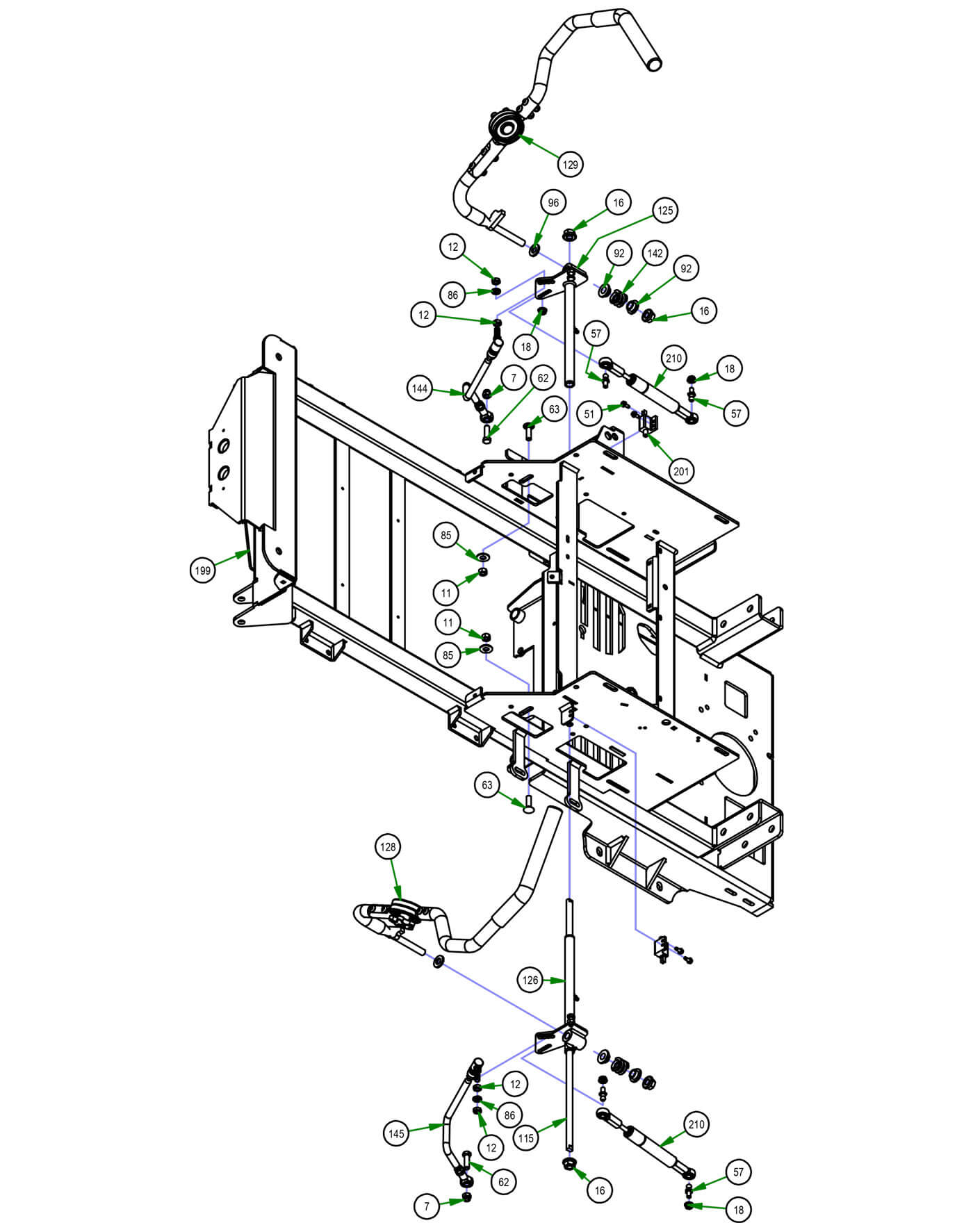

Drive Arms
Parts Index
- 7 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 12 3/8-24 Hex Nut Zinc (Qty 4)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 18 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 51 12-24 x 1/2 HWH Bolt (Qty 4)
- 57 10mm Damper Ball Stud- (Qty 4)
- 62 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 63 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 85 3/8 USS Flat Washer Zinc (Qty 2)
- 86 3/8 Lockwasher Zinc (Qty 2)
- 92 .515 ID Plastic Shoulder Washer (Qty 4)
- 96 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 115 2021 Maverick Steering Actuator Rod (Qty 1)
- 125 2021 Maverick Drive Arm Actuator RH Assembly (Qty 1)
- 126 2021 Maverick Drive Arm Actuator LH Assembly (Qty 1)
- 128 2018 Adj. Steering Arm L-Black (Qty 1)
- 129 2018 Adj. Steering Arm R-Black (Qty 1)
- 142 Drive Lever Housing Spring (Qty 2)
- 144 Push Rod RH (Assembly) (Qty 1)
- 145 Push Rod LH (Assembly) (Qty 1)
- 201 Safety Switch (Qty 2)
- 210 Arm Dampener (Qty 2)
-
7#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
18#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
51#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
57#018-2050-00
10mm Damper Ball Stud-
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
62#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
63#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
85#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
86#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
92#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
96#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
115#028-0049-00
2021 Maverick Steering Actuator Rod
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
125#031-0053-21
2021 Maverick Drive Arm Actuator RH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
126#031-0054-21
2021 Maverick Drive Arm Actuator LH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
128#031-9000-18
2018 Adj. Steering Arm L-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
129#031-9050-18
2018 Adj. Steering Arm R-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
142#034-8025-00
Drive Lever Housing Spring
Qty Used: 2Regular price $3.70 USDRegular priceUnit price per
-
144#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
145#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
201#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
