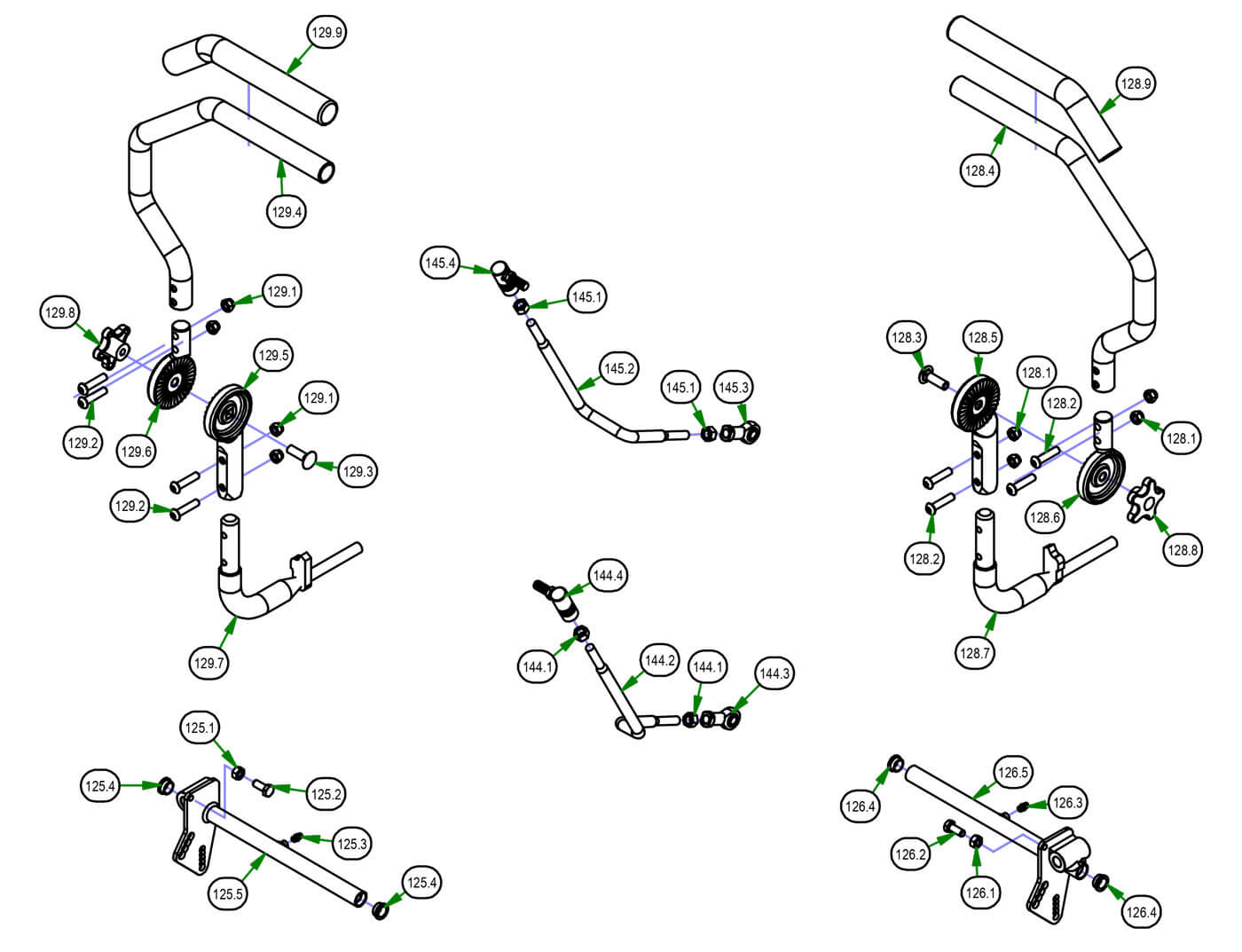

Drive Arm Sub Assemblies

Parts Index
- 125 2021 Maverick Drive Arm Actuator RH Assembly (Qty 1)
- 125.1 5/16-18 Hex Nuts Zinc (Qty 1)
- 125.2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 125.3 1/4 Drive-in Grease Fitting (Qty 1)
- 125.4 Drive Arm Actuator Bushing (Qty 2)
- 125.5 2021 Maverick Drive Actuator RH Weldment (Qty 1)
- 126 2021 Maverick Drive Arm Actuator LH Assembly (Qty 1)
- 126.1 5/16-18 Hex Nuts Zinc (Qty 1)
- 126.2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 126.3 1/4 Drive-in Grease Fitting (Qty 1)
- 126.4 Drive Arm Actuator Bushing (Qty 2)
- 126.5 2021 Maverick Drive Actuator LH Weldment (Qty 1)
- 128 2018 Adj. Steering Arm L-Black (Qty 1)
- 128.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 128.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 128.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 128.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 128.5 2018 Black Lower Adjuster - Steering Arm - Left (Qty 1)
- 128.6 2018 Black Upper Adjuster - Steering Arm - Left (Qty 1)
- 128.7 2018 Black Steering Arm Elbow - Left (Qty 1)
- 128.8 Knob - Adjustable Steering Arm (Qty 1)
- 128.9 Black Steering Grip (Qty 1)
- 129 2018 Adj. Steering Arm R-Black (Qty 1)
- 129.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 129.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 129.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 129.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 129.5 2018 Black Lower Adjuster - Steering Arm - Right (Qty 1)
- 129.6 2018 Black Upper Adjuster - Steering Arm - Right (Qty 1)
- 129.7 2018 Black Steering Arm Elbow - Right (Qty 1)
- 129.8 Knob - Adjustable Steering Arm (Qty 1)
- 129.9 Black Steering Grip (Qty 1)
- 144 Push Rod RH (Assembly) (Qty 1)
- 144.1 3/8-24 Hex Nut Zinc (Qty 2)
- 144.2 Push Rod RH (Assembly) (Qty 1)
- 144.3 Spherical Rod End (Qty 1)
- 144.4 Quick Release Ball Joint (Qty 1)
- 145 Push Rod LH (Assembly) (Qty 1)
- 145.1 3/8-24 Hex Nut Zinc (Qty 2)
- 145.2 Push Rod LH (Assembly) (Qty 1)
- 145.3 Spherical Rod End (Qty 1)
- 145.4 Quick Release Ball Joint (Qty 1)
