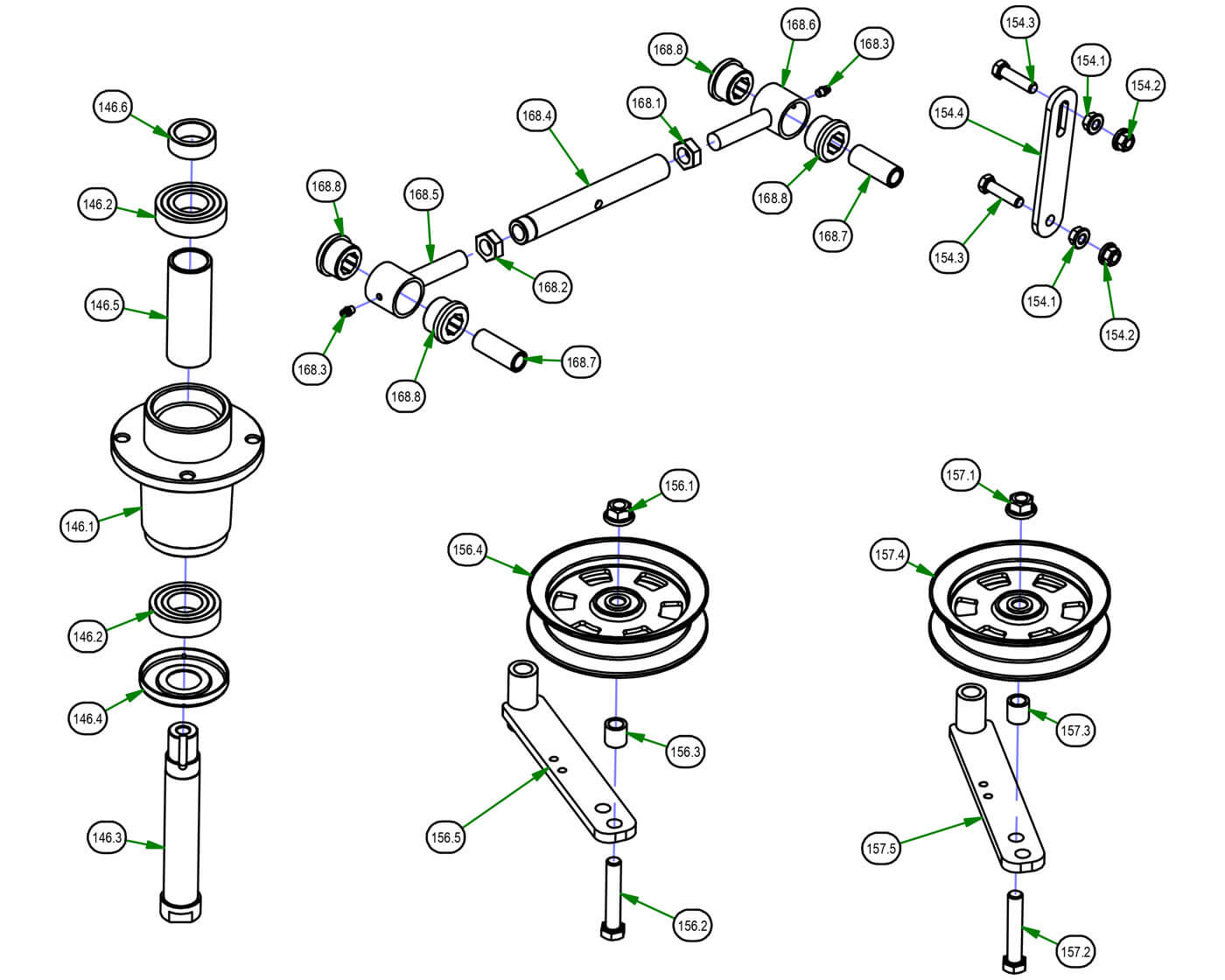

Deck Sub Assemblies - Spindle, Deck Hanger, Deck Idler, Turnbuckle
Parts Index
- 146 Short Shaft Spindle Complete with Hardware (Qty 9)
- 146.1 Aluminum Spindle Housing-2010 (Qty 1)
- 146.2 OBSOLETE USE 037-6029-00 (Qty 2)
- 146.3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 146.4 Dust Cover for 037-8000-00 - (Qty 1)
- 146.5 Tube Spacer for Spindle Shaft (Qty 1)
- 146.6 Collar Spacer - Top of Spindle (Qty 1)
- 154 MZ/ZT Deck Hanger Assembly (Qty 1)
- 154.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 154.2 3/8 Nylock Flange Nut (Qty 2)
- 154.3 3/8 x 1 1/2 Bolt (Qty 2)
- 154.4 Deck hanger for 039-2127-17 (Qty 1)
- 156 2017 MZ/ZT Deck Idler Assembly (Qty 2)
- 156.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 156.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 156.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 156.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 156.5 Idler Bracket (Qty 1)
- 157 2017 54"/48" Deck Idler Assembly (Qty 1)
- 157.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 157.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 157.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 157.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 157.5 Idler Bracket (Qty 1)
- 168 Toplink (Qty 2)
- 168.1 Nut, 5/8-18 RH (Qty 1)
- 168.2 Nut, 5/8-18 LH (Qty 1)
- 168.3 1/4-28 Threaded Grease Fitting (Qty 2)
- 168.4 2018 Maverick Toplink Body (Qty 1)
- 168.5 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 168.6 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 168.7 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 168.8 2018 Maverick Topllink Bushing (Qty 4)
-
146#037-6015-00
Short Shaft Spindle Use 018-6017-00 Blade Bolt
Qty Used: 9Regular price $199.99 USDRegular priceUnit price per
-
146.1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
146.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
146.3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
146.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
146.5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
146.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
154#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
154.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
154.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
154.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
154.4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
156#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
156.1157.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
156.2157.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
156.3157.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
156.4157.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
156.5157.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
157#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
168.1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
168.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
168.3#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
168.4#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.5#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.6#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.7#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
168.8#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
