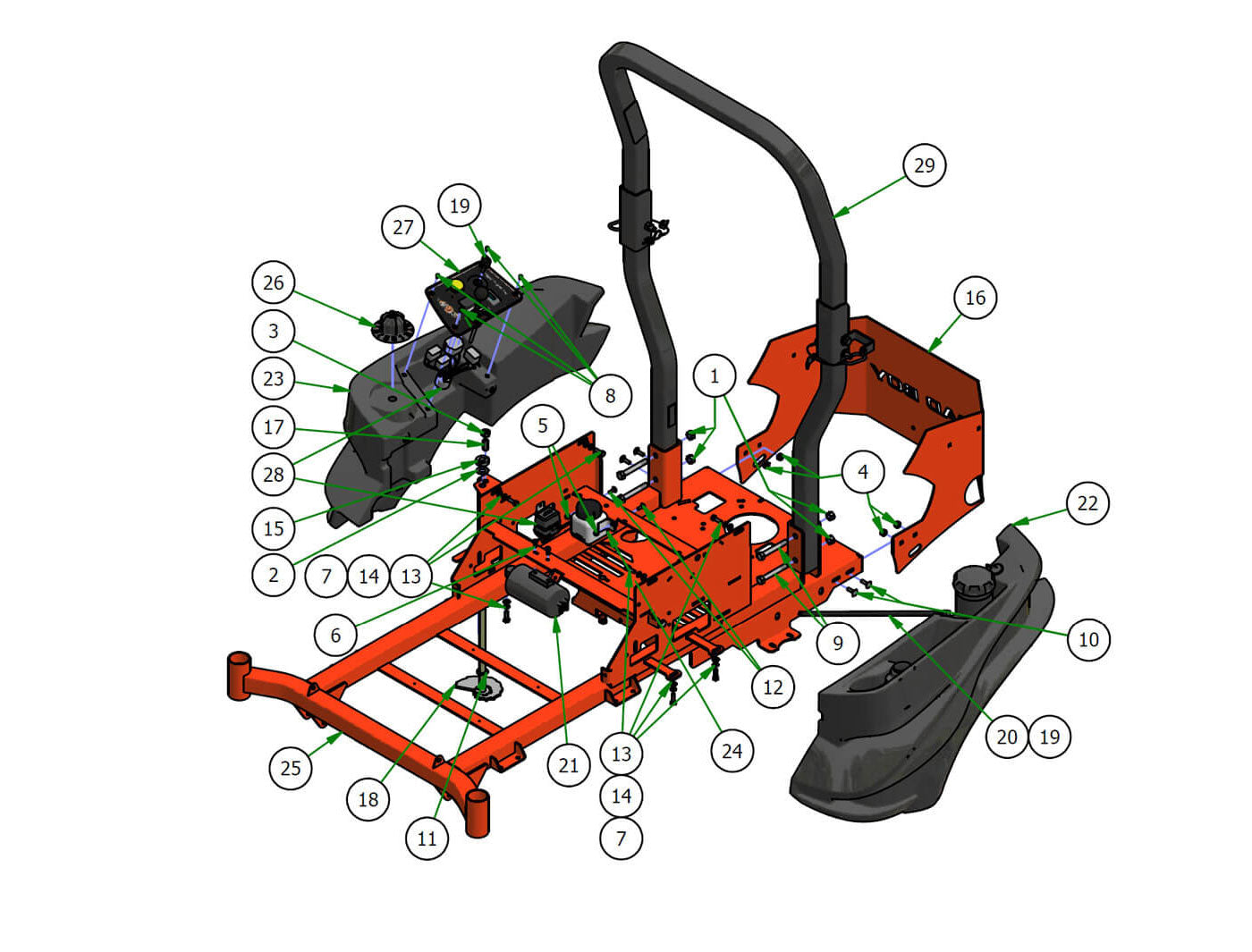

Tanks & Rear Cover
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 3 1/2-13 Hex Nuts Zinc (Qty 1)
- 4 5/16-18 Nylon Flange Nut (Qty 4)
- 5 1/4-20 Nylon Insert Locknut Zi (Qty 4)
- 6 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 7 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 8 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 9 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 10 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 11 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 12 1/4 x 3/4 Carriage Bolt (Qty 4)
- 13 5/16 USS Flat Washer Zinc (Qty 7)
- 14 5/16 Lock washer Zinc (Qty 7)
- 15 Split Collar (Qty 1)
- 16 2017 ZT Rear Plate--Orange (Qty 1)
- 17 Deck Height Cam Plunger (Qty 1)
- 18 2017 ZT Deck Height Bar Assy. (Qty 1)
- 20 2015 ZT KawaFuel Line Assy-22" (Qty 1)
- 21 ZT/Mav EPA Cannister Assy (Qty 1)
- 22 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 23 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 24 2017 ZT Hydro Tank Assembly (Qty 2)
- 26 Deck Height Dial (Qty 1)
- 27 ZT/MAV Control Panel Assy (Qty 1)
- 28 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 29 Mav, HD 2x2 Folding ROPS (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
2#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
7#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
8#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
9#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
10#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
13#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
14#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
15#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
16#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
17#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
18#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
20#051-2015-00
2015 ZT KawaFuel Line Assy-22"
Qty Used: 1Regular price $28.55 USDRegular priceUnit price per
-
21#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
22#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
23#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
24#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
26#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
27#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
28#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
29#089-0005-00
2016 Maverick 2x2 Folding ROPS
Qty Used: 1Regular price $396.75 USDRegular priceUnit price per
