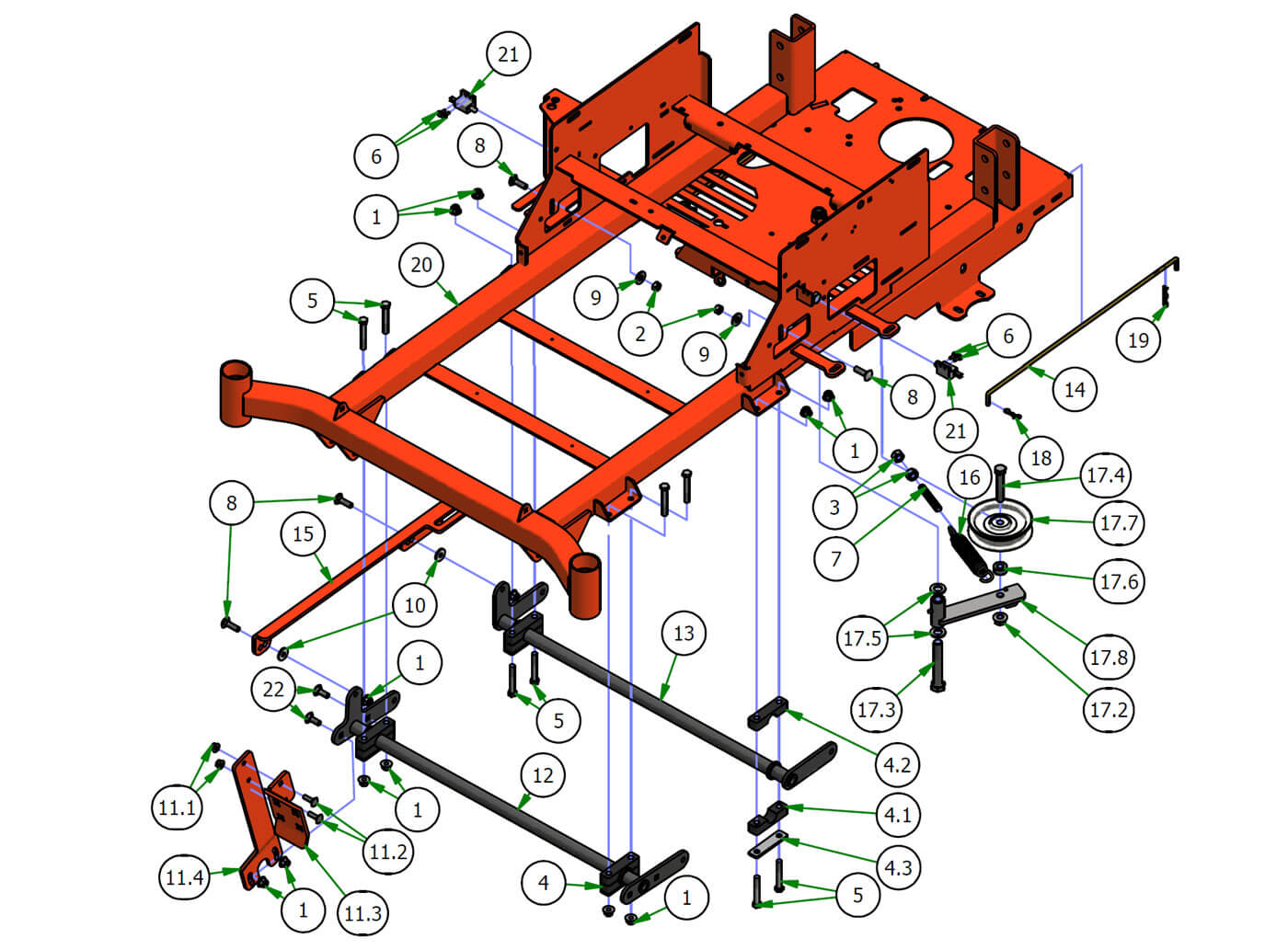

Lower Frame Assembly
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 12)
- 2 3/8-16 Hex Nuts Zinc (Qty 2)
- 3 1/2-13 Hex Nuts Zinc (Qty 2)
- 4 Pillow Block (Qty 4)
- 4.1 2017 Magnum Pillow Block-Male (Qty 1)
- 4.2 2017 Magnum Pillow Block-Female (Qty 1)
- 4.3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 5 3/8x2 1/2" Hex Bolt (Qty 8)
- 6 12-24 x 1/2 HWH Bolt (Qty 4)
- 7 All Thread-Pump Idler Tensioner (Qty 1)
- 8 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 9 3/8 USS Flat Washer Zinc (Qty 2)
- 10 .360 ID Plastic Washer (Qty 2)
- 11 2017 MZ Foot Pedal Assembly (Qty 1)
- 11.1 5/16-18 Nylon Flange Nut (Qty 2)
- 11.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 11.3 Foot Pedal--Orange (Qty 1)
- 11.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 12 Actuator Bar (Front) (Qty 1)
- 13 Actuator Bar (Rear) (Qty 1)
- 14 ZT Neutral Lever/Rod 2011 (Qty 2)
- 15 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 16 2015 Deck Idler Spring (Qty 1)
- 17 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 17.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 17.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 17.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 17.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 17.6 1/2 Set Collar w/set collar (Qty 1)
- 17.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 17.8 Idler Bracket (Qty 1)
- 18 Bow Pin (Qty 2)
- 19 Neutral Rod Clip (Qty 2)
- 21 Safety Switch (Qty 2)
- 22 3/8 x 1 Carriage Bolt (Qty 2)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
4.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
4.2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
4.3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
5#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
6#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
7#018-2004-00
All Thread-Pump Idler Tensioner
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
9#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
11#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
11.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11.2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
11.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
12#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
13#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
14#031-0060-00
ZT Neutral Lever/Rod 2011
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
15#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
16#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
17#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
17.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
17.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
17.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
17.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
17.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
17.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
-
19#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
21#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
22#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
