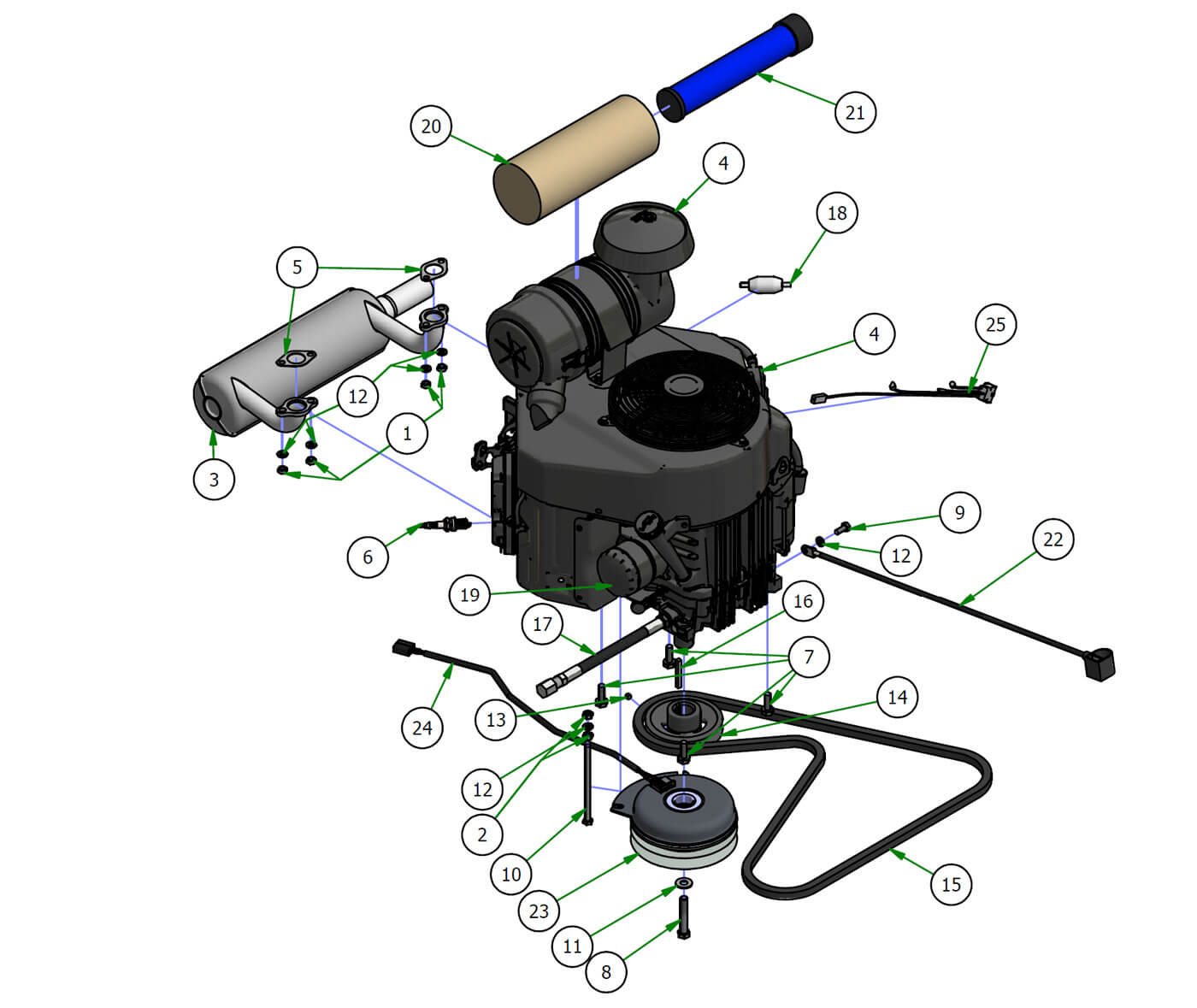

Kawasaki FX-691V
Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 5/16-18 Hex Nuts Zinc (Qty 12)
- 3 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 FX691 Kawasaki (Qty 1)
- 5 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 6 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 8 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 9 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 10 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 11 3/8 USS Flat Washer Zinc (Qty 1)
- 12 5/16 Lock washer Zinc (Qty 6)
- 13 5/16-24 x 1/4 Set Screw (Qty 1)
- 14 4 3/4 Motor Pulley (Qty 1)
- 15 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 16 1/4 X 2 Square Key Stock (Qty 1)
- 17 Kawasaki Oil Drain (Qty 1)
- 18 Universal Inline Fuel Filter (Qty 1)
- 19 Kawasaki Oil Filter (Qty 1)
- 20 Canister Air Fil Outer2010&Old (Qty 1)
- 21 Canister Air Filter - Inner (Qty 1)
- 22 24 inch Black Cable - MZ/ZT (Qty 1)
- 23 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 24 Clutch Pigtail (Qty 1)
- 25 Harness Adaptor-FX691, FX730 HD (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 12Regular price $0.69 USDRegular priceUnit price per
-
3#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-0691-00
FX691 Kawasaki-2016 Compact Outlaw
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
5#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
6#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
8#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
9#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
10#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
11#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
13#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
14#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
15#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
16#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
17#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
18#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
19#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
20#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
21#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
22#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
24#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
25#086-9002-00
Harness Adaptor-Outlaw FX-All
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
