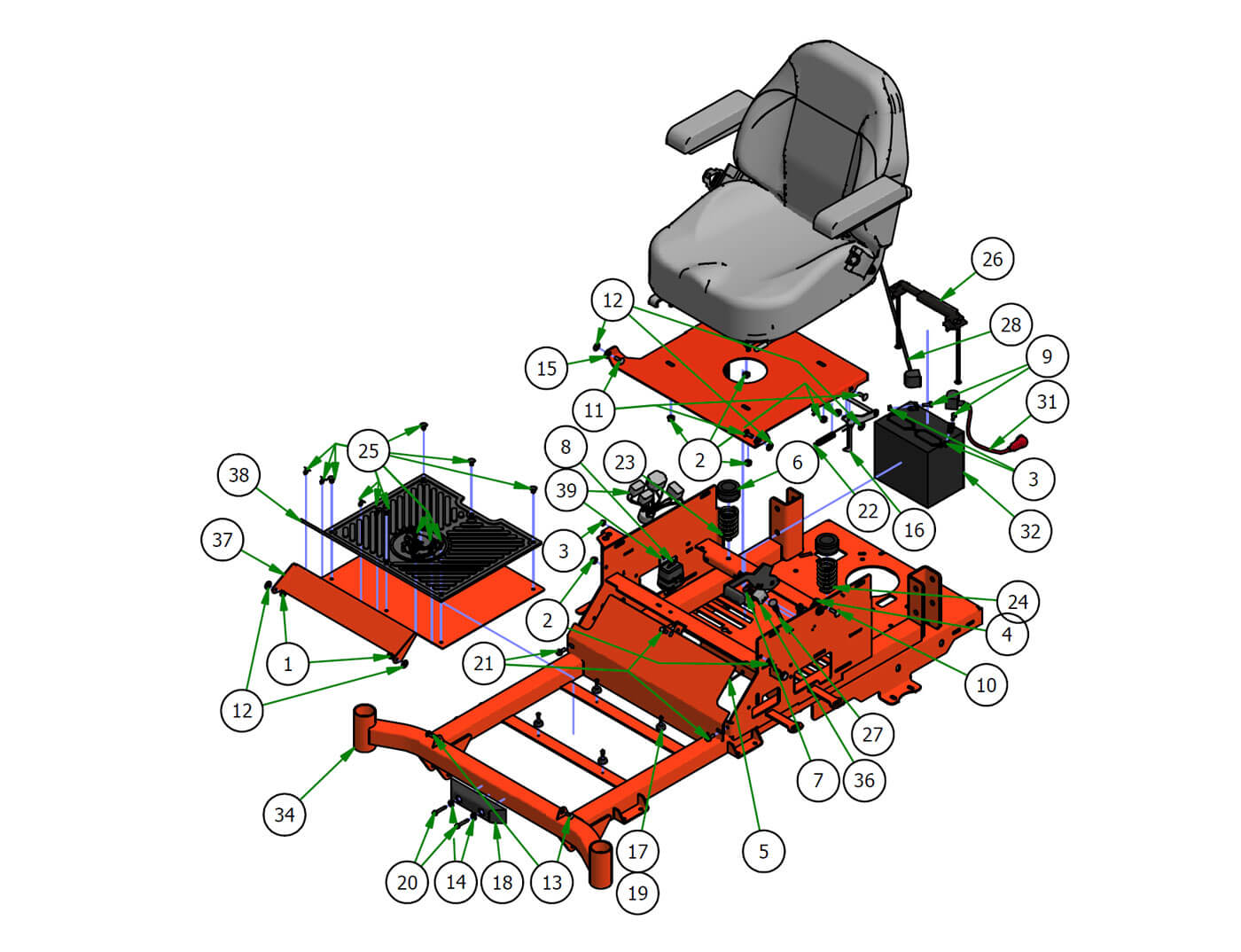

Covers, Seat, Battery
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 5/16-18 Nylon Flange Nut (Qty 8)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 5 2017 ZT Cooler Cover--Orange (Qty 1)
- 6 Seat Spring Cap Cover (Qty 2)
- 7 12-24 x 1/2 HWH Bolt (Qty 2)
- 8 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 9 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 10 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 11 5/16 x 7/8 Carriage Bolt (Qty 4)
- 12 .360 ID Plastic Washer (Qty 6)
- 13 1/4 x 3/4 Carriage Bolt (Qty 2)
- 14 5/16 USS Flat Washer Zinc (Qty 2)
- 15 Seat Plate 2016--Orange (Qty 1)
- 16 Seat Latch Rod (Qty 1)
- 17 Button Bumper (Qty 4)
- 18 8 Bumper (Qty 1)
- 19 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 20 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 21 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 22 Brake Spring (Qty 2)
- 23 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 24 2017 Seat Spring Assy. With Cable (Qty 1)
- 25 OBSOLETE USE 040-6080-00 (Qty 12)
- 26 Battery Hold Down (Plastic) (Qty 1)
- 27 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 28 24 inch Black Cable - MZ/ZT (Qty 1)
- 29 2021 Load Balanced Brake Cable 1 (Qty 1)
- 30 2021 Load Balanced Brake Cable 2 (Qty 1)
- 31 24 Red Battery Cable (Qty 1)
- 32 Battery - All models except Renegade and Revolt (Qty 1)
- 33 Brake Handle Assembly For HD Down (Qty 1)
- 35 2021 Maverick Seat (Qty 1)
- 36 Safety Switch (Qty 1)
- 37 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 38 Mat (Floor) (Qty 1)
- 39 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#014-3417-00
2017 ZT Cooler Cover--Orange
Qty Used: 1Regular price $71.50 USDRegular priceUnit price per
-
6#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
7#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
8#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
9#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
11#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
12#019-6042-00
.360 ID Plastic Washer
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
13#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
14#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
16#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
17#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
-
19#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
20#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
22#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
23#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
24#034-8045-04
2017 Seat Spring Assy. With Cable
Qty Used: 1Regular price $29.06 USDRegular priceUnit price per
-
25#040-6090-00
OBSOLETE USE 040-6080-00
Qty Used: 12Regular price $1.99 USDRegular priceUnit price per
-
26#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
27#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
28#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
30#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
31#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
32#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
33#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
35#071-2102-00
2021 Maverick Seat
Qty Used: 1Regular price $662.13 USDRegular priceUnit price per
-
36#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
37#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
38#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
39#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
