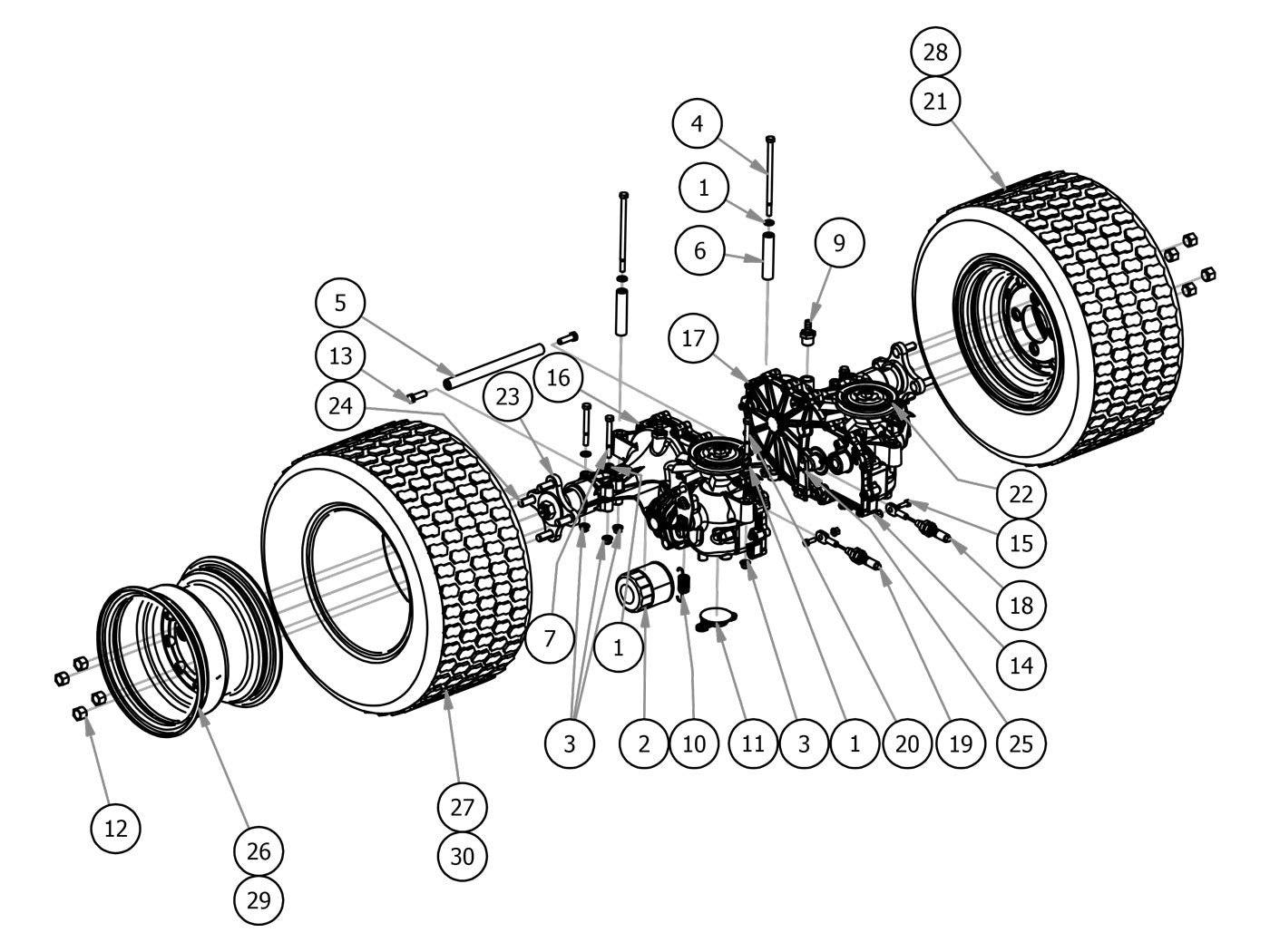

Transaxle Assembly

Parts Index
- 1 5/16 USS Flat Washer Zinc (Qty 8)
- 2 ZT Hydraulic Filter (Qty 2)
- 3 5/16-18 Nylon Flange Nut (Qty 8)
- 4 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 5 2017 Transaxle Spacer-ZT (Qty 1)
- 6 2017 Transaxle Spacer (Qty 2)
- 7 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 9 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 10 Gold Transaxle Spring (Qty 2)
- 11 ZT Transaxle Charge Plate (Qty 2)
- 12 Acorn Lug Nut (Qty 8)
- 13 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 14 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 15 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 16 OBSOLETE USE 050-2095-01 (Qty 1)

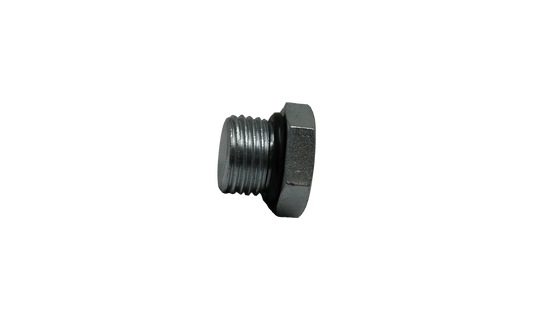

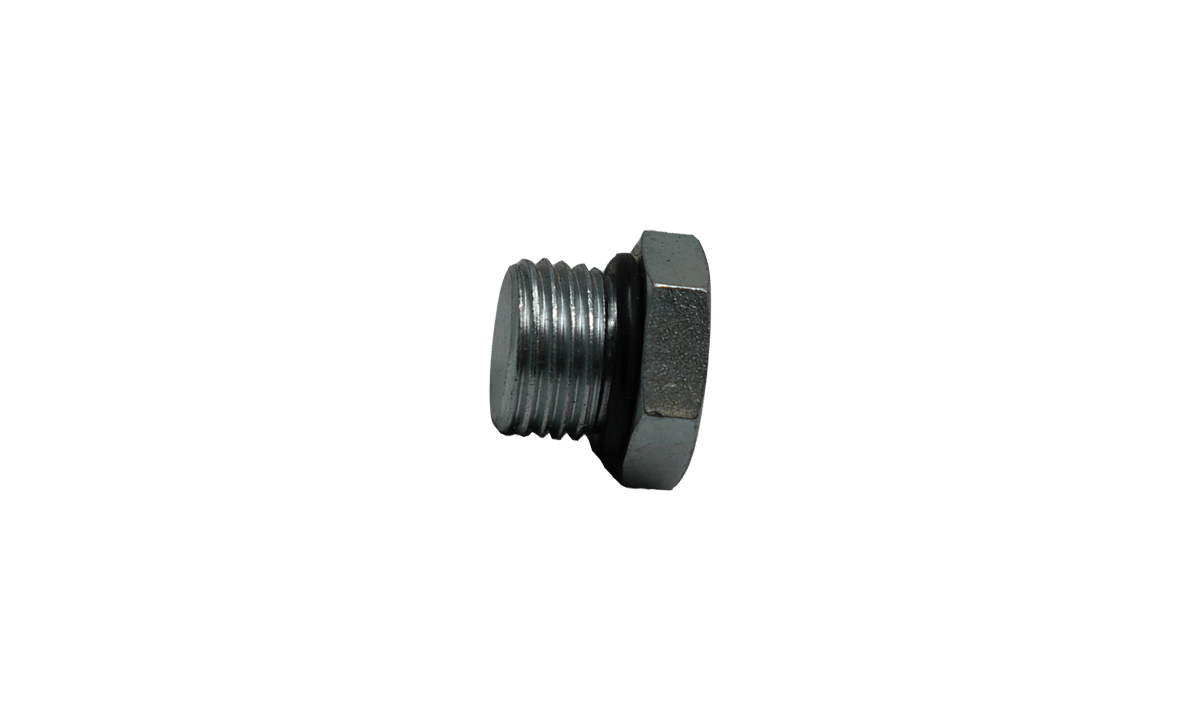

- 17 Transaxle Drain Plug for 050-2095-00 / 050-2096-00 (Qty 1)
- 18 2017 ZT Brake Cable-18.50" (Qty 1)
- 19 2017 ZT Brake Cable-24.50" (Qty 1)
- 20 5/16 x 2 1/2 Bolt (Qty 2)
- 21 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 22 Fan/Pulley Kit for ZT / 2017 MZ (Qty 2)
- 23 ZT Transaxle Wheel Hub (Qty 2)
- 24 Transaxle Wheel Studs/ Drum Brake Studs (Qty 8)
- 25 Transaxle Brake Lever (Qty 2)
- 26 2017 ZT Black Wheel (Qty 2)
- 27 2014 ZT Tire Only 22x11-10 (Qty 2)
- 28 2017 ZT Black Assembly 22x10-10 (Qty 2)
- 29 2017 48 ZT 10" Black Wheel (Qty 2)
- 30 2017 22x10-10 Tire for the 48" ZT (Qty 2)
