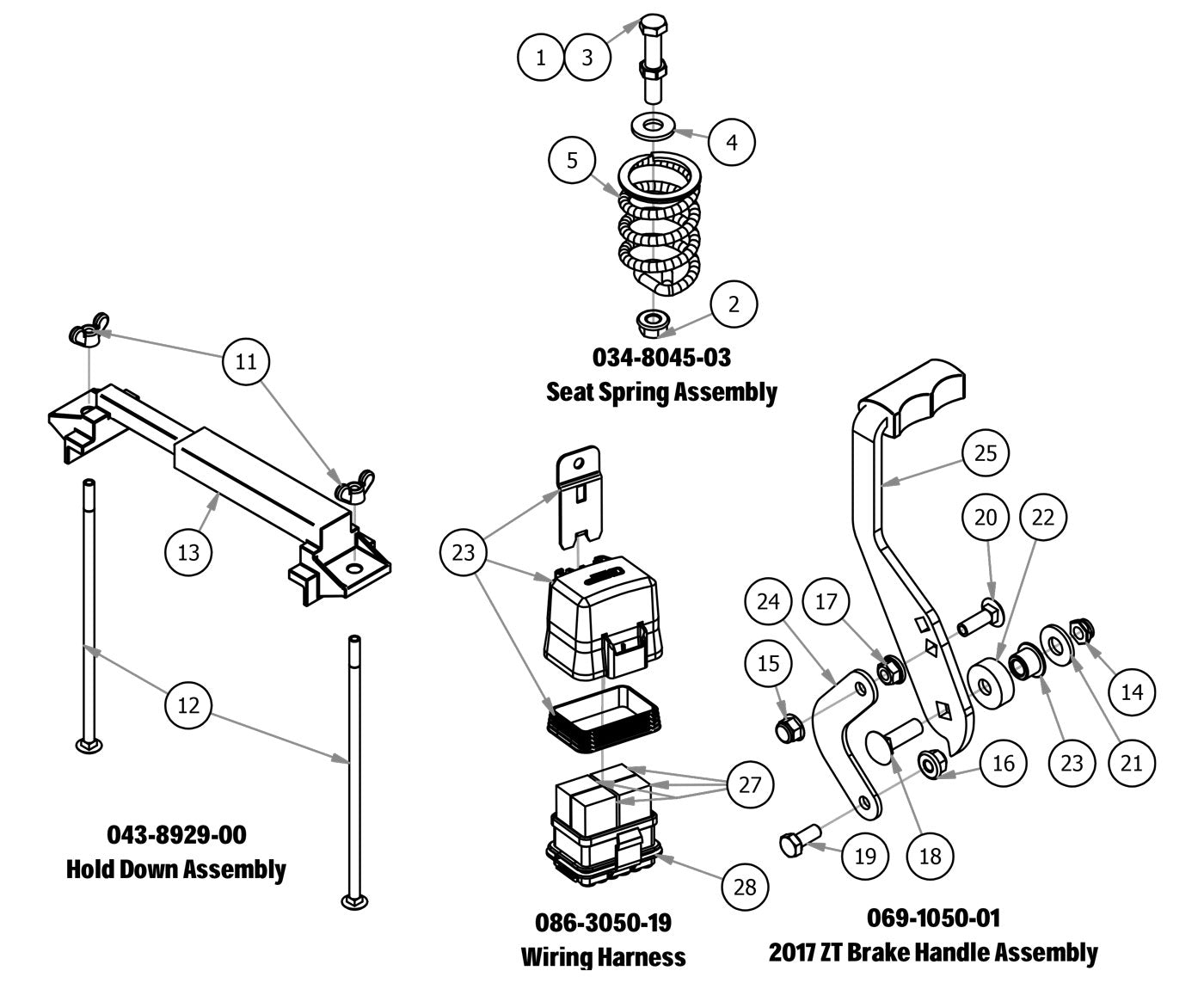

Seat Spring, Hold Down, Brake Handle, Wiring Harness
Parts Index
- 1 3/8-16 Half Jam Nut (Qty 1)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 4 3/8 USS Flat Washer Zinc (Qty 1)
- 5 Seat Spring (Qty 1)
- 11 1/4-20 Wing Nuts Zinc (Qty 2)
- 12 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 13 Battery Hold Down (Plastic) (Qty 1)
- 14 3/8-16 Centerlock Half Nut (Qty 1)
- 15 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 1)
- 17 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 18 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 19 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 20 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 21 3/8 USS Flat Washer Zinc (Qty 1)
- 22 Brake Lever Spacer (Qty 1)
- 23 Bronze Bushing SF-1220-8 (Qty 1)
- 24 Brake Cable Adapter Bracket (Qty 1)
- 25 Brake Handle (Qty 1)
- 26 2019 Relay Cap Kit (Qty 1)
- 27 2019 Relay Terminal (Qty 4)
- 28 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
421#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
11#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
13#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
14#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
15#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
19#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
22#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
23#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
24#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
25#069-1050-00
Brake Handle
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
26#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
27#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
28#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
