Kawasaki FR-730V

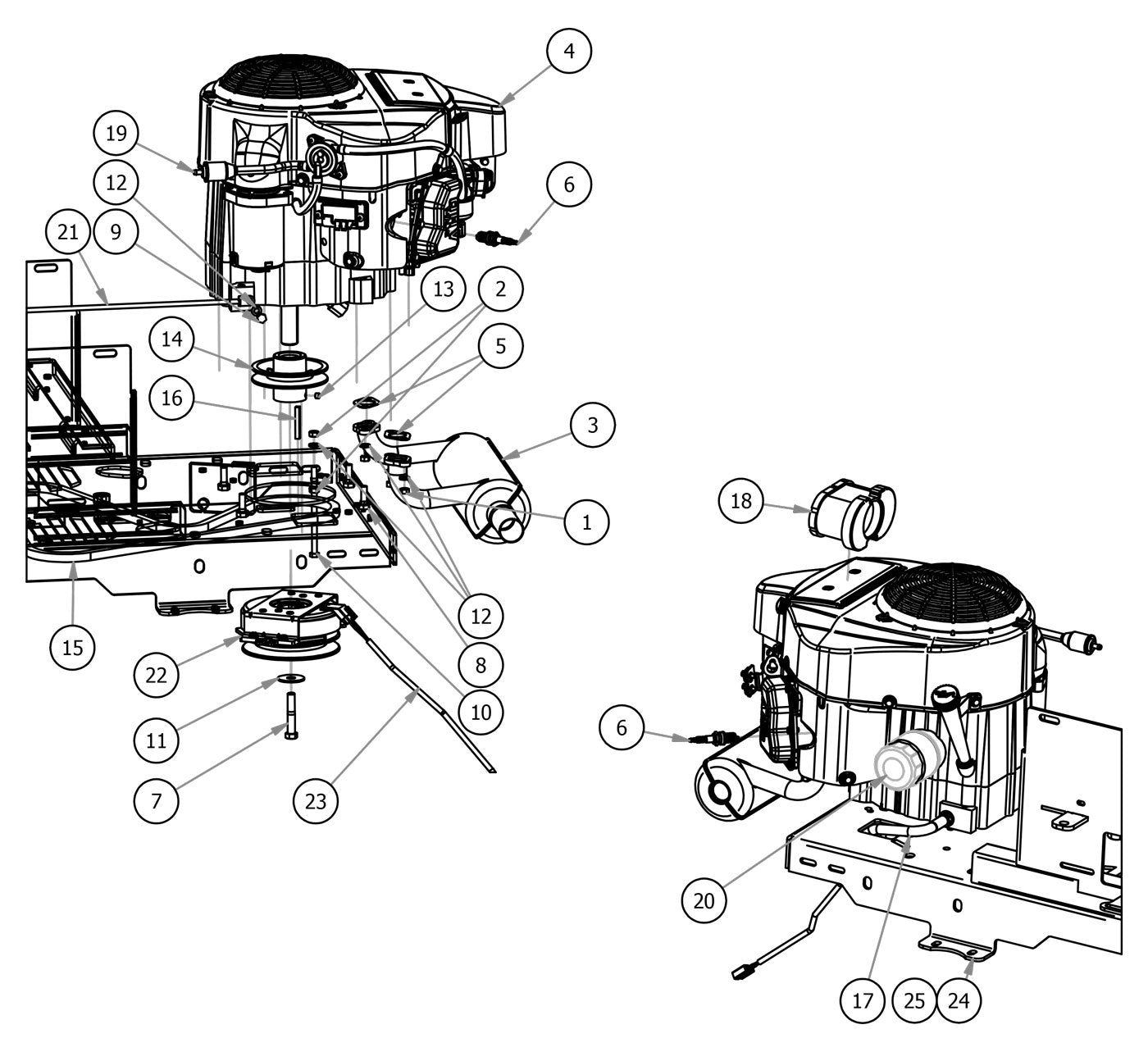

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 5/16-18 Hex Nuts Zinc (Qty 2)
- 3 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 FR730V-S16 Kawasaki Engine (Qty 1)
- 5 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 6 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 1)
- 8 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 9 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 10 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 11 1/2 Belleville Washer #K2000-G (Qty 1)
- 12 5/16 Lock washer Zinc (Qty 6)
- 13 5/16-24 x 1/4 Set Screw (Qty 1)
- 14 4 3/4 Motor Pulley (Qty 1)
- 15 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 16 1/4 X 2 Square Key Stock (Qty 1)
- 17 Kawasaki Oil Drain (Qty 1)
- 18 22-26 Kaw Air Filter FR / FS (Qty 1)
- 19 Universal Inline Fuel Filter (Qty 1)
- 20 Kawasaki Oil Filter (Qty 1)
- 21 24 inch Black Cable - MZ/ZT (Qty 1)
- 22 Clutch For 1-1/8" Shaft (Qty 1)
- 23 Clutch Pigtail (Qty 1)
- 24 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 25 2017 MZ/ZT 42"-48" Frame (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-0090-00
FR730V-S16 Kawasaki Engine
Qty Used: 1Regular price $2,299.99 USDRegular priceUnit price per
-
5#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
6#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
78#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
9#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
10#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
11#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
12#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
13#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
14#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
15#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
16#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
17#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
18#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
19#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
20#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
21#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
23#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
24#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
25#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
