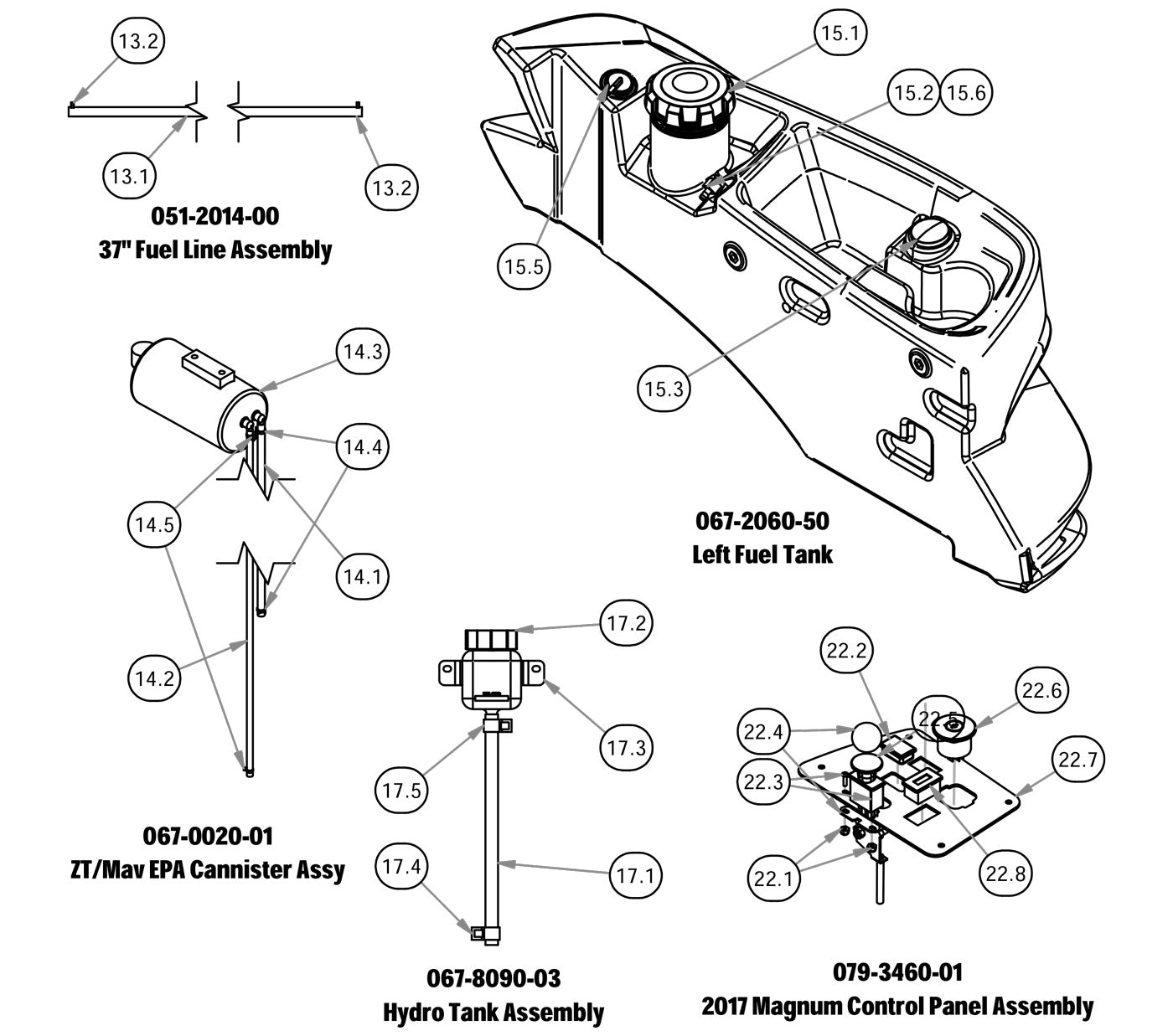

Fuel Line, Fuel Tank, EPA Cannister, Hydro Tank, Control Panel
Parts Index
- 13.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 13.2 1/4 Fuel Line Clamp (Qty 2)
- 14.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 14.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 14.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 14.5 3/16" Vinyl Hose Clamp (Qty 2)
- 15.1 3.5" Tethered Fuel Cap (Qty 1)
- 15.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 15.3 Fuel Gauge w/ Grommet (Qty 1)
- 15.5 Rollover Valve and Grommet New (Qty 1)
- 15.6 Grommet for ZT Elite Fuel Line (Qty 1)
- 17.1 2017 ZT/ Maverick Hydro Tank Hose (Qty 1)
- 17.2 ZT Hydraulic Tank Cap (Qty 1)
- 17.3 71328-Expansion Tank CZT/ZT (Qty 1)
- 17.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 17.5 1/2 Hose Clamp (Qty 1)
- 22.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 22.2 Light Plug (Qty 1)
- 22.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 22.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 22.5 PTO Engager-Switch for Blades (Qty 1)
- 22.6 Ignition Switch (Qty 1)
- 22.7 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 22.8 2019 Magnum TSC Only Tach (Qty 1)
-
13.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
13.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
14.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
14.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
14.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
14.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
15.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
15.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
15.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
15.5#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
15.6#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
17.1#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
17.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
17.3#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
17.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
17.5#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
22.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
22.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
22.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
22.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
22.7#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
22.8#083-4013-01
2019 Magnum TSC Only Tach
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
