Tanks & Rear Cover

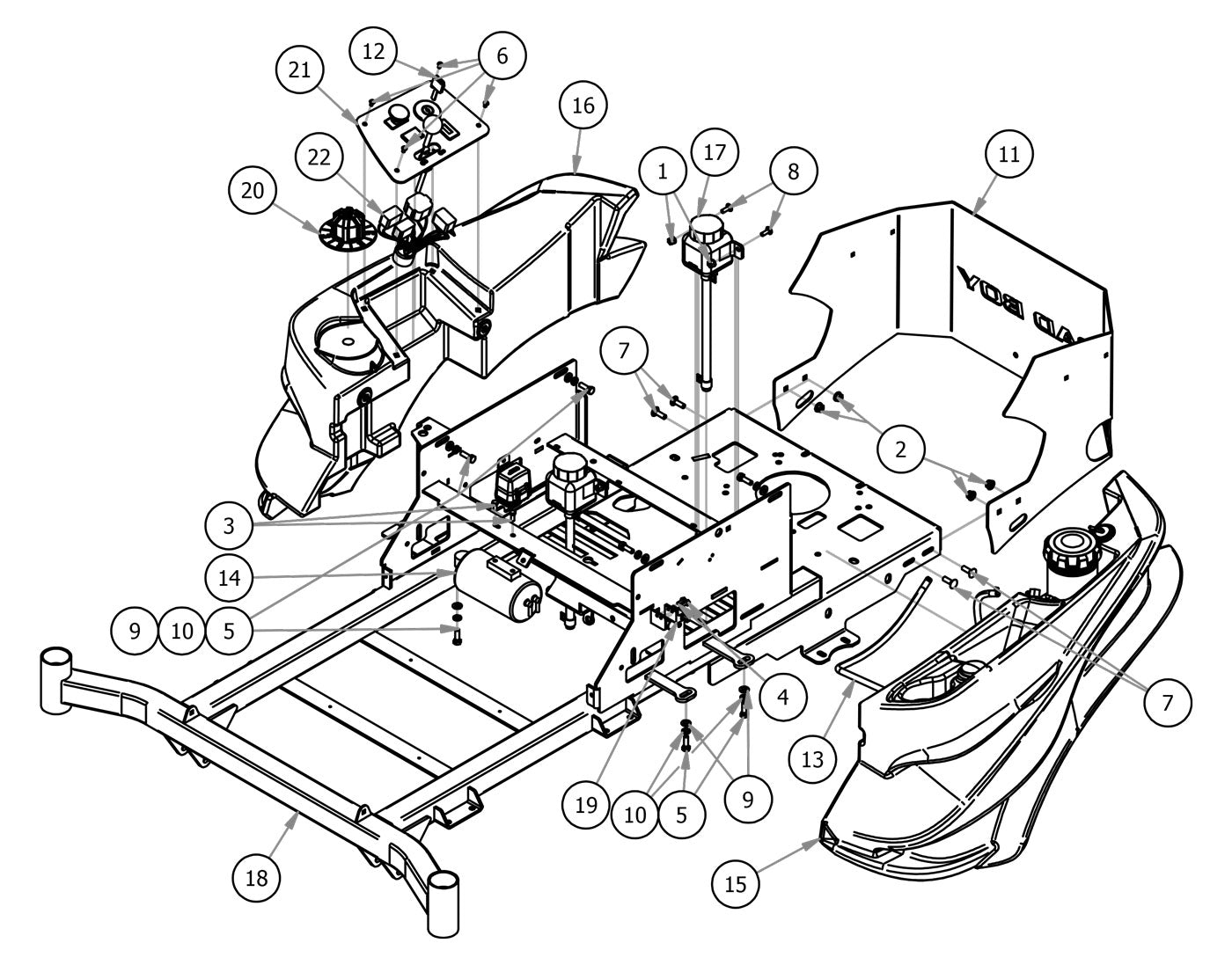

Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 5/16-18 Nylon Flange Nut (Qty 4)
- 3 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 4 12-24 x 1/2 HWH Bolt (Qty 4)
- 5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 6 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 7 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 8 1/4 x 3/4 Carriage Bolt (Qty 4)
- 9 5/16 USS Flat Washer Zinc (Qty 7)
- 10 5/16 Lock washer Zinc (Qty 7)
- 11 2017 ZT Rear Plate--Orange (Qty 1)
- 12 Ignition Key (Qty 1)
- 13 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 14 ZT/Mav EPA Cannister Assy (Qty 1)
- 15 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 16 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 17 2017 ZT Hydro Tank Assembly (Qty 2)
- 18 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 19 Safety Switch (Qty 2)
- 20 Deck Height Dial (Qty 1)
- 21 ZT/MAV Control Panel Assy (Qty 1)
- 22 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
3#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
6#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
9#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
10#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
11#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
12#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
13#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
14#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
15#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
16#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
17#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
18#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
19#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
20#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
21#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
22#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
