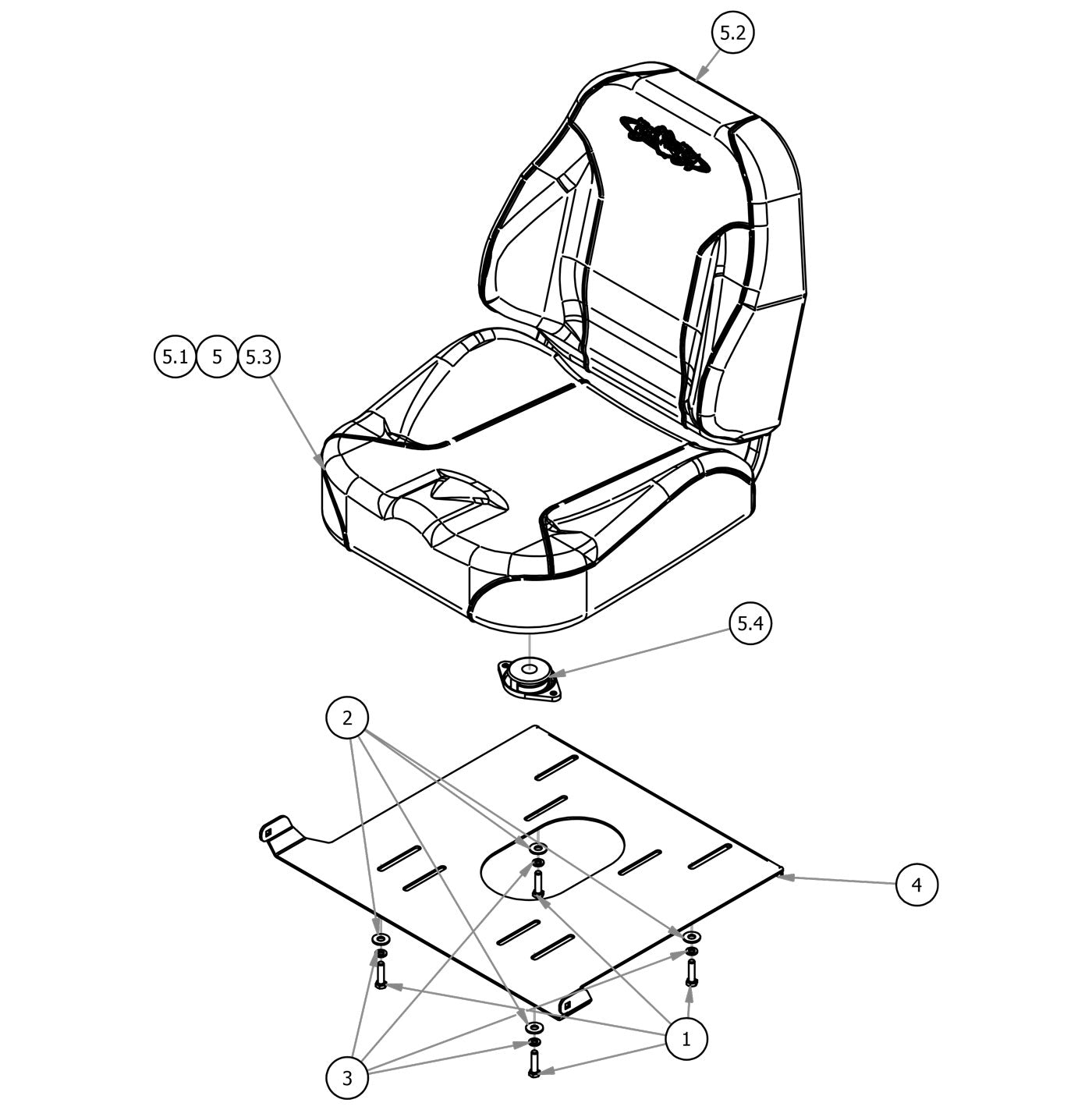

Seat Assembly
Parts Index
- 1 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 2 5/16 USS Flat Washer Zinc (Qty 4)
- 3 5/16 Lock washer Zinc (Qty 4)
- 4 2017 MZ Seat Plate--Orange (Qty 1)
- 5 2020 Magnum HD Seat (Qty 1)
- 5.1 Seat Cover Molded Foam for 071-2040-18/071-5080-18 (Qty 1)
- 5.2 Back Cover for 071-2040-18 (Qty 1)
- 5.3 Seat Cover for 071-2040-18 (Qty 1)
- 5.4 OBSOLETE USE 071-8061-00 (Qty 1)
-
1#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
3#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
4#026-2017-00
2017 MZ Seat Plate--Orange
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
5#071-5025-00
2020 Magnum HD Seat
Qty Used: 1Regular price $329.99 USDRegular priceUnit price per
-
5.1#071-2042-01
Seat Cover Molded Foam for 071-2040-18/071-5080-18
Qty Used: 1Regular price $92.89 USDRegular priceUnit price per
-
5.2#071-2041-00
Back Cover for 071-2040-18
Qty Used: 1Regular price $123.39 USDRegular priceUnit price per
-
5.3#071-2042-00
Seat Cover for 071-2040-18
Qty Used: 1Regular price $123.39 USDRegular priceUnit price per
-
5.4#071-2045-00
OBSOLETE USE 071-8061-00
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
