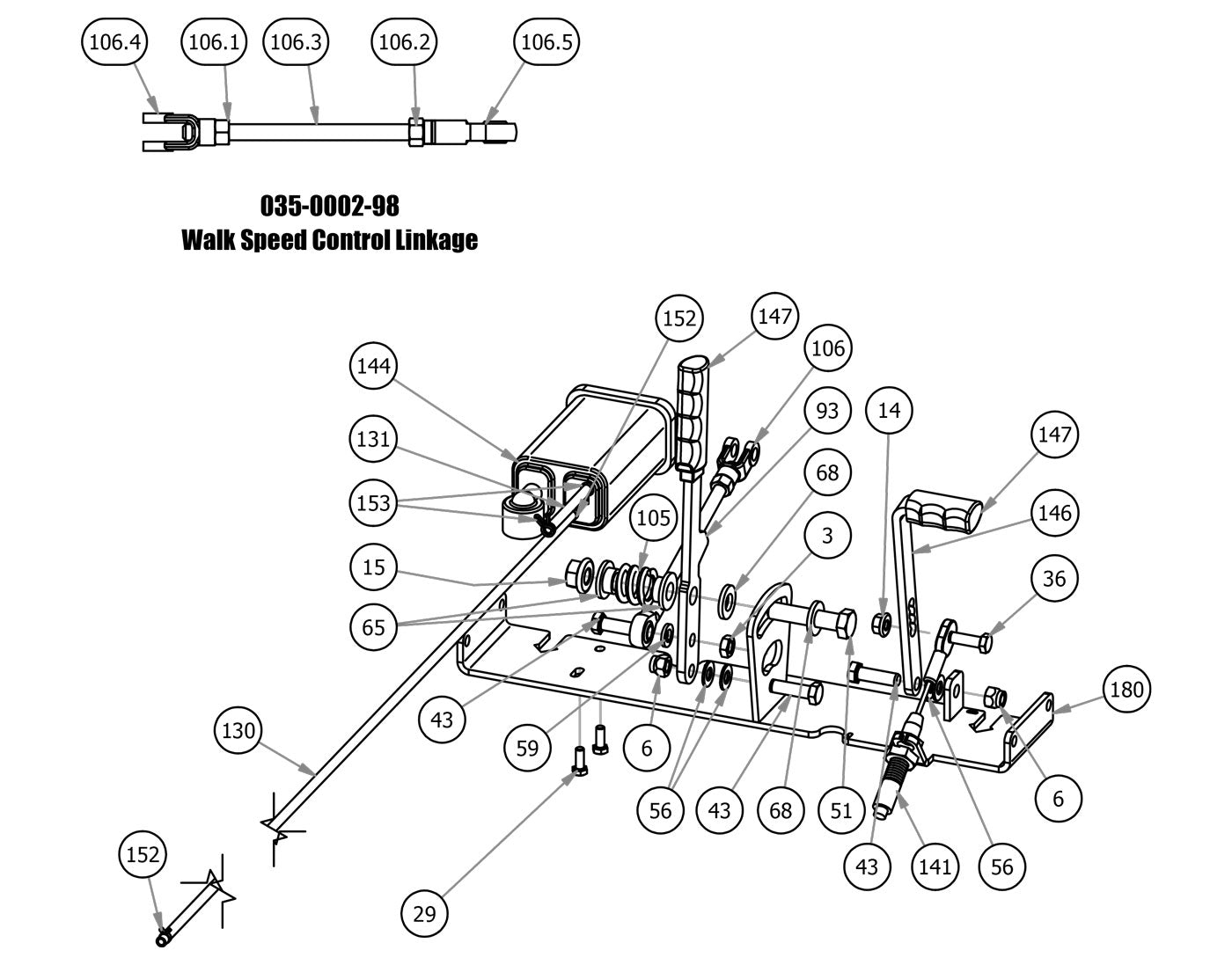

Walk Speed Control Assembly
Parts Index
- 3 3/8-16 Centerlock Half Nut (Qty 1)
- 6 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 14 5/16-18 Nylon Flange Nut (Qty 1)
- 15 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 29 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 36 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 43 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 3)
- 51 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 56 .390x.750x.062 Nylon Washer (Qty 4)
- 59 3/8 Lockwasher Zinc (Qty 1)
- 65 .515 ID Plastic Shoulder Washer (Qty 2)
- 68 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 93 Walk Behind Speed Control Lever--Black (Qty 1)
- 105 Drive Lever Housing Spring (Qty 1)
- 106 2017 Walk Behind Speed Control Rod Assembly (Qty 1)
- 106.2 3/8-24 Hex Nut Zinc (Qty 1)
- 106.3 2017 Walk Behind Speed Control Rod (Qty 1)
- 106.4 2017 Walk Behind Left Hand Yoke Speed Control (Qty 1)
- 106.5 Spherical Rod End (Qty 1)
- 130 44" x 3/16" black hose (Qty 1)
- 131 Clear 3/16" Magnum Air Line (Qty 1)
- 141 Brake Cable Walk Behind/Revolt (Qty 1)
- 144 Carbon Canister for Magnum/MZ (Qty 1)
- 146 Walk Behind Brake Handle--Black (Qty 1)
- 147 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 152 3/16" Vinyl Hose Clamp (Qty 2)
- 153 8.6 mm Hose Clamp (Qty 2)
- 180 2020 Walk Behind Cross Support--Orange (Qty 1)
-
3#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
6#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
29#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
36#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
43#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
51#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
56#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
59#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
65#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
68#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
93#031-0036-00
Walk Behind Speed Control Lever--Black
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
105#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
106.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod
Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Left Hand Yoke Speed Control
Regular price $0.00 USDRegular priceUnit price per
-
106.5#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
130#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
131#051-2027-00
Clear 3/16" Magnum Air Line
Qty Used: 1Regular price $1.31 USDRegular priceUnit price per
-
141#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
144#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
146#069-2020-00
Walk Behind Brake Handle--Black
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
147#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
152#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
153#072-8075-00
8.6 mm Hose Clamp
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
180#201-1171-00
2020 Walk Behind Cross Support--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
