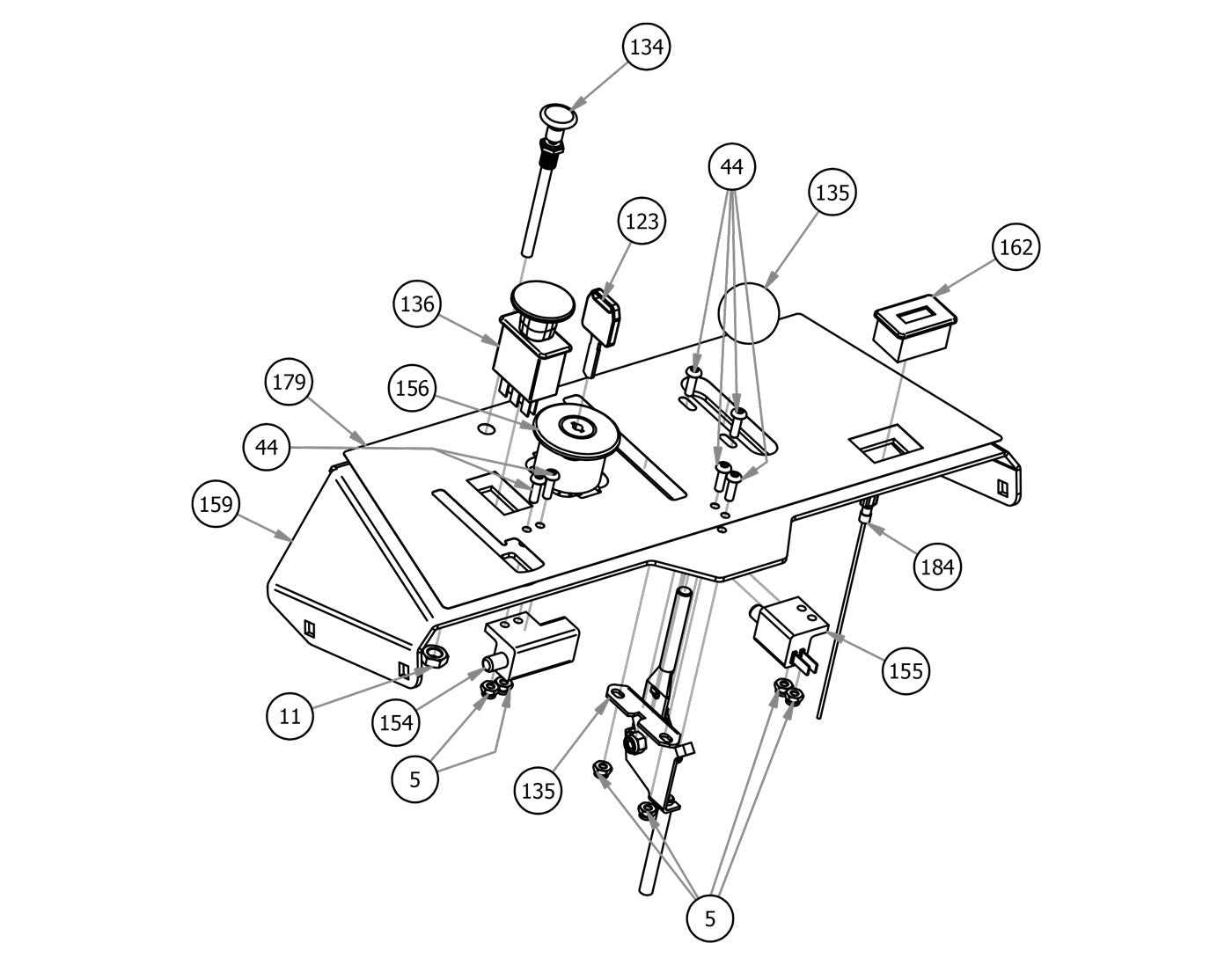

Control Panel
Parts Index
- 5 10-24 Nylon Insert Locknut Zin (Qty 6)
- 11 3/8-24 Hex Nut Zinc (Qty 1)
- 44 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 123 Ignition Key (Qty 1)
- 134 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 135 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 136 PTO Engager-Switch for Blades (Qty 1)
- 154 2017? Walk Behind-Safety Switch Brake (Qty 1)
- 155 2017? Walk Behind-Safety Switch (Qty 1)
- 156 2017? Walk Behind-Key Switch (Qty 1)
- 162 Tachometer-N310-0100-1018 (Qty 1)
- 179 2020 Walkbehind Contol Panel Decal (Qty 1)
- 184 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
5#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
11#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
44#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
123#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
134#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
135#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
136#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
154#077-0001-00
2017? Walk Behind-Safety Switch Brake
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
155#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
156#077-0003-00
2017? Walk Behind-Key Switch
Qty Used: 1Regular price $30.64 USDRegular priceUnit price per
-
162#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
179#091-4055-00
2020 Walkbehind Contol Panel Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
184#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
