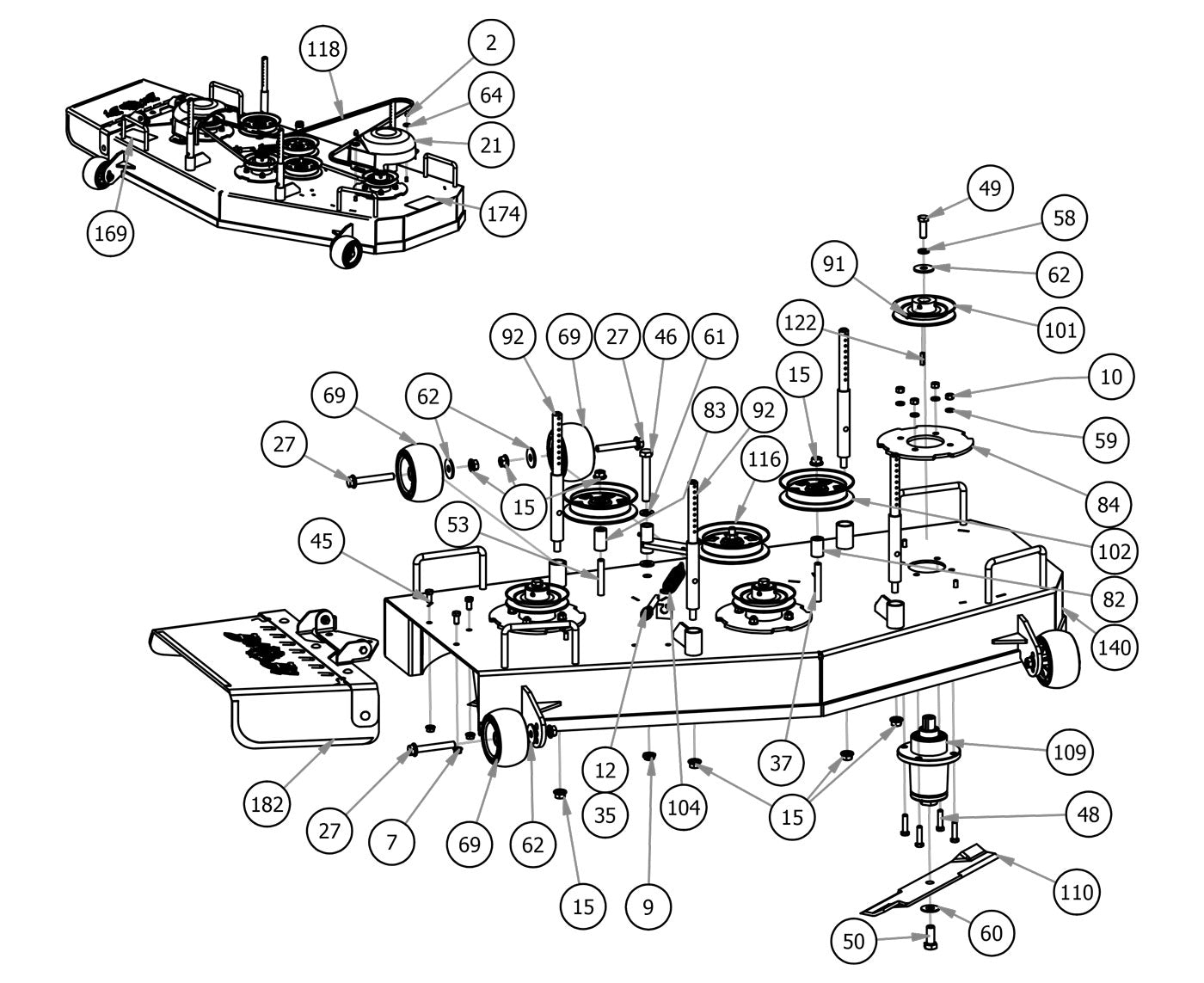

54" Deck Assembly
Parts Index
- 2 Acorn Nut-Pulley Cover (Qty 4)
- 7 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 9 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 10 3/8-16 Hex Nuts Zinc (Qty 12)
- 12 1/2-13 Hex Nuts Zinc (Qty 2)
- 15 1/2-13 Nylon Insert Flange Nut (Qty 10)
- 21 Raider Pulley Cover (Qty 2)
- 27 Deck Wheel Bolt (Qty 4)
- 35 All Thread (Qty 1)
- 37 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 1)
- 45 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 3)
- 46 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 48 3/8 x 1 1/2 Bolt (Qty 12)
- 49 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 50 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 53 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 1)
- 58 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 3)
- 59 3/8 Lockwasher Zinc (Qty 12)
- 60 5/8 Flat Washer (Qty 3)
- 61 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 62 1/2 Belleville Washer #K2000-G (Qty 7)
- 64 .360 ID Black Plastic Washer (Qty 4)
- 69 Deck Wheel (Qty 4)
- 82 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 83 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 84 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 91 5/16-24 x 1/4 Set Screw (Qty 3)
- 92 2017 Walk Behind Deck Hanger (Qty 4)
- 101 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (Qty 3)
- 102 5 3/4 Idler Pulley-Capitol (Qty 2)
- 104 2015 Deck Idler Spring (Qty 1)
- 109 Spindle-Aluminum (Qty 3)
- 110 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 116 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 118 2020 54" Walk Behind / 48" MZ Deck Belt (Qty 1)
- 122 1/4 x 1 Square Key (Qty 3)
- 169 48" Deck Height Adjustment Decal (Qty 1)
- 174 2018 54" Deck Decal (Qty 1)
- 176 Danger Decal-Spindle/Discharge (Qty 2)
- 182 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
2#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
7#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
9#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
10#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
12#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 10Regular price $1.39 USDRegular priceUnit price per
-
21#014-4000-00
Pulley Cover
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
27#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
35#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
37#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
4546#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
48#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
49#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
50#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
5358#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 3Regular price $1.99 USDRegular priceUnit price per
-
59#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
60#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
61#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
62#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
64#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
69#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
82#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
83#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
84#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
91#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
92#031-0023-00
2017 Walk Behind Deck Hanger
Qty Used: 4Regular price $43.95 USDRegular priceUnit price per
-
101#033-6006-00
5.25" Deck Pulley-54" ZT/Maverick/Outlaw
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
102#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
104#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
109#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
110#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
116#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
118#041-6027-00
2020 54" Walk Behind / 48" MZ Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
122#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
169#091-0024-00
48\" Deck Height Adjustment Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
174#091-0904-18
2018 54" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
176#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
182#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
