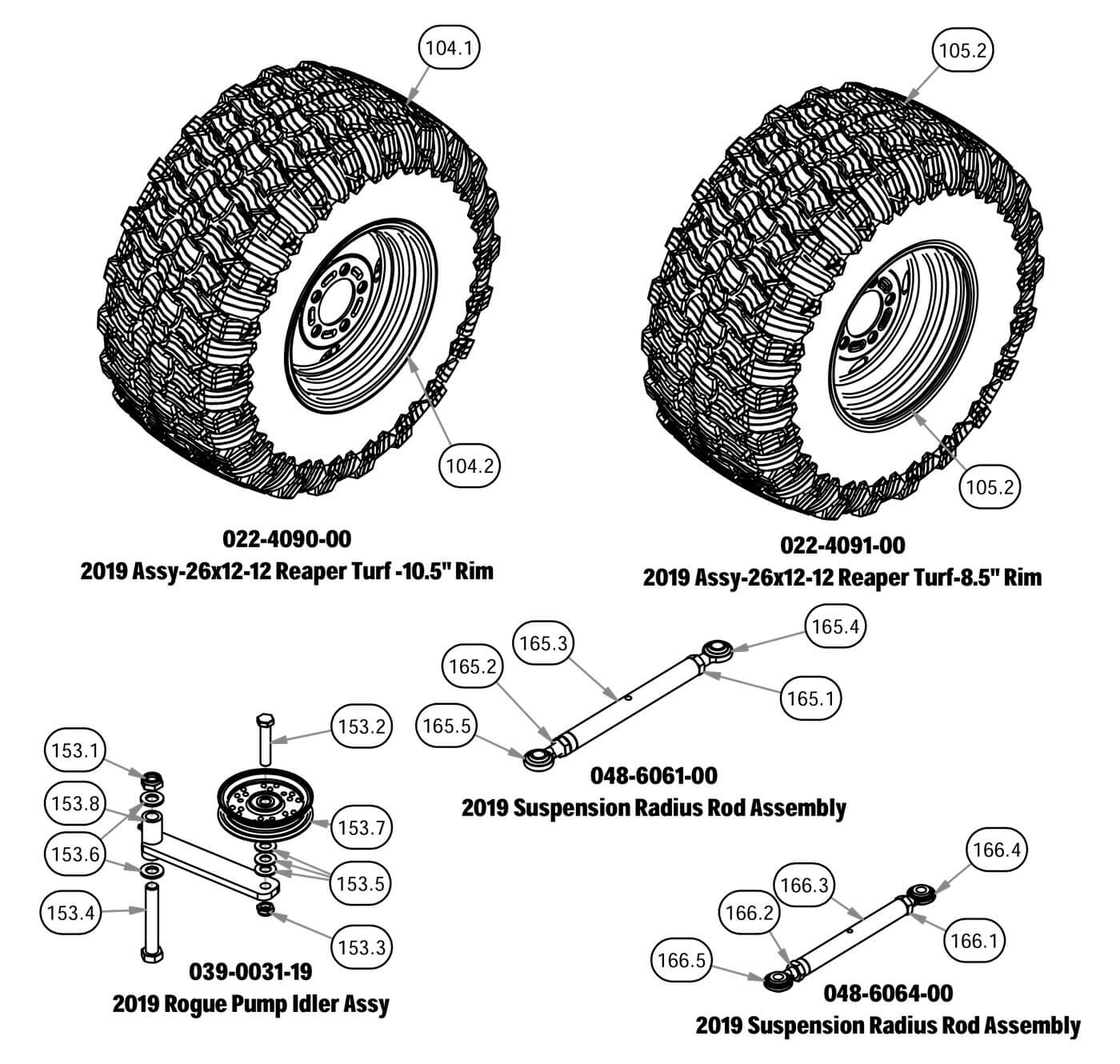

Wheels, Suspension Radius Rod, & Pump Idler
Parts Index
- 104.1 2019 26x12-12 Reaper Turf Tire (Qty 1)
- 104.2 2019 10.5" Wheel Fits 022-4090-00 (Qty 1)
- 105.1 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 105.2 2019 26x12-12 Reaper Turf Tire (Qty 1)
- 153.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 153.2 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 153.3 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 153.4 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 153.5 1/2 SAE Flat Washer GR 8 (Qty 3)
- 153.6 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 153.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 153.8 Drive Tensioner (Qty 1)
- 165.1 Nut, 5/8-18 RH (Qty 1)
- 165.2 Nut, 5/8-18 LH (Qty 1)
- 165.3 2019 Suspension Link Body-RH and LH Threads (Qty 1)
- 165.4 Heim 5/8" RH (Qty 1)
- 165.5 Heim 5/8" LH (Qty 1)
- 166.2 3/4 - 16 LH Half Nut (Qty 1)
- 166.4 Hime RH (3/4 body | 5/8 hole) (Qty 1)
- 166.5 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
-
104.1105.2#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
104.2#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
105.1#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
153.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
153.2#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
153.3#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
153.4#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
153.5#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 3Regular price $0.75 USDRegular priceUnit price per
-
153.6#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
153.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
153.8#039-0031-00
Drive Tensioner
Qty Used: 1Regular price $25.29 USDRegular priceUnit price per
-
165.1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
165.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
165.3#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
165.4#048-6062-00
Heim 5/8" RH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
165.5#048-6063-00
Heim 5/8" LH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
166.2#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
166.4#048-6065-00
Hime RH (3/4 body | 5/8 hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
166.5#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
