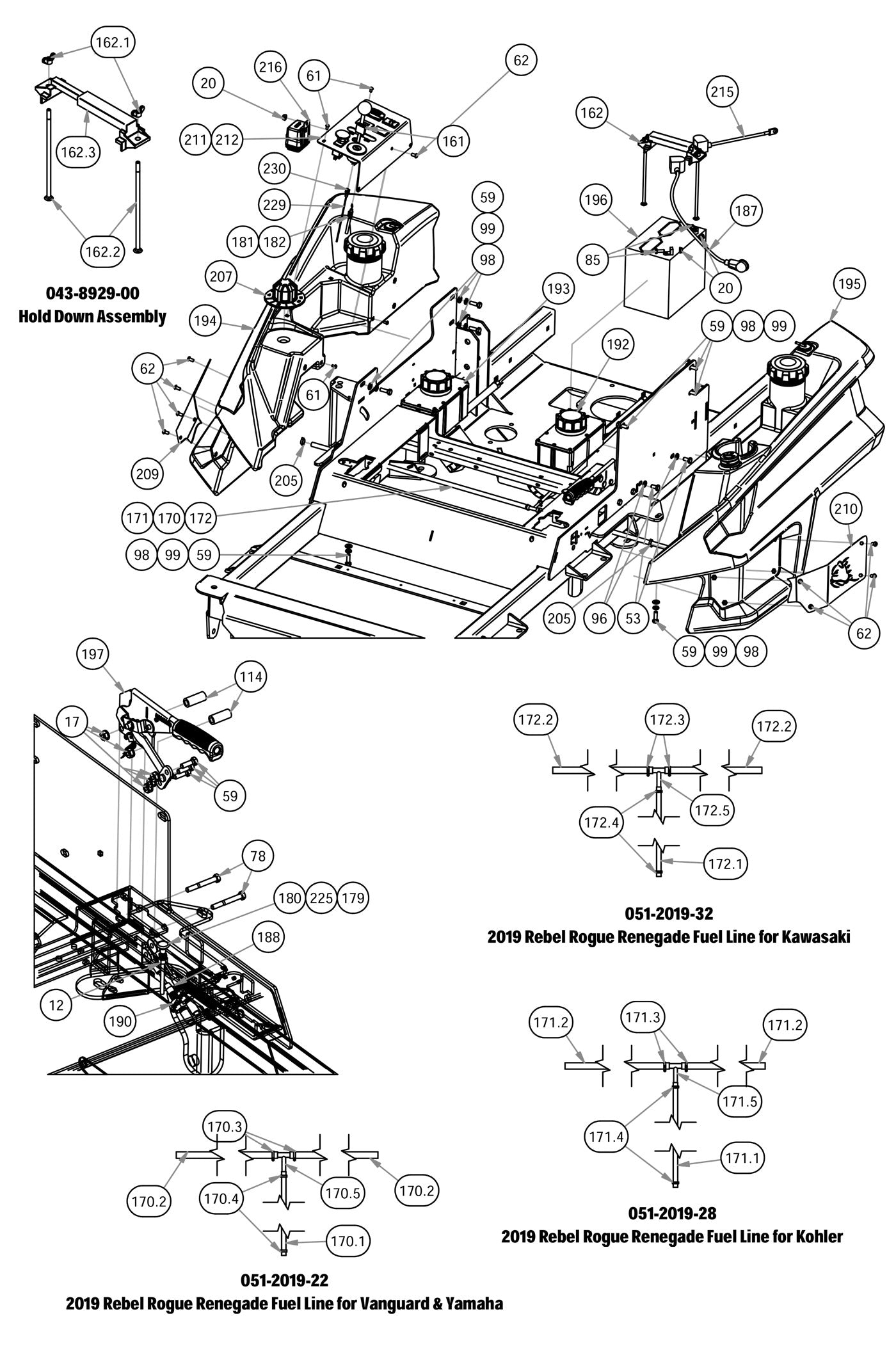

Tanks & Battery
Parts Index
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 5)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 4)
- 53 5/16-18 x 5/8 Hex Bolt (Qty 4)
- 59 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 11)
- 61 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 62 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 9)
- 78 5/16 x 2 1/2 Bolt (Qty 2)
- 85 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 96 1/4 USS Flat Washer Zinc (Qty 4)
- 98 5/16 USS Flat Washer Zinc (Qty 8)
- 99 5/16 Lock washer Zinc (Qty 8)
- 114 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 161 Ignition Key (Qty 1)
- 162 Battery Hold Down (Plastic) (Qty 1)
- 162.1 1/4-20 Wing Nuts Zinc (Qty 2)
- 162.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 162.3 Battery Hold Down (Plastic) (Qty 1)
- 170 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 170.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 170.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 170.3 5/8 Fuel Line Clamp (Qty 2)
- 170.4 1/4 Fuel Line Clamp (Qty 2)
- 170.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 171 2019 R-Series Fuel Line for Kohler (Qty 1)
- 171.1 28" 1/4 Fuel Line No Clamp (Qty 1)
- 171.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 171.3 5/8 Fuel Line Clamp (Qty 2)
- 171.4 1/4 Fuel Line Clamp (Qty 2)
- 171.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 172 2019 Rebel Rogue Kaw Fuel Line (Qty 1)
- 172.1 32" 1/4" Fuel Line No Clamps (Qty 1)
- 172.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 172.3 5/8 Fuel Line Clamp (Qty 2)
- 172.4 1/4 Fuel Line Clamp (Qty 2)
- 172.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 179 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 180 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 181 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 182 2019 Throttle Cable (Qty 1)
- 187 24 Red Battery Cable (Qty 1)
- 188 2019 Short Brake Cable-Suspension Models (Qty 1)
- 190 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 192 LH Rogue Hydro Tank Assy (Qty 1)
- 193 RH Rogue Hydro Tank Assy (Qty 1)
- 194 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 195 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 196 Battery - All models except Renegade and Revolt (Qty 1)
- 197 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 203 OBSOLETE USE 070-5375-00 (Qty 1)
- 205 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 207 Deck Height Dial (2 - 6) (Qty 1)
- 209 Fuel Tank Insert--RH--Orange (Qty 1)
- 210 Fuel Tank Insert--LH--Orange (Qty 1)
- 211 Rogue/Rebel EFI Control Panel Assy (Qty 1)
- 212 Rebel/Rogue Control Panel Assy (Qty 1)
- 215 Rebel, Rogue Ground Wire (Qty 1)
- 216 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
- 225 MIL Light (Qty 1)
- 229 16 Gauge Wire - Tachometer (Qty 1)
- 230 Female Terminal End (Qty 1)
-
229#216-1000-00
16 Gauge Wire - Tachometer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
230#216-1051-00
Female Terminal End
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
20#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
53#018-0068-00
5/16-18 x 5/8 Hex Bolt
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
59#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 11Regular price $0.00 USDRegular priceUnit price per
-
61#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
62#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 9Regular price $0.69 USDRegular priceUnit price per
-
78#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
85#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
96#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
98#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
99#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
114#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
161#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
162162.3#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
162.1#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
162.2#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
170#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
170.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
170.2171.2172.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
170.3171.3172.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
170.4171.4172.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
170.5171.5172.5#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
171#051-2019-28
2019 R-Series Fuel Line for Kohler
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
171.1#051-8067-28
28\" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
172#051-2019-32
2019 Rebel Rogue Kaw Fuel Line
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
172.1#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
179#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
180#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
181#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
182#055-8022-00
2019 Throttle Cable
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
187#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
188#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
190#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
192#067-8053-19
LH Rogue Hydro Tank Assy
Qty Used: 1Regular price $206.22 USDRegular priceUnit price per
-
193#067-8054-19
RH Rogue Hydro Tank Assy
Qty Used: 1Regular price $206.22 USDRegular priceUnit price per
-
194#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
195#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
196#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
197#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
203#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
205#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
207#077-9001-00
Deck Height Dial (2 - 6)
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
209#079-3290-00
Fuel Tank Insert--RH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
210#079-3291-00
Fuel Tank Insert--LH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
No sequence found for SKU:
Rogue/Rebel EFI Control Panel Assy
Regular price $0.00 USDRegular priceUnit price per
-
212#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
215#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
216#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
225#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
