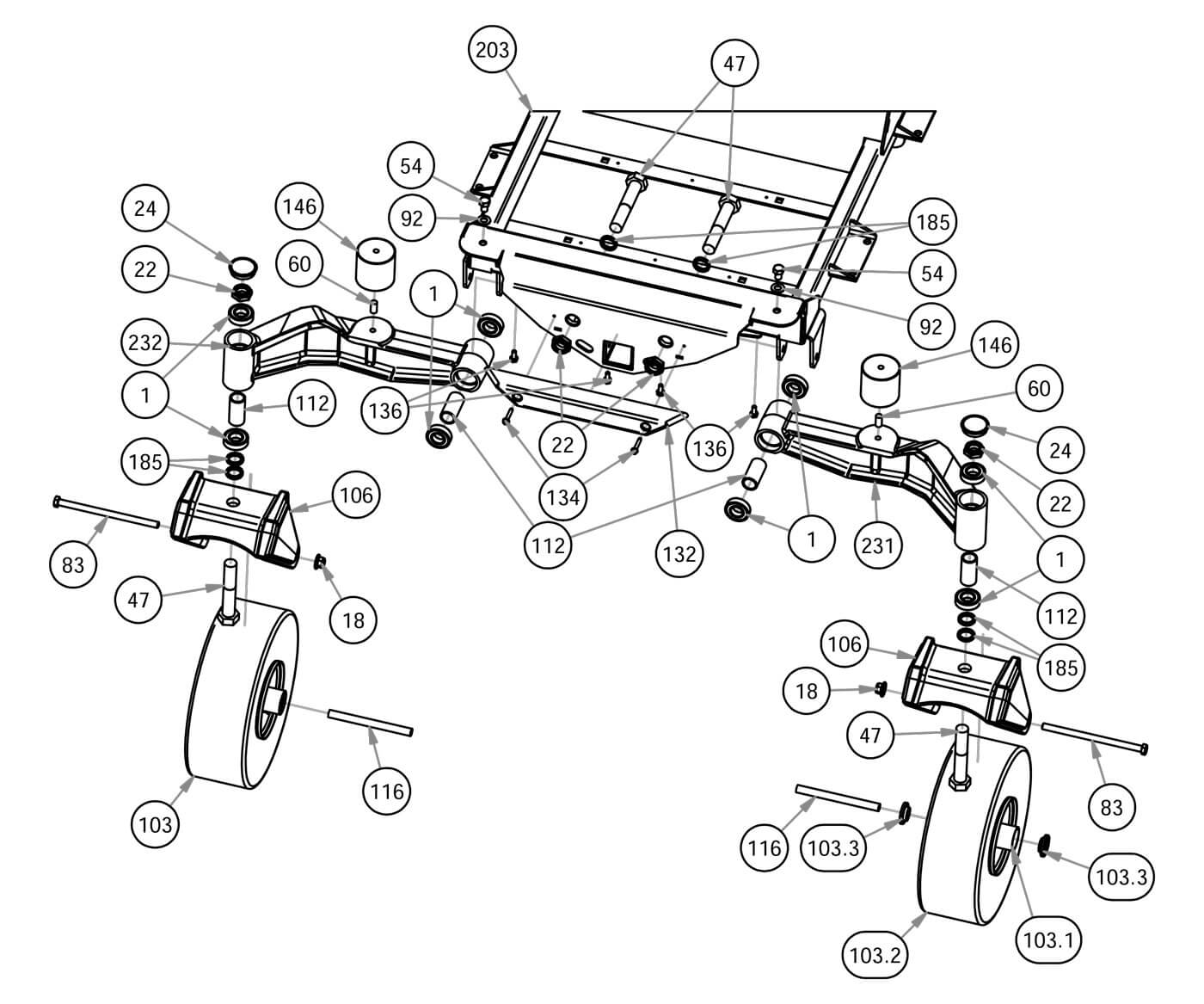

Front End
Parts Index
- 1 Caster Bearing (Qty 8)
- 7 M8 - 1.25 Stainless Steel Nut (Qty 12)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 22 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 24 Bearing Retainer Cap (Qty 2)
- 47 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 54 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 60 1/2-13 x 1" Stud (Qty 2)
- 83 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 92 1/2 SAE Flat Washer GR 8 (Qty 2)
- 99 5/16 Lock washer Zinc (Qty 12)
- 103 2019 Front Tire Assembly 15x6.00-6 pneumatic (Qty 2)
- 103.1 6x4.5 Wheel (Qty 0)
- 103.2 15x6-6 Tire Only (Qty 0)
- 103.3 1 3/4" Bearing-Large Bore (Qty 0)
- 106 2019 Rogue, Renegade Front Fork (Qty 2)
- 112 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 116 Front Wheel Spanner-All Models (Qty 2)
- 132 Bumper (Qty 1)
- 134 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 136 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 185 Spacer ( Front Fork and Suspension ) (Qty 6)
- 203 OBSOLETE USE 070-5375-00 (Qty 1)
- 231 2019 Front I-Beam Left (Qty 1)
- 232 2019 Front I-Beam Right (Qty 1)
- 146 Isolator (Blue Dot) (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 8Regular price $17.19 USDRegular priceUnit price per
-
7#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
22#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
24#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
47#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 4Regular price $12.99 USDRegular priceUnit price per
-
54#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
60#018-2009-00
1/2-13 x 1" Stud
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
83#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
92#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
99#019-8051-00
5/16 Lock washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
103#022-0002-00
2019 Front Tire Assembly 15x6.00-6 pneumatic
Qty Used: 2Regular price $144.99 USDRegular priceUnit price per
-
103.1#022-0005-00
6x4.5 Wheel
Qty Used: 0Regular price $72.99 USDRegular priceUnit price per
-
103.2#022-0004-00
15x6-6 Tire Only
Qty Used: 0Regular price $79.99 USDRegular priceUnit price per
-
103.3#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 0Regular price $18.99 USDRegular priceUnit price per
-
106#023-0004-00
2019 Rogue, Renegade Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
112#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
116#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
-
134#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
136#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
185#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
203#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
231#250-0032-00
2019 Front I-Beam Left
Qty Used: 1Regular price $218.90 USDRegular priceUnit price per
-
232#250-0033-00
2019 Front I-Beam Right
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
-
146#032-8999-00
Isolator (Blue Dot)
Qty Used: 1Regular price $60.02 USDRegular priceUnit price per
