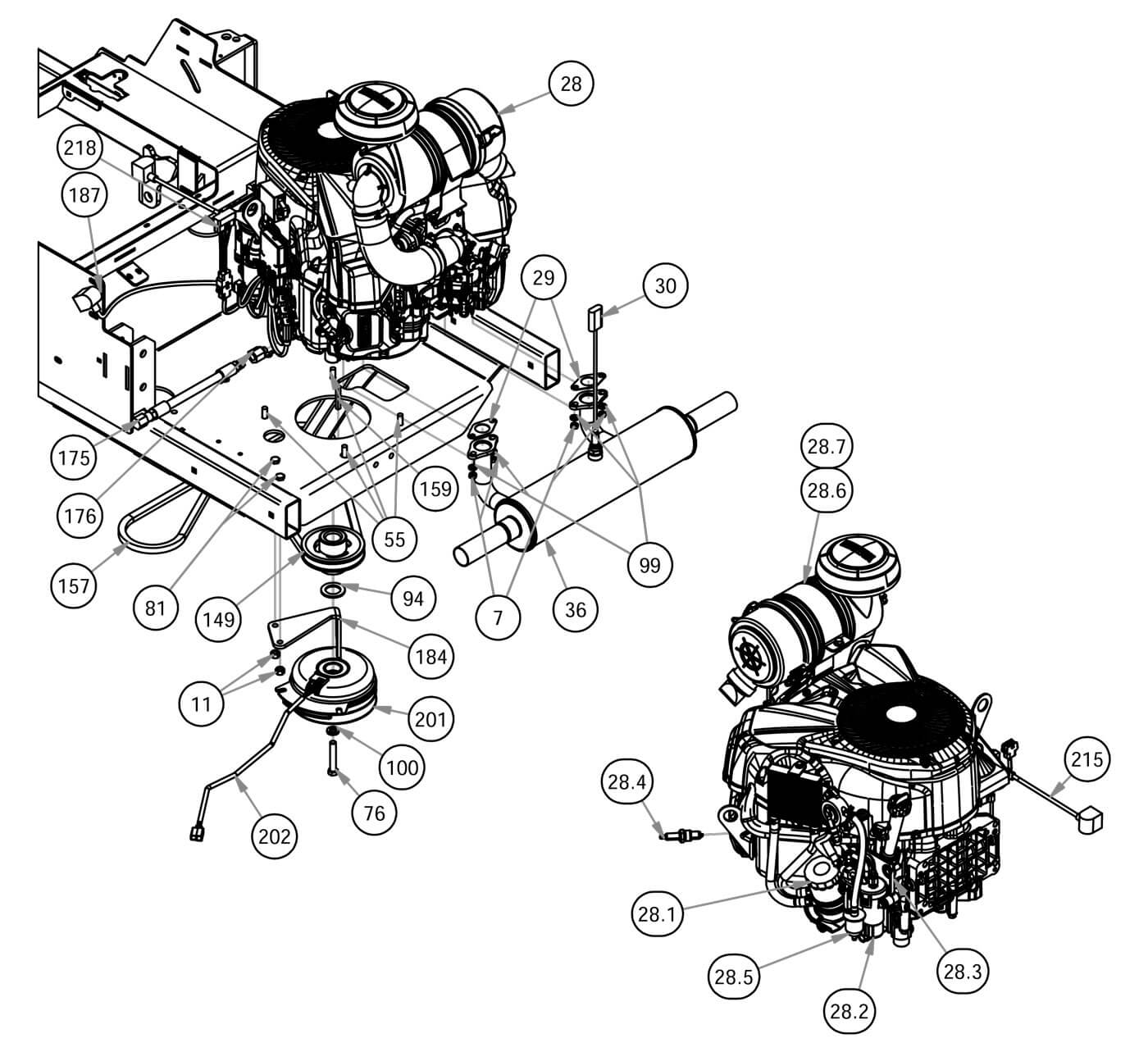

824cc Yamaha EFI 33HP
Parts Index
- 7 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 28 2017 Yamaha Engine-33hp (Qty 1)
- 28.1 2017 Yamaha Oil Filter (Qty 1)
- 28.2 2017 Yamaha High Pressure Fuel Pump (Qty 1)
- 28.3 2017 Yamaha Fuel Pump Bracket (Qty 1)
- 28.4 2017 Yamaha Spark Plug (Qty 2)
- 28.5 OBSOLETE USE 063-6000-00 (Qty 1)
- 28.6 Canister Air Fil Outer2010&Old (Qty 1)
- 28.7 Canister Air Filter - Inner (Qty 1)
- 29 2017 Yamaha Exhuast Gasket (Qty 2)
- 30 2017 Yamaha O2 Sensor (Qty 1)
- 36 2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler (Qty 1)
- 55 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 76 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 81 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 94 1.140x1.750x .132 Flat Washer (Qty 1)
- 99 5/16 Lock washer Zinc (Qty 4)
- 100 7/16 Lock washer zinc (Qty 1)
- 149 4 3/4 Motor Pulley (Qty 1)
- 157 2019 & up Rogue Pump Belt 68" (Qty 1)
- 159 1/4 X 2 Square Key Stock (Qty 1)
- 175 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 176 2019 Yamaha EFI Oil Drain Adaptor (Qty 1)
- 184 PTO Engager Holder-Clutch--Plated (Qty 1)
- 187 24 Red Battery Cable (Qty 1)
- 201 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 202 Clutch Pigtail (Qty 1)
- 203 OBSOLETE USE 070-5375-00 (Qty 1)
- 215 Rebel, Rogue Ground Wire (Qty 1)
- 218 OBSOLETE use 086-9006-21 (Qty 1)
-
7#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
28#015-0053-00
2017 Yamaha Engine-33hp
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-
28.1#015-0053-02
2017 Yamaha Oil Filter
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
28.2#015-0053-03
2017 Yamaha High Pressure Fuel Pump
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
28.3#015-0053-04
2017 Yamaha Fuel Pump Bracket
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
28.4#015-0053-06
2017 Yamaha Spark Plug
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
28.5#015-0053-21
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
28.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
28.7#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
29#015-0053-01
2017 Yamaha Exhuast Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
30#015-0053-05
2017 Yamaha O2 Sensor
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
36#015-1015-00
2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler
Qty Used: 1Regular price $108.90 USDRegular priceUnit price per
-
55#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
76#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
81#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
94#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
99#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
100#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
149#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
157#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
159#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
175#051-5403-00
Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
176#051-5406-00
2019 Yamaha EFI Oil Drain Adaptor
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
184#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
187#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
202#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
203#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
215#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
218#086-9006-19
OBSOLETE use 086-9006-21
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
