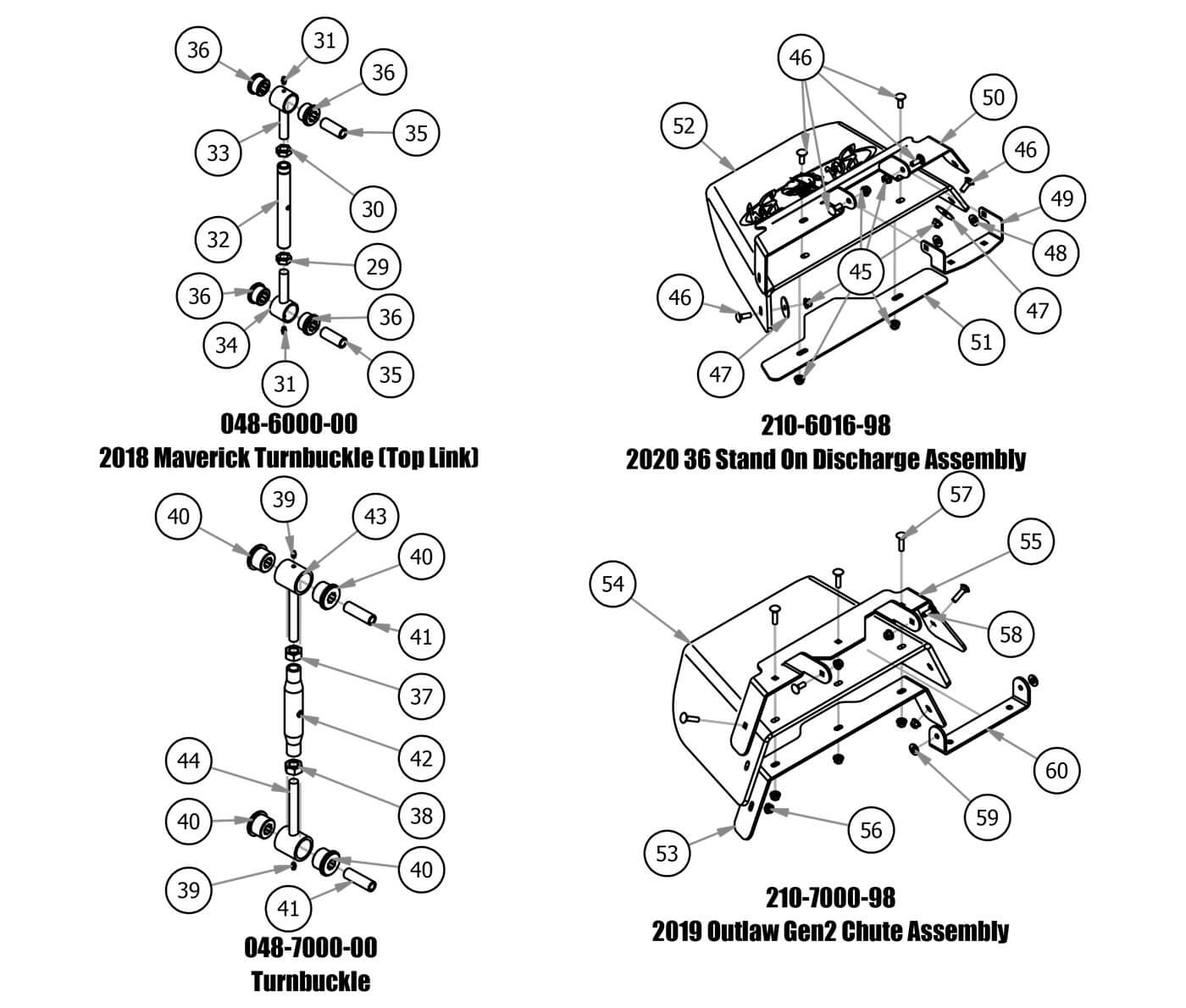

Turnbuckle and Discharge Assembly
Parts Index
- 29 Nut, 5/8-18 RH (Qty 1)
- 30 Nut, 5/8-18 LH (Qty 1)
- 31 1/4-28 Threaded Grease Fitting (Qty 2)
- 32 2018 Maverick Toplink Body (Qty 1)
- 33 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 34 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 35 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 36 2018 Maverick Topllink Bushing (Qty 4)
- 37 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 38 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 39 1/4 Drive-in Grease Fitting (Qty 2)
- 40 Bushing-2015 Outlaw Toplink (Qty 4)
- 41 Sleeve-2015 Outlaw Toplink (Qty 2)
- 42 2015 Outlaw Toplink Body (Qty 1)
- 43 2015 Outlaw Toplink RH End (Qty 1)
- 44 2015 Outlaw Toplink LH End (Qty 1)
- 45 5/16-18 Nylon Flange Nut (Qty 6)
- 46 5/16 x 7/8 Carriage Bolt (Qty 6)
- 47 5/16" Fender Washer (Qty 2)
- 48 .360 ID Plastic Washer (Qty 2)
- 49 2020 36" Chute Hanger Bracket (Qty 1)
- 50 Discharge Chute Bracket 48 MZ (Qty 1)
- 51 OBSOLETE USE 039-4890-00 (Qty 1)
- 52 2017 MZ Discharge Chute Rubber (Qty 1)
- 53 Chute Bracket (lower) (Qty 1)
- 54 Discharge Chute (Rubber Component) (Qty 1)
- 55 Chute Bracket (upper) (Qty 1)
- 56 5/16-18 Nylon Flange Nut (Qty 7)
- 57 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 58 5/16 x 7/8 Carriage Bolt (Qty 2)
- 59 .360 ID Plastic Washer (Qty 2)
- 60 Chute Hanger (Qty 1)
-
29#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
30#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
31#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
32#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
33#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
34#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
35#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
36#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
37#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
38#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
39#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
40#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
41#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
42#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
43#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
44#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
4556#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
4658#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
47#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
4859#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
49#039-0152-00
2020 36" Chute Hanger Bracket
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
50#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
51#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
52#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
53#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-
54#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
55#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
57#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
60#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
