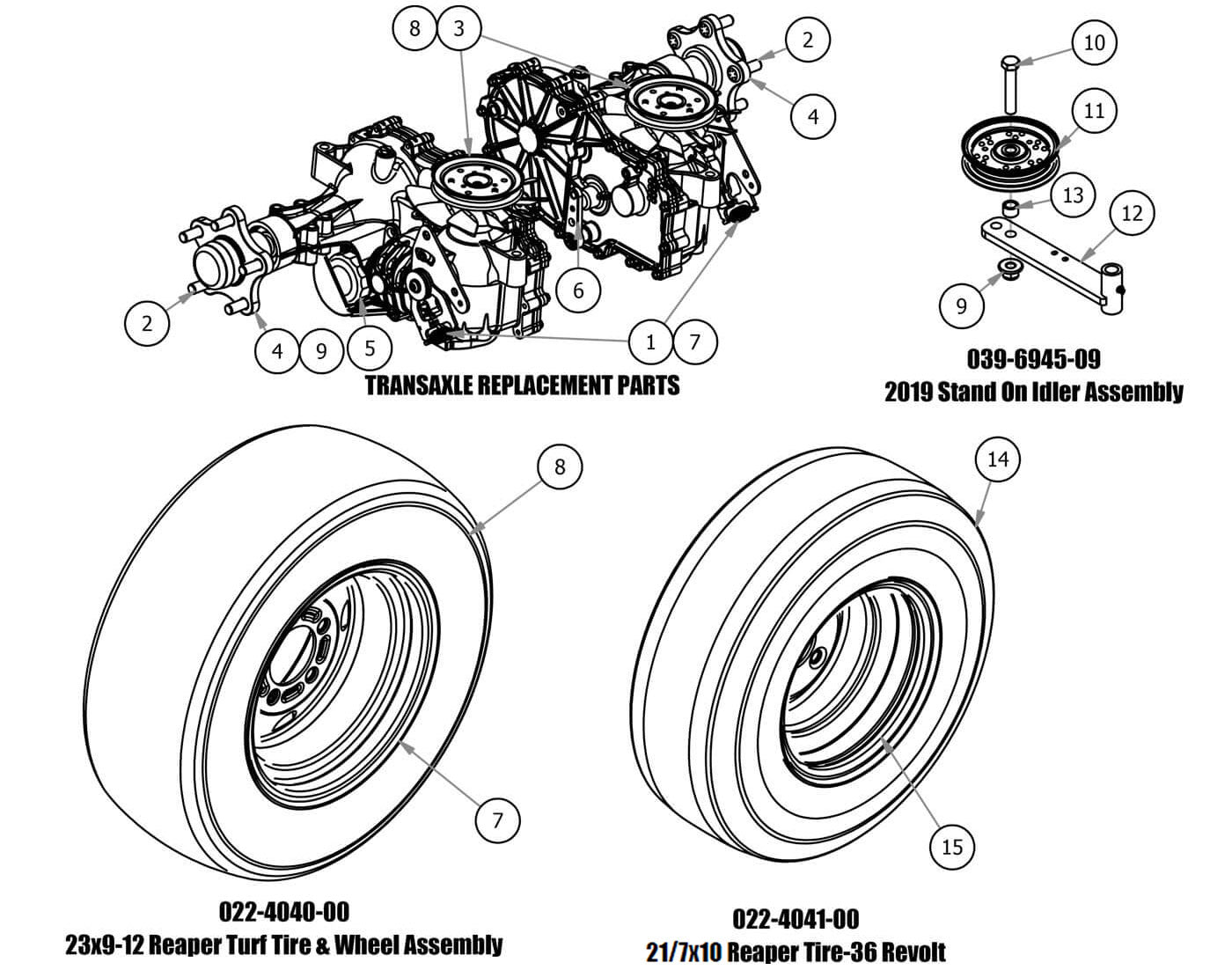

Transaxle Sub Assemblies
Parts Index
- 1 Spring for Stand On Models (Qty 2)
- 2 Transaxle Wheel Studs/ Drum Brake Studs (Qty 10)
- 3 Fan/Pulley Kit for CZT (Qty 2)
- 4 5 Bolt Hub Kit (Qty 2)
- 5 ZT Hydraulic Filter (Qty 2)
- 6 Transaxle Brake Lever (Qty 2)
- 7 Gold Transaxle Spring (Qty 2)
- 7 12x7" Black Wheel-48" EZT Only (Qty 1)
- 8 Fan/Pulley Kit for ZT / 2017 MZ (Qty 2)
- 8 23x9 - 12 Reaper Turf Tire Only (Qty 1)
- 9 ZT Transaxle Wheel Hub (Qty 2)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 12 Idler Bracket (Qty 1)
- 13 1/2 Set Collar w/set collar (Qty 1)
- 14 21x7-10 Reaper Turf Tire Only (Qty 1)
- 15 10 x 7 Black Wheel (Qty 1)
-
1#034-1050-00
Spring for Stand On Models
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
2#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 10Regular price $5.10 USDRegular priceUnit price per
-
3#050-2072-00
Fan/Pulley Kit for CZT
Qty Used: 2Regular price $59.78 USDRegular priceUnit price per
-
4#050-2077-00
5 Bolt Hub Kit
Qty Used: 2Regular price $88.97 USDRegular priceUnit price per
-
5#063-1050-00
ZT Hydraulic Filter
Qty Used: 2Regular price $21.22 USDRegular priceUnit price per
-
6#092-8000-00
Transaxle Brake Lever
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
7#034-9080-00
Gold Transaxle Spring
Qty Used: 2Regular price $13.92 USDRegular priceUnit price per
-
7#022-3011-00
12x7" Black Wheel-48" EZT Only
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
8#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
8#022-4035-00
23x9 - 12 Reaper Turf Tire Only
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
9#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 2Regular price $84.64 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
12#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
13#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
14#022-4042-00
21x7-10 Reaper Turf Tire Only
Qty Used: 1Regular price $92.99 USDRegular priceUnit price per
-
15#022-4043-00
10 x 7 Black Wheel
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
