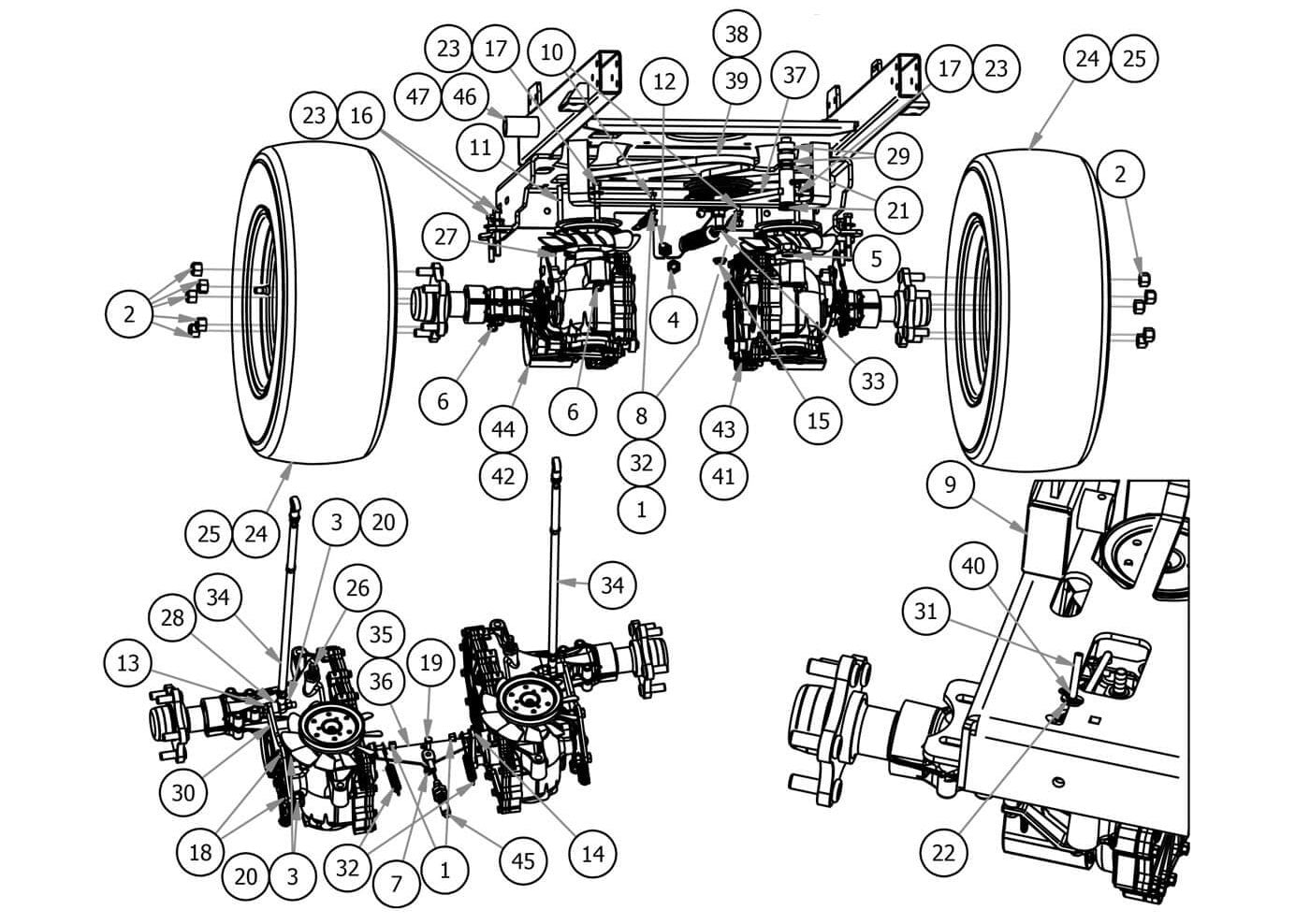

Transaxle Assembly
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 Acorn Lug Nut (Qty 10)
- 3 3/8-16 Hex Nuts Zinc (Qty 6)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 8)
- 7 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 8 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 9 1 1/2x 3 Frame Plug (Qty 2)
- 10 1/4-20 x 2 Hex Bolt (Qty 2)
- 11 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 12 All Thread (Qty 1)
- 13 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 14 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 15 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 16 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 17 5/16 x 2 1/2 Bolt (Qty 2)
- 18 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 19 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 20 3/8 Lockwasher Zinc (Qty 6)
- 21 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 22 1/4 USS Flat Washer Zinc (Qty 2)
- 23 5/16 USS Flat Washer Zinc (Qty 6)
- 24 23x9-12 Reaper Turf Assembly (Qty 2)
- 25 36" Revolt Reaper Wheel Assy. 21x7x10 (Qty 2)
- 26 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 27 2017 Transaxle Spacer (Qty 2)
- 28 ACS Spacer 3/4x3/8x1/2 (Qty 2)
- 29 5/8 Set Collar W/One Set Screw (Qty 2)
- 30 Control Arm Plate--Plated (Qty 2)
- 31 2019 Stand On Neutral Release Rod (Qty 2)
- 32 Brake Spring (Qty 2)
- 33 2015 Deck Idler Spring (Qty 1)
- 34 2019 Stand On Push Rod Assembly (Qty 2)
- 35 2020 36" Brake Bracket--Orange (Qty 1)
- 36 Brake Bracket--Plated (Qty 1)
- 37 2019 Revolt Pump Idler Assembly (Qty 1)
- 38 2019 Renegade / 2020 Revolt - Pump Belt (Qty 1)
- 39 2019 & up Stand On Drive Belt (Qty 1)
- 40 Bow Pin (Qty 4)
- 41 OBSOLETE USE 050-2095-01 (Qty 1)
- 42 OBSOLETE USE 050-2096-01 (Qty 1)
- 43 OBSOLETE USE 050-6000-01 (Qty 1)
- 44 OBSOLETE USE 050-6001-01 (Qty 1)
- 45 Brake Cable Walk Behind/Revolt (Qty 1)
- 46 2019 Stand On Frame--Orange (Qty 1)
- 47 2020 36" Stand On Frame--Orange (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
3#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
7#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
8#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
10#018-0011-00
1/4-20 x 2 Hex Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
11#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
12#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
13#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
14#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
15#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
16#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
17#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
21#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
23#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
24#022-4040-00
23x9-12 Reaper Turf Assembly
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
25#022-4041-00
36" Revolt Reaper Wheel Assy. 21x7x10
Qty Used: 2Regular price $165.99 USDRegular priceUnit price per
-
26#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
27#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
28#025-2004-00
ACS Spacer 3/4x3/8x1/2
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
29#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
No sequence found for SKU:
Control Arm Plate--Plated
Regular price $0.00 USDRegular priceUnit price per
-
31#028-0071-00
2019 Stand On Neutral Release Rod
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
32#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
33#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
34#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
No sequence found for SKU:
2020 36" Brake Bracket--Orange
Regular price $0.00 USDRegular priceUnit price per
-
36#039-0212-00
Brake Bracket--Plated
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
37#039-6945-09
2019 Revolt Pump Idler Assembly
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
38#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
39#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
41#050-2095-00
OBSOLETE USE 050-2095-01
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
42#050-2096-00
OBSOLETE USE 050-2096-01
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
43#050-6000-00
OBSOLETE USE 050-6000-01
Qty Used: 1Regular price $819.99 USDRegular priceUnit price per
-
44#050-6001-00
OBSOLETE USE 050-6001-01
Qty Used: 1Regular price $819.99 USDRegular priceUnit price per
-
45#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
46#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
