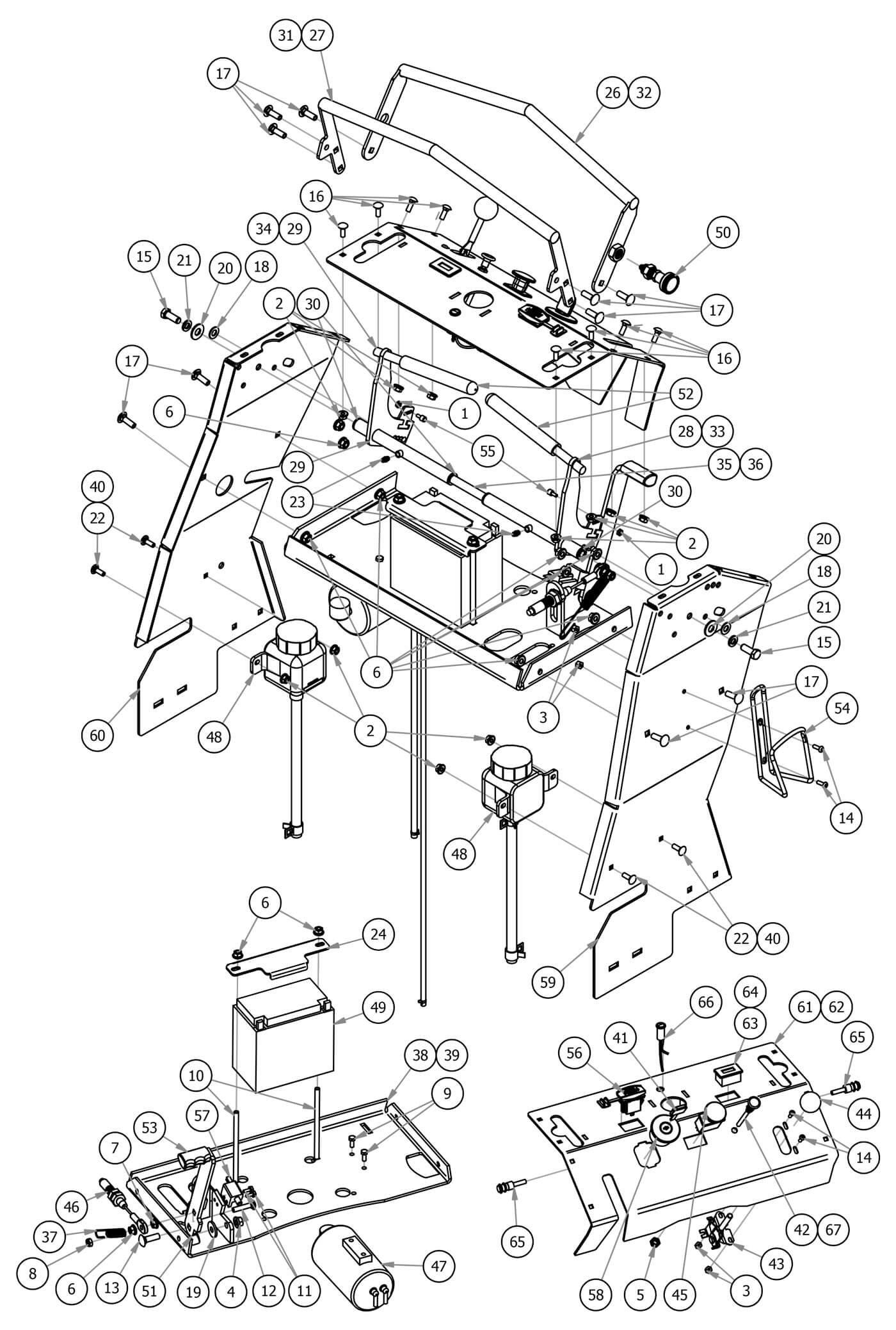

Podium Assembly
Parts Index
- 1 8-32 Hex M/S Nut (Qty 2)
- 2 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 3 10-24 Nylon Insert Locknut Zin (Qty 4)
- 4 3/8 Nylock Flange Nut (Qty 1)
- 5 3/8-24 Hex Nut Zinc (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 13)
- 7 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 8 5/16-18 Nylock Jam Nut (Qty 1)
- 9 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 10 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 11 12-24 x 1/2 HWH Bolt (Qty 2)
- 12 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 13 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 14 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 15 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 16 1/4"X3/4" CARRIAGE BOLT (Qty 8)
- 17 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 18 .390 ID Plastic Washer (Qty 2)
- 19 .390 ID Plastic Washer (Qty 1)
- 20 3/8 USS Flat Washer Zinc (Qty 2)
- 21 3/8 Lockwasher Zinc (Qty 2)
- 22 1/4 x 3/4 Carriage Bolt (Qty 4)
- 23 1/4 Drive-in Grease Fitting (Qty 2)
- 24 Battery Hold Down Plate-Raider--Orange (Qty 1)
- 26 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
- 27 Revolt Rear Control Arm Stop Weldment (Qty 1)
- 28 Revolt RH Drive Arm Actuator Weldment (Qty 1)
- 29 Revolt LH Drive Arm Actuator Weldment (Qty 1)
- 30 Drive Arm Actuator Bushing (Qty 4)
- 31 36" Revolt Rear Control Arm Stop Weldment (Qty 1)
- 32 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 33 36" RH Drive Arm Actuator Weldment--Black (Qty 1)
- 34 36" Revolt LH Drive Arm Actuator Weldment--Black (Qty 1)
- 35 2019 Stand On Drive Pivot Bar (Qty 1)
- 36 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 37 Brake Spring (Qty 1)
- 38 Console Bracket Weldment (Qty 1)
- 39 36" Console Bracket Weldment (Qty 1)
- 40 Ratchet Fastener - Floorboard (Qty 4)
- 41 Ignition Key (Qty 1)
- 42 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 43 Universal Throttle Head - 2012 (Qty 1)
- 44 Throttle / Brake Head Ball (Qty 1)
- 46 Brake Cable Walk Behind/Revolt (Qty 1)
- 47 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 48 2017 ZT Hydro Tank Assembly (Qty 2)
- 49 Revolt Battery (Qty 1)
- 50 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 51 2019 Stand On Brake Handle--Black (Qty 1)
- 52 2019 Revolt Cushioned hand Grip (Qty 2)
- 53 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 54 2019 Stand-On Cup Holder (Qty 1)
- 55 Magnet-Steering Arm-Stand ON (Qty 2)
- 56 USB Port (Qty 1)
- 57 Safety Switch (Qty 1)
- 58 Ignition Switch (Qty 1)
- 59 RH Podium Panel--Orange (Qty 1)
- 60 LH Podium Panel--Orange (Qty 1)
- 61 Podium Front Panel Weldment--Orange (Qty 1)
- 62 36" Podium Front Panel Weldment--Orange (Qty 1)
- 63 Tachometer-N310-0100-1018 (Qty 1)
- 64 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 65 Safety Switch Harness (Qty 2)
- 66 Oil Light (Qty 1)
- 67 MIL Light (Qty 1)
-
54#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
55#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
-
57#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
58#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
59#079-4106-00
RH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
60#079-4111-00
LH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
61#079-4112-00
Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $44.99 USDRegular priceUnit price per
-
62#079-4113-00
36" Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
63#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
64#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
65#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
-
67#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
1#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
3#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
5#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
7#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
8#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
9#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
10#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
11#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
12#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
13#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
14#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#018-8040-00
1/4"X3/4" CARRIAGE BOLT
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
17#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
1819#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
20#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
23#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
24#026-0098-00
Battery Hold Down Plate-Revolt--Orange
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
26#031-0026-00
Revolt Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $57.09 USDRegular priceUnit price per
-
27#031-0027-00
Revolt Rear Control Arm Stop Weldment
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-

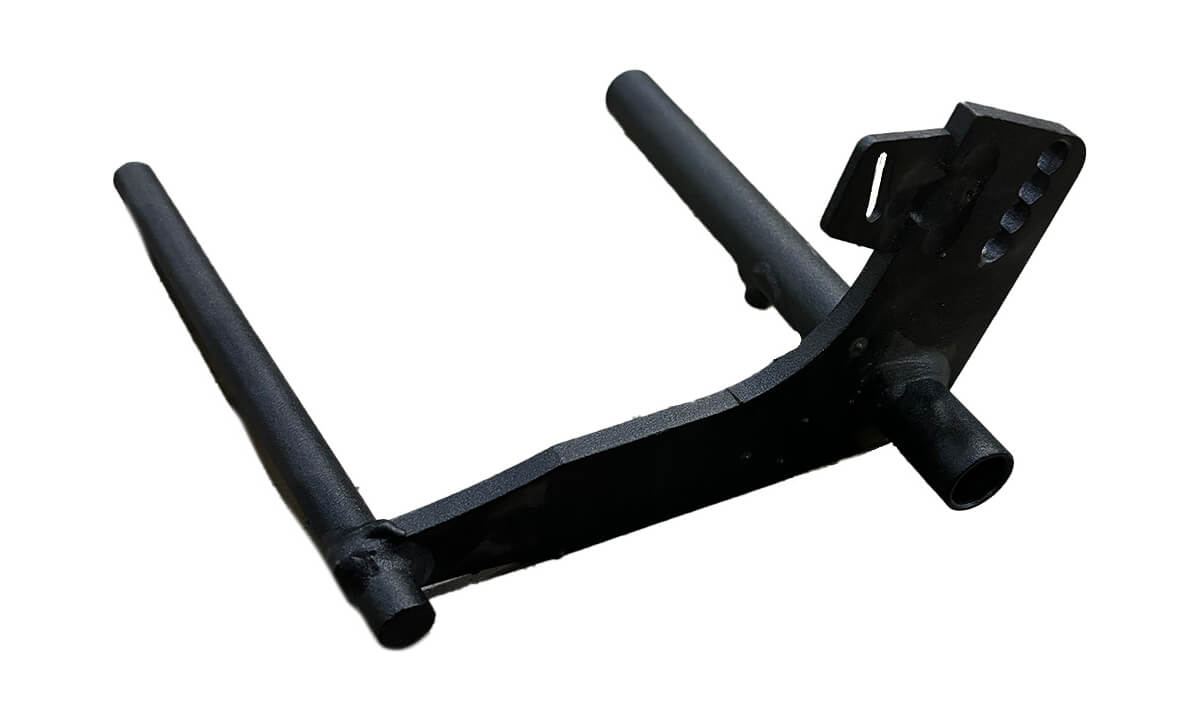

28#031-0028-00
Revolt RH Drive Arm Actuator Weldment
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-

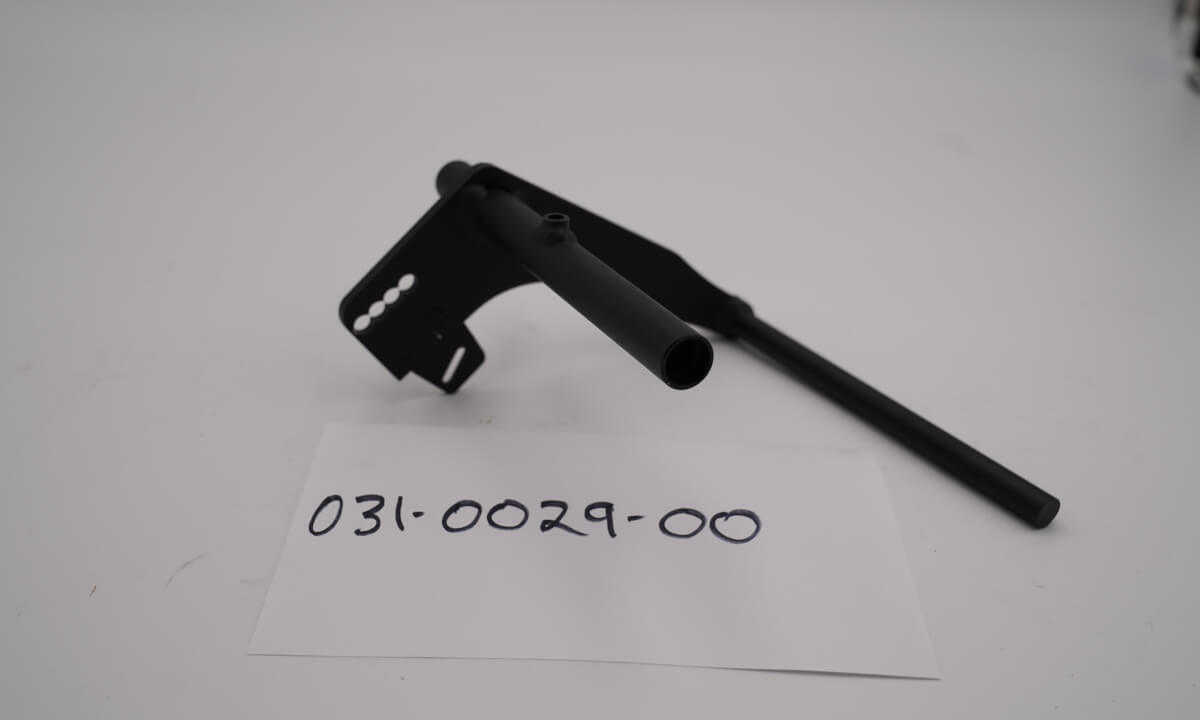

29#031-0029-00
Revolt LH Drive Arm Actuator Weldment
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
30#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 4Regular price $6.62 USDRegular priceUnit price per
-
31#031-0033-00
36\" Revolt Rear Control Arm Stop Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
32#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
33#031-0037-00
36" RH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
34#031-0038-00
36" Revolt LH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
35#031-0091-00
2019 Stand On Drive Pivot Bar
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
36#031-0094-00
2020 36" Stand On Drive Pivot Bar
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
37#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
38#039-0087-00
Console Bracket Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
39#039-0154-00
36\" Console Bracket Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
40#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 4Regular price $2.91 USDRegular priceUnit price per
-
41#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
42#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
43#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
44#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
46#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
47#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
48#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
49#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
50#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
51#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
52#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
53#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
