Kawasaki FX-691

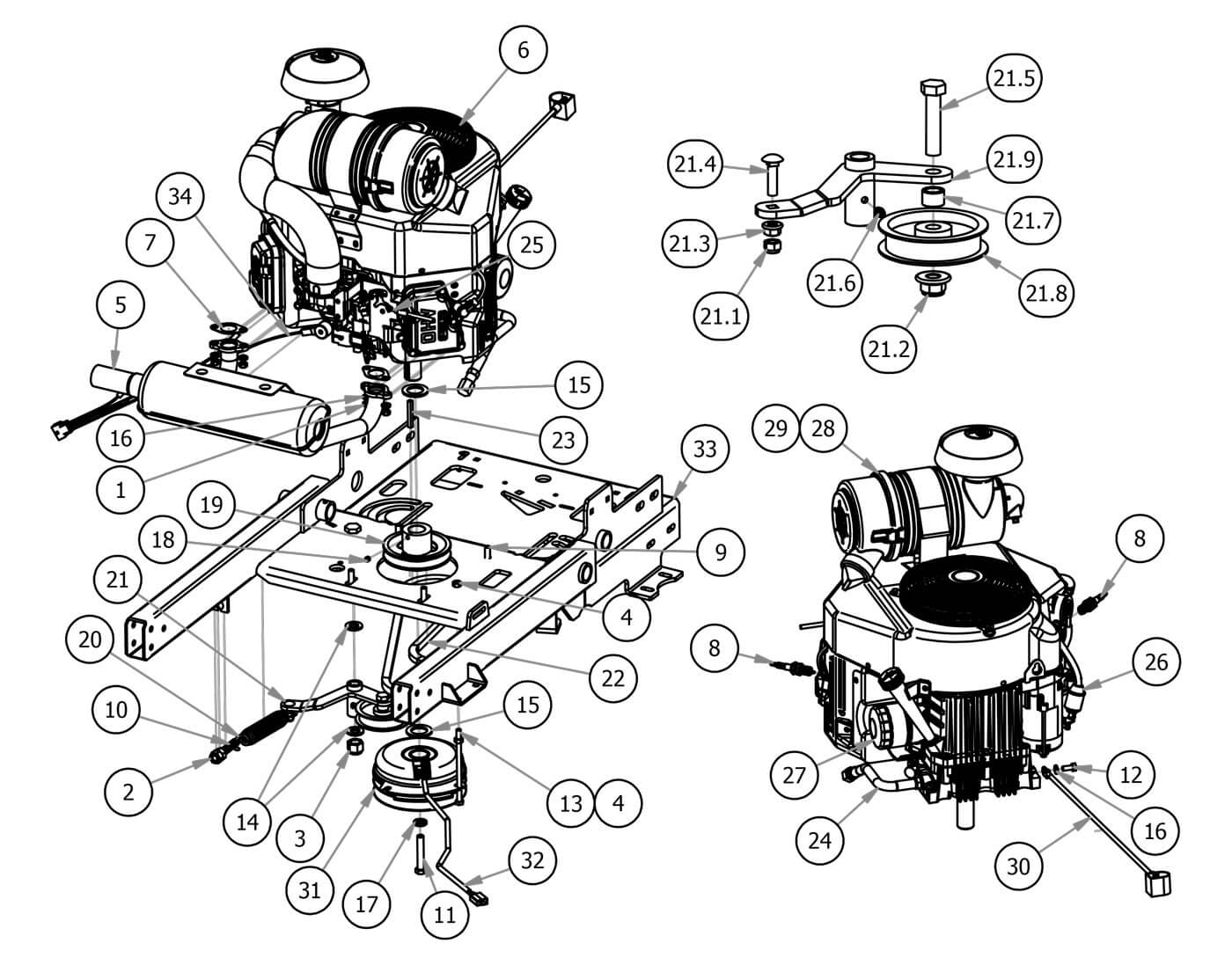

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 1/2-13 Hex Nuts Zinc (Qty 2)
- 3 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 4 5/16-18 Hex Nuts Zinc (Qty 2)
- 5 Exhaust-Stand On-FX691V Kawasaki (Qty 1)
- 6 FX691 Kawasaki (Qty 1)
- 7 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 8 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 9 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 10 All Thread (Qty 1)
- 11 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 12 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 13 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 14 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 15 1.140x1.750x .132 Flat Washer (Qty 2)
- 16 5/16 Lock washer Zinc (Qty 6)
- 17 7/16 Lock washer zinc (Qty 1)
- 18 5/16-24 x 1/4 Set Screw (Qty 1)
- 19 4 3/4 Motor Pulley (Qty 1)
- 20 2015 Deck Idler Spring (Qty 1)
- 21 2020 36" Stand On Drive Pulley Assembly (Qty 1)
- 21.1 5/16-18 Nylon Insert Locknut Z (Qty 1)
- 21.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21.3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 21.4 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 21.5 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 21.6 1/4 Drive-in Grease Fitting (Qty 1)
- 21.7 1/2 Set Collar w/set collar (Qty 1)
- 21.8 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 21.9 2020 36" Pump Idler Weldment--Plated (Qty 1)
- 22 2019 Renegade / 2020 Revolt - Pump Belt (Qty 1)
- 23 1/4 X 2 Square Key Stock (Qty 1)
- 24 Kawasaki Oil Drain (Qty 1)
- 25 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 26 Universal Inline Fuel Filter (Qty 1)
- 27 Kawasaki Oil Filter (Qty 1)
- 28 Canister Air Fil Outer2010&Old (Qty 1)
- 29 Canister Air Filter - Inner (Qty 1)
- 30 24 inch Black Cable - MZ/ZT (Qty 1)
- 31 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 32 Clutch Pigtail (Qty 1)
- 33 2020 36" Stand On Frame--Orange (Qty 1)
- 34 Harness Adaptor-FX691, FX730 HD (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
4#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#015-0692-00
Exhaust-Stand On-FX691V Kawasaki
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
6#015-0691-00
FX691 Kawasaki-2016 Compact Outlaw
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
7#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
8#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
10#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
11#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
12#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
13#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
14#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
16#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
17#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
19#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
20#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
21#039-6947-20
2020 36" Stand On Drive Pulley Assembly
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
21.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
21.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21.3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
21.4#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
21.5#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21.6#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
21.7#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
21.8#033-1876-00
2019 Renegade Horizontal Pump Pulley
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
21.9#039-6947-00
2020 36" Pump Idler Weldment--Plated
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
22#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
23#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
24#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
25#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
26#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
27#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
28#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
29#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
30#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
32#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
34#086-9002-00
Harness Adaptor-Outlaw FX-All
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
