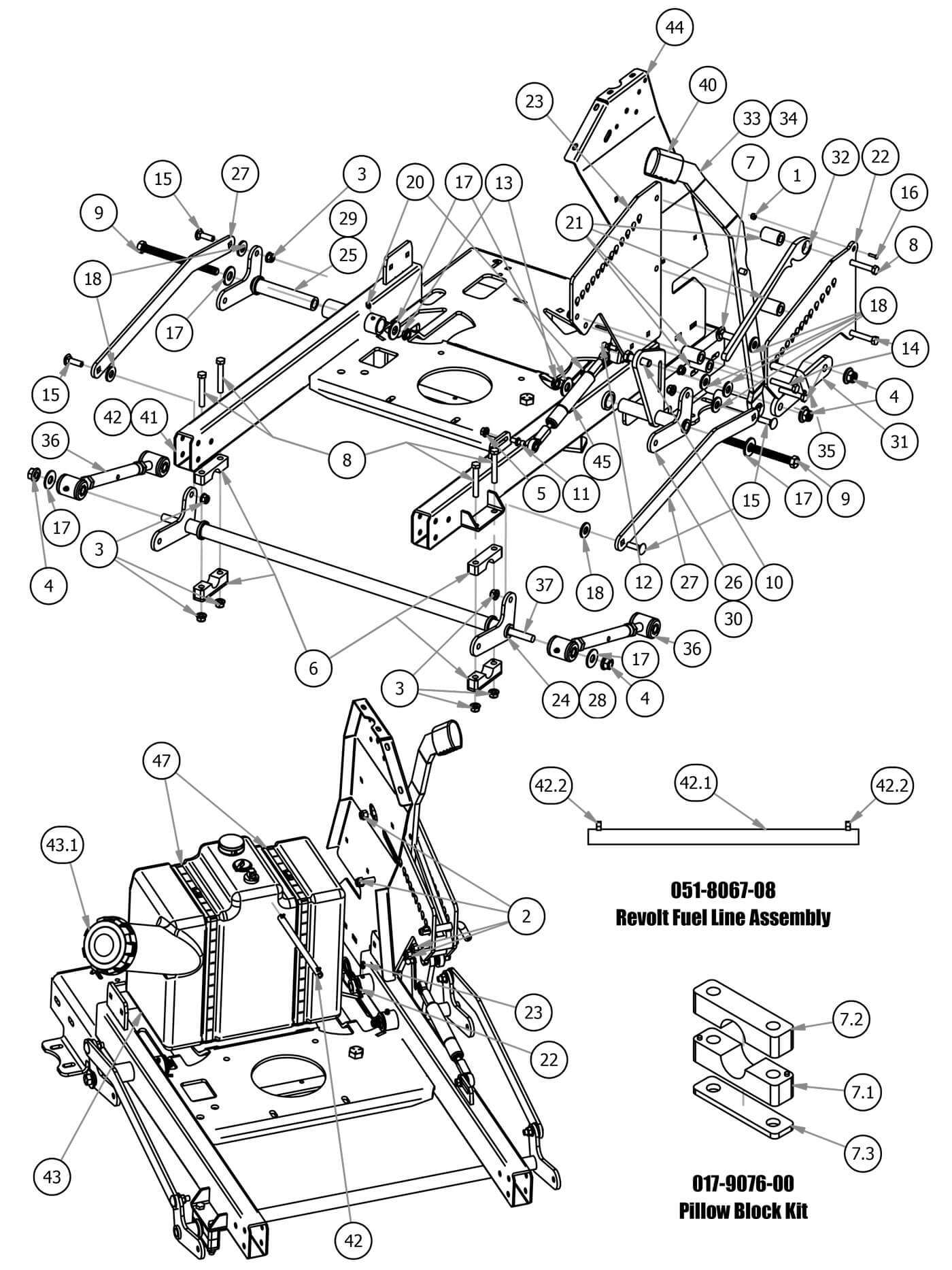

Deck Height Lever Assembly
Parts Index
- 1 10-24 Nylon Insert Locknut Zin (Qty 1)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 4)
- 3 3/8 Nylock Flange Nut (Qty 8)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 5 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 6 Pillow Block (Qty 2)
- 7 1/2 x 1 1/2 Carriage Bolt (Qty 1)
- 8 3/8x2 1/2" Hex Bolt (Qty 7)
- 9 1/2-13 x 6 1/2 Hex Bolt Grade 5 (Qty 2)
- 11 10mm Damper Ball Stud- (Qty 1)
- 12 10mm Ball Stud (Long Thread) (Qty 1)
- 13 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 14 3/8-16 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 15 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 16 10-24 X 5/8 BS C/S 18-8 SS (Qty 1)
- 17 1/2 Flat Washer (Qty 6)
- 18 .505 ID X 1 OD X .128 THK Washer (Qty 7)
- 21 .502 ID X 1.000 0D X 1.500 (Qty 4)
- 22 Outer Adjustment Plate--Orange (Qty 1)
- 24 Revolt Front Actuator Bar Weldment (Qty 1)
- 25 Rear Actuator Bar Weldment-RH (Qty 1)
- 26 Rear Actuator Bar Weldment-LH (Qty 1)
- 27 Revolt Actuator Linkage-BLACK (Qty 2)
- 28 Revolt Front Actuator Bar Weldment--Black (Qty 1)
- 29 Revolt Rear Actuator Bar Weldment-RH--Black (Qty 1)
- 31 Lever Secondary Linkage--Black (Qty 1)
- 32 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 33 2019 Stand On Deck Lift Lever (Qty 1)
- 34 2020 36" Stand On Deck Lift Lever (Qty 1)
- 35 Pin and Lanyard( 1/2 X 2 ) (Qty 1)
- 36 Toplink (Qty 2)
- 37 2020 36" Stand On Turnbuckle Rod (Qty 1)
- 38 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 39 Stand-On/Revolt Fuel Tank (Qty 1)
- 39.1 Fuel Kelch Cap - 3.5 Neck (Qty 0)
- 40 Grip (Deck Lift) (Qty 1)
- 41 2019 Stand On Frame--Orange (Qty 1)
- 42 2020 36" Stand On Frame--Orange (Qty 1)
- 43 Band 13.5" (Qty 2)
- 44 LH Podium Panel--Orange (Qty 1)
- 45 Dampener (200lbs) (Qty 1)
- 7.1 2017 Magnum Pillow Block-Male (Qty 1)
- 7.2 2017 Magnum Pillow Block-Female (Qty 1)
- 7.3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 42.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 42.2 1/4 Fuel Line Clamp (Qty 2)
-
1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
5#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#017-9076-00
Pillow Block
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
7#018-0008-00
1/2 x 1 1/2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
8#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 7Regular price $3.99 USDRegular priceUnit price per
-
9#018-0038-00
1/2-13 x 6 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
11#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
12#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
13#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
14#018-4700-00
3/8-16 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
15#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
16#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#019-2040-00
1/2 Flat Washer
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
18#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
21#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
22#026-0082-00
Outer Adjustment Plate--Orange
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
24#028-0028-00
Revolt Front Actuator Bar Weldment
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
25#028-0029-00
Rear Actuator Bar Weldment-RH
Qty Used: 1Regular price $102.16 USDRegular priceUnit price per
-
26#028-0030-00
Rear Actuator Bar Weldment-LH
Qty Used: 1Regular price $102.16 USDRegular priceUnit price per
-
27#028-0033-00
Revolt Actuator Linkage-BLACK
Qty Used: 2Regular price $9.28 USDRegular priceUnit price per
-
28#028-0036-00
Revolt Front Actuator Bar Weldment--Black
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
29#028-0037-00
Revolt Rear Actuator Bar Weldment-RH--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
31#028-5001-00
Lever Secondary Linkage--Black
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
32#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
33#031-7146-00
2019 Stand On Deck Lift Lever
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
34#031-7148-00
2020 36" Stand On Deck Lift Lever
Qty Used: 1Regular price $69.95 USDRegular priceUnit price per
-
35#040-4001-00
Pin and Lanyard( 1/2 X 2 )
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
-
37#048-6058-00
2020 36" Stand On Turnbuckle Rod
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
3842.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
39#067-0030-00
Stand-On/Revolt Fuel Tank
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
39.1#066-8076-00
Fuel Kelch Cap - 3.5 Neck
Qty Used: 0Regular price $29.95 USDRegular priceUnit price per
-
40#069-4012-00
Grip (Deck Lift)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
41#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
43#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
44#079-4111-00
LH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
45#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
7.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
7.2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
7.3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
42.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
