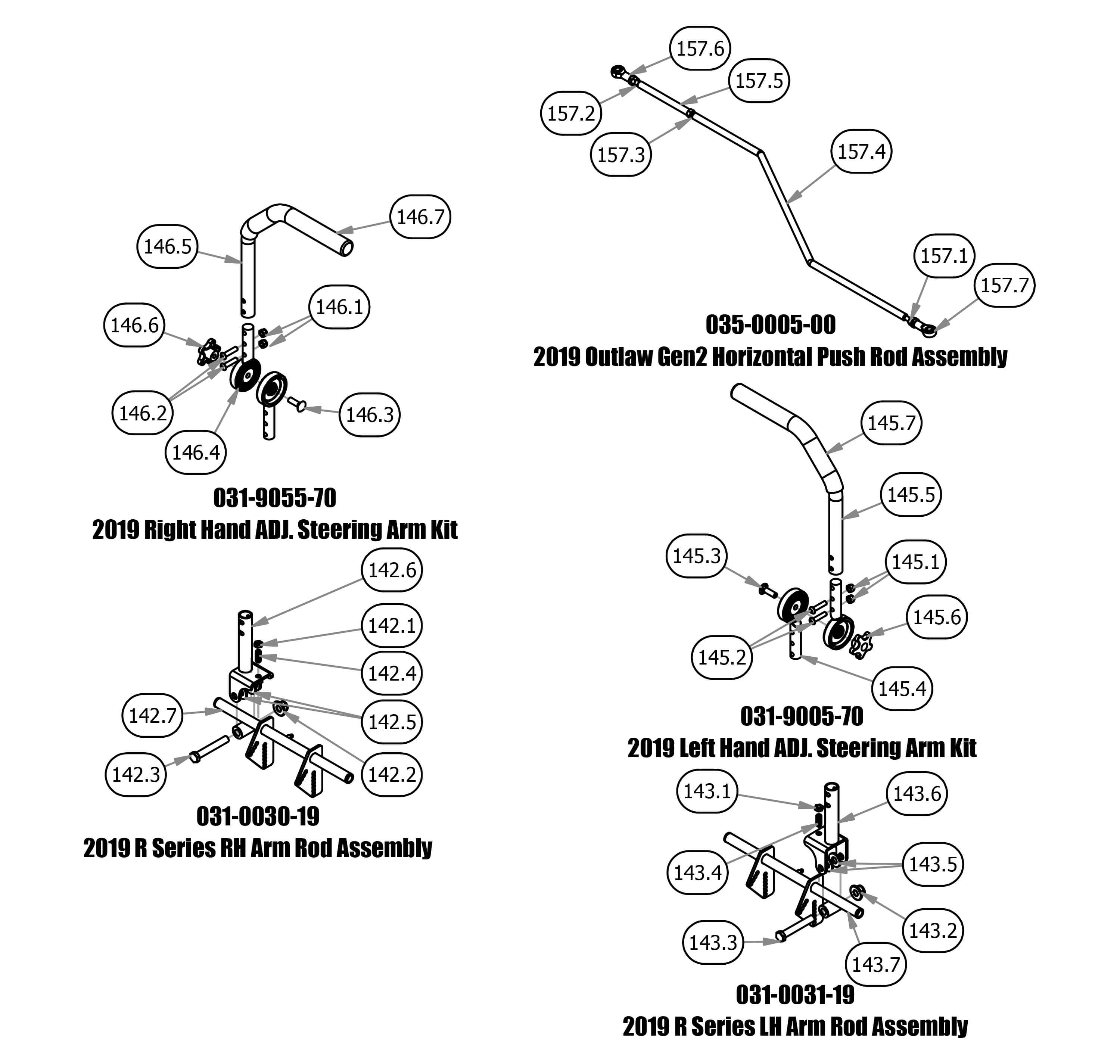

Steering Arms & Push Rods
Parts Index
- 146.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 146.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 146.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 146.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 146.5 2019 Steering Arm Tube (Qty 1)
- 146.6 Knob - Adjustable Steering Arm (Qty 1)
- 146.7 Black Steering Grip (Qty 1)
- 142.1 3/8-16 Half Jam Nut (Qty 1)
- 142.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 142.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 142.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 142.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 142.6 Drive Arm Pivot (Qty 1)
- 142.7 Drive Arm Actuator RH (Qty 1)
- 157.1 5/16 RH Nut (Qty 1)
- 157.2 5/16 LH Nut (Qty 1)
- 157.3 3/8-24 Hex Nut Zinc (Qty 1)
- 157.4 2019 Outlaw Gen2 Horizontal Push Rod (Qty 1)
- 157.5 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 157.6 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 157.7 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
- 145.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 145.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 145.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 145.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 145.5 2019 Steering Arm Tube (Qty 1)
- 145.6 Knob - Adjustable Steering Arm (Qty 1)
- 145.7 Black Steering Grip (Qty 1)
- 143.1 3/8-16 Half Jam Nut (Qty 1)
- 143.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 143.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 143.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 143.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 143.6 Drive Arm Pivot (Qty 1)
- 143.7 Drive Arm Actuator LH (Qty 1)
-
146.1145.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
146.2145.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
146.3145.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
146.4145.4#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
146.5145.5#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
146.6145.6#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
146.7145.7#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
142.1143.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
142.2143.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
142.3143.3#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
142.4143.4#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
142.5143.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
142.6143.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
142.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
157.1#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
157.2#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
157.3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
157.4#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
157.5#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
157.6#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
157.7#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
143.7#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
