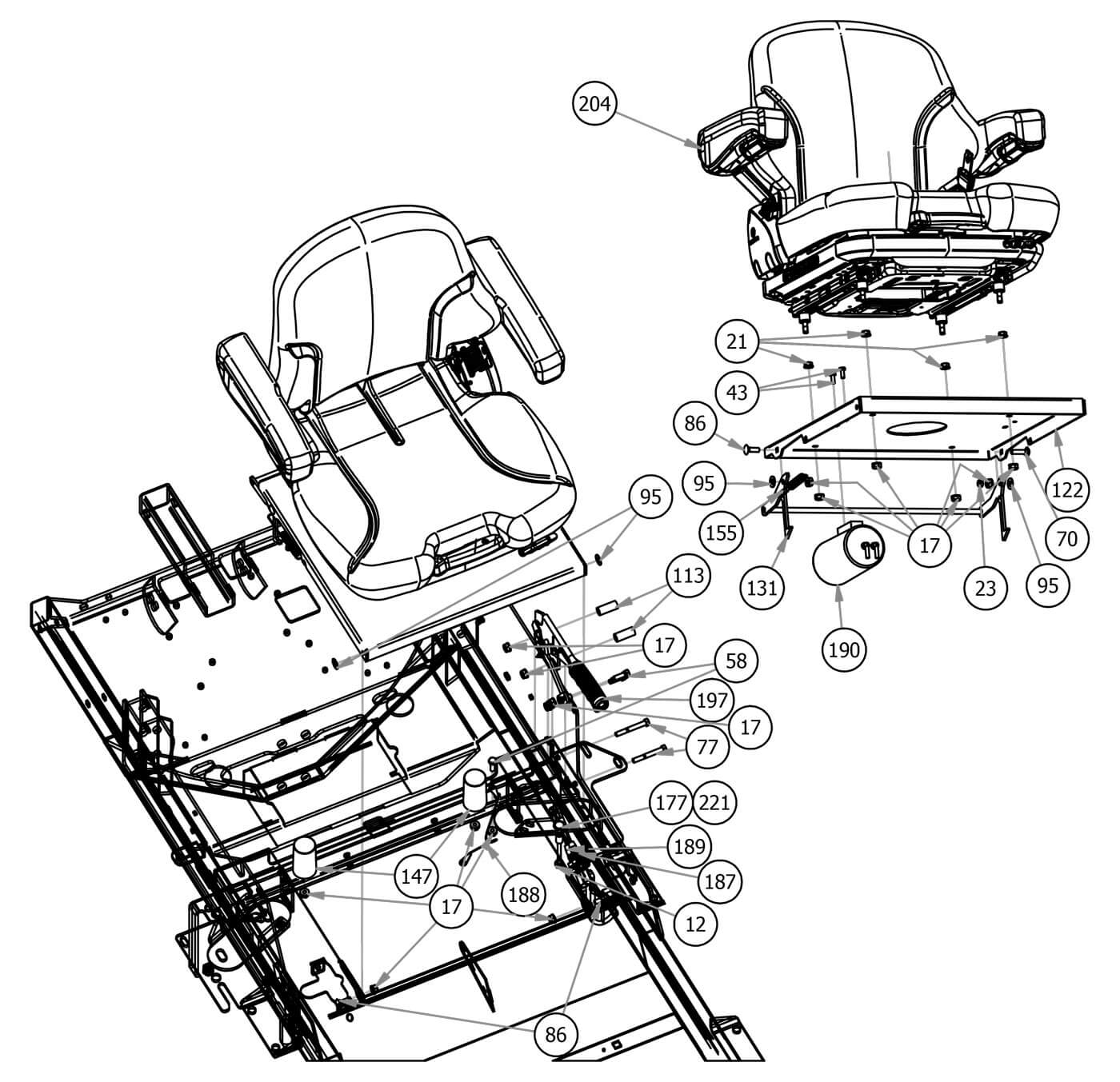

Seat & Brake
Parts Index
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 16)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 23 5/16-18 Nylock Jam Nut (Qty 1)
- 43 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 58 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 70 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 77 5/16 x 2 1/2 Bolt (Qty 2)
- 86 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 95 .360 ID Plastic Washer (Qty 4)
- 113 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 122 Seat Plate--Orange (Qty 1)
- 131 Seat Latch Rod (Qty 1)
- 147 Bumper (Seat) (Qty 2)
- 155 Brake Spring (Qty 1)
- 177 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 187 2019 Short Brake Cable-Suspension Models (Qty 1)
- 188 Seat Cable (Qty 1)
- 189 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 190 2019 R-Series EPA Cannister Assembly (Qty 1)
- 197 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 203 2019 Horizontal Gas Frame--Orange (Qty 1)
- 204 2019 Renegade Gas/Diesel Seat with Seatbelt (Qty 1)
- 221 MIL Light (Qty 1)
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 16Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
23#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
43#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
58#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
70#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
77#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
86#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
95#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
113#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
122#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
131#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
147#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
155#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
177#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
187#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
188#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
189#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
190#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
197#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
203#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
204#071-5065-00
2019 Renegade Gas/Diesel Seat with Seatbelt
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
221#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
